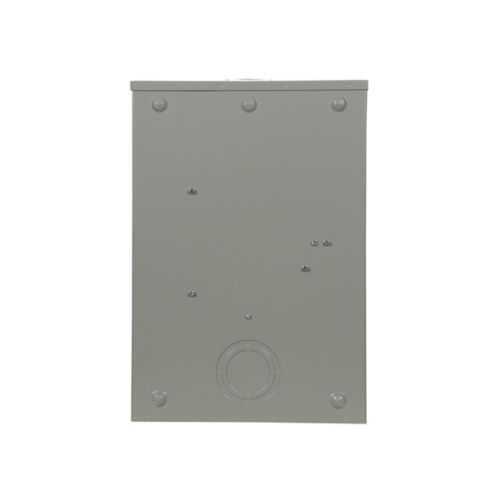

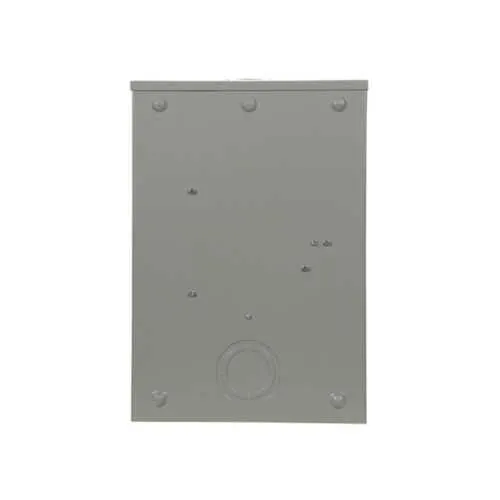

Eaton UTTE5213BCH Meter Socket 200A, 600 Vac, Lever Bypass
Part Number: UTTE5213BCH
Quick Summary
The Eaton UTTE5213BCH meter socket is a reliable 1-phase 200A service device designed for commercial or residential applications. Installers often wrestle with space constraints, top/bottom feed routing, and maintenance downtime, and this unit helps address those challenges with a compact footprint and a lever bypass for safe, swift servicing. While exact certifications vary by market, Eaton provides manufacturer-backed compliance documentation and utility approvals where applicable, with typical pathways aligning to regional requirements. In addition to robust electrical performance, this meter socket supports Ameren utility notes and standard industry practices, enabling smoother interconnection, faster commissioning, and predictable lifecycle costs for engineering teams and procurement groups.
Product Information
Extended Description
UTTE5213BCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Small Hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTE5213BCH
UPC
786685950594
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Catalog Notes
Ameren, Union Electric, Central Illinois Public
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Utility approvals
IL : Ameren MO : Ameren
Feature → 1-Phase 200A service with 600 Vac rating → Business Impact: Supports typical residential and light commercial loads with a robust, code-compliant foundation for service feeders → Application: New installs and service upgrades in 1-ph, 200A configurations. The UTTE5213BCH handles top/bottom feed arrangements, expanding installation flexibility and reducing field modifications, which translates to faster deployment and fewer on-site surprises for project teams. 2/ Lever bypass feature → Business Impact: Reduces maintenance downtime and simplifies safe de-energization during servicing → Application: Quick, safe access for meter testing, fuse changes, or component swaps without prolonged outages. 3/ Large conductor compatibility and 5-jaw design → Business Impact: Supports heavy feeders (#6-350 kcmil) for high-capacity services with secure, low-resistance connections → Application: Commercial or residential feeders requiring quadplex configurations and reliable terminations. 4/ Grounding and ringless 3-wire capability → Business Impact: Improves fault path integrity and simplifies installation with fewer grounding iterations → Application: Safer installations in multi-tenant or shared-meter environments. 5/ Compact footprint and accessible dimensions → Business Impact: Easier wall/floor mounting in restricted spaces, reducing enclosure requirements and labor costs → Application: Retrofit projects and new builds with space constraints. 6/ Utility approvals and Ameren notes → Business Impact: Streamlines interconnection and reduces approval cycles when meeting local utility requirements → Application: Utility-driven installations and region-specific service upgrades.
Get a Quick Quote for a Eaton UTTE5213BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTE5213BCH?
Enquire Now
FAQs
The UTTE5213BCH is a 1-phase, 200A meter socket designed for commercial or residential service. It supports top/bottom feed, 5-jaw terminations, and ringless 3-wire configurations, aligning with Ameren utility notes and typical regional interconnection requirements. Verify local utility guidelines and ensure conductor sizing matches #6-350 kcmil, then coordinate with the utility for configuration approval and service connection readiness.
Key specs include 200A amperage rating, 1-phase operation, 600 Vac maximum voltage, top/bottom feed capability, 5-jaw connectors, compatibility with #6-350 kcmil conductors, quadplex and ringless 3-wire configuration, and lever bypass for maintenance. The unit weighs about 25 lb and measures roughly 19" H x 13" W x 4.94" D, with a 1-position commercial or residential service design.
Yes. The UTTE5213BCH supports both top and bottom feed configurations, providing installation flexibility for a range of meter enclosures and utility requirements. This capability reduces field modifications, speeds up commissioning, and simplifies routing in constrained spaces while maintaining compliance with 1-ph 200A service standards.
Certification details are provided by Eaton and vary by market. The UTTE5213BCH supports standard utility interconnection practices (e.g., Ameren notes) and commonly referenced regulatory pathways such as UL/CE equivalents where applicable. For specific certifications in your region, request the manufacturer’s documented compliance package and verify with your local authority having jurisdiction.
Lever bypass reduces maintenance downtime by enabling safe, rapid servicing without full de-energization. The 200A rating supports scalable loads, while the compact dimensions simplify installation and retrofit. The unit’s warranty terms, coupled with robust grounding (two copper grounding connections) and durable construction, contribute to lower lifecycle costs and faster return on investment for facility upgrades and new builds.
