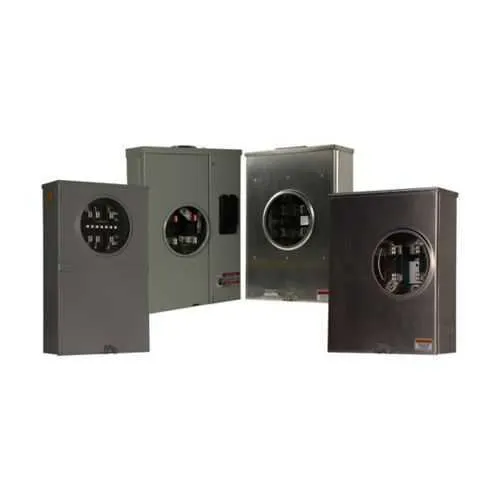

Eaton UTTE5213CCH Meter Socket - 600 V, Ringless
Part Number: UTTE5213CCH
Quick Summary
The Eaton UTTE5213CCH meter socket provides reliable service connections for 200A single-position commercial or residential installations. Many engineers struggle with voltage fluctuations, improper grounding, and noncompliant disconnects that drive outages and maintenance costs. Utility approvals include Ameren IL and Ameren MO, supporting interconnection compliance, while Eaton’s warranty (policy 25-000) offers installation and post-install support. This product’s versatile design, including lever bypass and ringless construction, reduces field errors and simplifies maintenance, delivering long-term value. By supporting top/bottom feed and large-kcmil conductors, it enables scalable service upgrades for both new builds and retrofit projects, making it a dependable choice for utility-coordinated metering in mixed commercial and residential applications.
Product Information
Extended Description
UTTE5213CCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Small hub closing plate mounted, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTE5213CCH
UPC
786685954776
Product Length/Depth
4.93 in
Product Height
19 in
Product Width
13 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Catalog Notes
Ameren, Union Electric, Central Illinois Public
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Utility approvals
IL : Ameren MO : Ameren
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Feature: 200A, single-position commercial or residential service. Business Impact: Enables robust service connections for standard loads with a scalable platform. Application: Ideal for new builds and upgrades in both commercial and residential settings, supporting reliable meter-in service. Feature: Ringless, 3-wire, 600V rating. Business Impact: Enhances safety during maintenance and reduces enclosure contact exposure. Application: Suitable for modernized metering where clean disconnects are required. Feature: Lever bypass. Business Impact: Simplifies on-site maintenance and load-shedding procedures without full disconnection. Application: Service upgrades and routine inspections in regulated facilities. Feature: Top/bottom feed with #6-350 kcmil line/load. Business Impact: Delivers flexible installation and capability for large feeders, minimizing rework. Application: Commercial feeders and high-capacity residential services. Feature: 5-jaw configuration and two grounding connections (#14-#2 Cu). Business Impact: Ensures secure connections and robust grounding paths, reducing fault risk. Application: Heavy-load installations and multi-wire balancing in mixed-use facilities. Feature: Compact footprint (19 in height, 13 in width) and 21 lb weight. Business Impact: Easier handling and installation in space-constrained locations. Application: Retrofit projects and tight utility rooms. Feature: Warranty and approvals. Business Impact: Reduces ownership risk with a clear service policy and Ameren regional approvals. Application: Procurement for regulated utility interconnections and long-term ownership.
Get a Quick Quote for a Eaton UTTE5213CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTE5213CCH?
Enquire Now
FAQs
Install requires planning for 200A service using #6-350 kcmil conductors. Connect line and load per the Eaton spec, configure top or bottom feed, and secure the ringless enclosure. Ensure grounding with the two Cu connections and follow Ameren IL/MO interconnection guidelines. Use the lever bypass for safe maintenance without full disconnection.
The UTTE5213CCH provides a 200A ampacity, 600 V voltage rating, and a 3-wire, single-phase configuration. It uses ringless construction with a lever bypass and supports #6-350 kcmil conductors on both line and load, enabling safe, high-capacity residential or commercial metering with reliable grounding.
Yes. It is designed for single-position commercial or residential service, with Ameren IL/MO approvals and a compact footprint. The top/bottom feed and large conductor capacity support upgrades in both new builds and retrofit projects, making it a versatile choice for mixed-use properties requiring dependable metering.
The UTTE5213CCH lists Ameren IL and Ameren MO utility approvals, aiding interconnection compliance. Compliances and Certifications are specified as provided by the manufacturer, so always verify current documentation with Eaton for specific UL/CE or regional certifications applicable to your project.
Eaton provides a warranty under policy 25-000, covering one year from installation or eighteen months from shipment, whichever occurs first. This reduces long-term risk and downtime costs. Combined with Ameren approvals and robust construction, the UTTE5213CCH supports predictable maintenance cycles and improved total cost of ownership for metering infrastructure.
