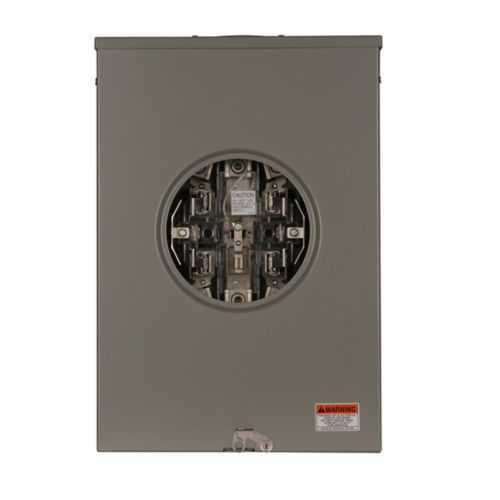

Eaton UTTE5213TCH Meter Socket - 200A UL Listed
Part Number: UTTE5213TCH
Quick Summary
Eaton meter socket UTTE5213TCH is a reliable single‑phase service point designed for commercial or residential metering. This unit delivers a robust 200A capacity with a 600V rating, enabling safe, code-compliant connections for demanding loads. Installing meters in ringless, lever-bypass configurations reduces service interruptions and simplifies maintenance. The design supports top or bottom feed, five-jaw connections, and #6-350 kcmil conductors, delivering flexible wiring for varied utility requirements. It carries UL Listed certification and is approved by Ameren in Illinois and Missouri, helping streamline utility coordination and inspections. For engineers and specifiers, this meter socket provides a balance of compact footprint and straightforward installation, while enabling scalable metering for future growth and higher demand.
Product Information
Extended Description
UTTE5213TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, 5x5 inch hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTE5213TCH
UPC
786685351339
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
IL : Ameren MO : Ameren
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTTE5213TCH
200A, 600V single‑phase design delivers a robust service point for demanding residential and light commercial metering. The UTTE5213TCH supports large conductors up to #6-350 kcmil, enabling high-capacity connections without compromising safety or reliability. This meter socket is engineered for commercial or residential service, providing a straightforward path from installation to long-term operation. The top or bottom feed option offers flexibility for varied wiring layouts, reducing rework during commissioning and upgrades. By aligning with UL Listed standards, Ameren IL and Ameren MO approvals, it streamlines inspections and minimizes project risk. Lever bypass simplifies maintenance by allowing service interruption-free bypassing without disconnecting the main conductors. The ringless design further enhances safety by avoiding metal contact schemes that can trap live parts during routine checks. Installers benefit from a predictable mounting footprint and 5x5 hub opening that fits common enclosure configurations. The five-jaw connection and three-wire configuration reduce mis-wiring incidents and support consistent performance across installations. These features translate into faster commissioning and lower field callouts, contributing to lower total cost of ownership for utilities and builders. Compatibility with a wide conductor range means fewer SKUs for procurement and easier stock management for distributors. The device accommodates #6-350 kcmil feeders, supporting both service entrances and meter risers in retrofit projects. Its compact 4.94 inch depth, 13 inch width, and 19 inch height help fit tighter spaces in existing corridors and mechanical rooms. The lever bypass also contributes to safer isolation during maintenance windows, reducing risk for technicians and customers. Using this meter socket can shrink project schedules by eliminating last-minute wiring accommodations and rework. UL Listed certification and Ameren approvals reinforce compliance across markets, while a one-year warranty from Eaton adds risk protection. The combination of reliability, serviceability, and approved electrical specifications supports a clear business case for meter installation programs and upgrade cycles. In practice, utilities report fewer outages and quicker meter swaps when using standardized, UL-listed metering hardware.
Get a Quick Quote for a Eaton UTTE5213TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTE5213TCH?
Enquire Now
FAQs
The UTTE5213TCH supports #6 to 350 kcmil conductors in a three-wire, single-phase configuration with top or bottom feed and a five-jaw connection. Plan for a 4.94 in depth clearance and use the 5 x 5 hub opening in the enclosure. The ringless, lever-bypass design improves safety during commissioning and maintenance.
It is rated for 200 A continuous service at up to 600 V, with a single-phase, three-wire arrangement and a five-jaw socket. These specifications enable reliable service deliveries for moderate loads and support clean, low-loss connections. The UL Listed status further assures compliance with safety standards, while the 5x5 hub and top/bottom feed options provide flexible installation.
Yes. Ameren IL and Ameren MO approvals indicate the UTTE5213TCH meets market-specific utility requirements, facilitating faster procurement and inspection. Its UL Listed certification and utility acceptances help reduce on-site calibration time and potential rework, making it suitable for new installations or service upgrades in those markets.
Certifications include UL Listed and Ameren approvals (IL and MO). These credentials help ensure conformity to national safety standards and regional utility guidelines, supporting smoother inspections and adherence to project timelines. This combination minimizes risk during deployment and enhances cross-site consistency for metering programs.
The lever bypass and ringless design reduce maintenance downtime and service calls. Coupled with UL Listed certification, Ameren approvals, and a one-year Eaton warranty, this meter socket lowers lifecycle costs by speeding commissioning, reducing field visits, and mitigating noncompliance risks. It supports scalable metering programs across portfolios with predictable maintenance needs.
