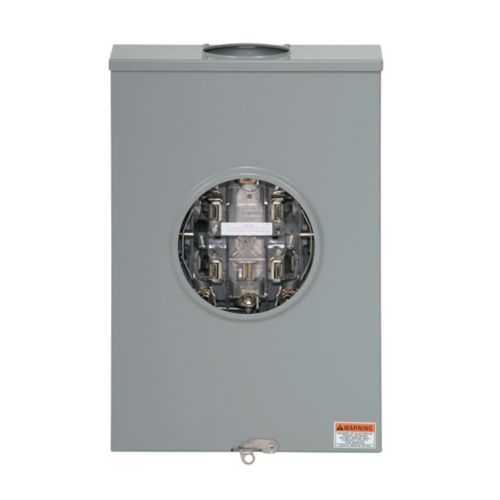

Eaton UTTH5213TCH Meter Socket - UL Listed
Part Number: UTTH5213TCH
Quick Summary
UTTH5213TCH meter socket provides a reliable 200A service connection for commercial or residential installations. Many projects face wiring complexity, safety concerns, and downtime during installation, which this unit helps mitigate with a robust, UL Listed design. The meter socket delivers UL Listed safety, a 600 V rating, and a 4-wire, 3-phase configuration suited to modern metering standards. As part of Eaton's metering products, UTTH5213TCH integrates with standard distribution equipment, reducing field errors and installation time for installers and owners alike, while supporting top/bottom feed, five-jaw sockets, and lever bypass for improved service continuity.
Product Information
Extended Description
UTTH5213TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Large hub open, #6-350 kcmil, 5-jaw, 3-ph, #6-350 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTH5213TCH
UPC
782113684918
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Three-phase
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
Hub opening
Connection
Ground connection
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTTH5213TCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200A, 3-phase, 4-wire service aligns with contemporary building loads and enables scalable metering. Business Impact: Supports higher demand profiles with reliable performance, reducing the need for early system upgrades and lowering lifecycle costs. Application: Ideal for commercial or residential service entrances seeking durable, code-compliant metering solutions. Feature: Top/bottom feed and five-jaw design simplify wiring layouts and accommodate varied installation configurations. Business Impact: Shorter installation time, fewer field alterations, and stronger plug-and-play compatibility with common service equipment. Application: Utilities and contractors benefit from faster commissioning and fewer rework incidents. Feature: Lever bypass and ringless grounding conns enhance service continuity and safety. Business Impact: Facilitates maintenance without full service interruptions and improves circuit protection compliance. Application: Building owners can schedule maintenance with minimal downtime and verified grounding integrity. Feature: 600V rating and UL Listed certification provide essential safety and regulatory alignment. Business Impact: Meets utility and local standards, reducing inspection delays and warranty disputes. Application: Suitable for regulated metering environments and new-build or retrofit projects. Feature: Compact footprint with 1 socket, modular compatibility with standard meter hardware, and clear labeling. Business Impact: Maximizes space in electrical rooms while easing future upgrades. Application: Small to mid-size facilities needing dependable metering without oversized enclosures.
Get a Quick Quote for a Eaton UTTH5213TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTH5213TCH?
Enquire Now
FAQs
The UTTH5213TCH is designed for 200A, three-phase, four-wire service with top or bottom feed. It uses a five-jaw configuration and a 1-position commercial or residential service design, making it compatible with common utility meters and standard distribution equipment for straightforward installations.
Lever bypass provides a controlled path to bypass the meter during maintenance or testing without removing power to downstream equipment. This feature minimizes service downtime, improves maintenance efficiency, and supports safer, quicker shutoffs while preserving normal operation for connected loads.
Yes, UTTH5213TCH is UL Listed. This certification confirms the unit meets recognized safety standards for electrical equipment, ensuring compliance with electrical codes and reducing the risk of unsafe installations or warranty disputes in both commercial and residential metering projects.
The device supports #6-350 kcmil conductors on load and line, with two grounding connections sized for Cu #14–#2. It includes a ringless design for safer enclosure use and permits four-wire connections, which aligns with modern 3-phase, four-wire metering applications.
Consider dimensions (W 13 in, H 19 in, D 4.94 in) and weight (≈26 lb) for enclosure space and handling. Use top/bottom feed, plan for 600V operation, verify UL Listed compliance, and ensure proper grounding connections. The unit is designed to integrate with standard Eaton metering hardware and should be wired with the appropriate conductor sizes (#6-350 kcmil).
