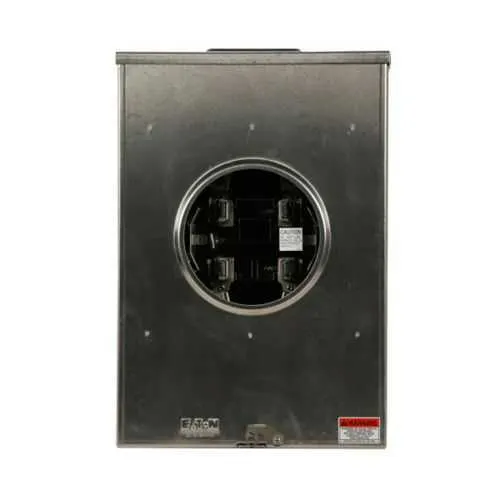

Eaton UTTH7336TCH Meter Socket - UL Listed 600V
Part Number: UTTH7336TCH
Quick Summary
The Eaton meter socket UTTH7336TCH delivers reliable, compliant power service for commercial or residential electrical installations in today's buildings everywhere. Engineers often confront complex four-wire configurations and ringless access that delay projects and risk code noncompliance. This unit carries UL Listed safety certification and is designed for a 600 V, 320 A service, supporting efficient metering and maintenance. With these features, it aligns with metering product standards and supports fast deployment, reliability, and long-term ROI.
Product Information
Extended Description
UTTH7336TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub open, #4-600 kcmil, 7-jaw, 3-ph, #4-600 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTH7336TCH
UPC
782116015924
Product Length/Depth
6.5 in
Product Height
39.88 in
Product Width
20 in
Product Weight
1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Line
#4-600 kcmil
Load
#4-600 kcmil
Number of wires
Four-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTTH7336TCH
Selling Policy 25-000 - Distribution and Control Products and Services
320 A amperage rating supports large service demands. Business impact: minimizes upgrade costs, reduces panel installations, and improves reliability for critical loads. Application: ideal for commercial offices, multi-unit residential buildings, and light industrial metering. Feature: Three-phase, four-wire configuration ensures balanced loads and code-compliant grounding. Business impact: improves safety margins and simplifies protective device coordination. Application: meter services feeding 3Ø equipment, motors, and distribution panels. Feature: Top/bottom feed with seven-jaw design provides flexible wiring and secure terminations. Business impact: streamlines installation and reduces field modification requirements. Application: retrofit projects and new builds where space and access vary. Feature: Ringless design with lever bypass supports safer maintenance and faster service restarts. Business impact: lowers downtime and simplifies mechanical testing. Application: utility metering, commercial buildings, and service disconnect routines. Feature: 5 x 5 hub opening and support for #4-600 kcmil conductors keeps wiring scalable. Business impact: simplifies conductor sizing, reduces splicing, and improves underground or overhead routing. Application: high-capacity feeders and ring-main installations. Feature: UL Listed with 600 V rating ensures safety compliance and performance under standard metering conditions. Business impact: reduces regulatory risk and accelerates inspection readiness. Application: any UL-listed meter-socket deployment in commercial or residential settings.
Get a Quick Quote for a Eaton UTTH7336TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTH7336TCH?
Enquire Now
FAQs
The UTTH7336TCH supports top or bottom feed, a seven-jaw design, four-wire configuration, and a 5 x 5 hub opening. These features enable flexible integration with current infrastructure, simplify conductor sizing (#4-600 kcmil), and reduce field modifications while meeting UL safety standards.
Key specs include a 320 A amperage rating, 600 V voltage rating, three-phase operation, and four-wire configuration. The meter socket is ringless with a lever bypass, and it accommodates #4-600 kcmil conductors across a 5 x 5 hub opening, streamlining protection device coordination and maintenance.
Yes. It suits commercial metering, multifamily residential buildings, retail spaces, and light industrial facilities requiring 320 A service, 600 V operation, and a three-phase, four-wire configuration. The lever bypass and ringless design support quick maintenance without disrupting service for critical loads.
The UTTH7336TCH is UL Listed, confirming compliance with recognized safety standards for meter sockets. It is designed for 600 V systems and 320 A services, aligning with typical utility and building codes for metering equipment.
The product carries Eaton's warranty policy of one year from installation or eighteen months from shipment, whichever occurs first. The lever bypass and ringless design reduce downtime during maintenance, supporting lower total cost of ownership and faster return on investment.
