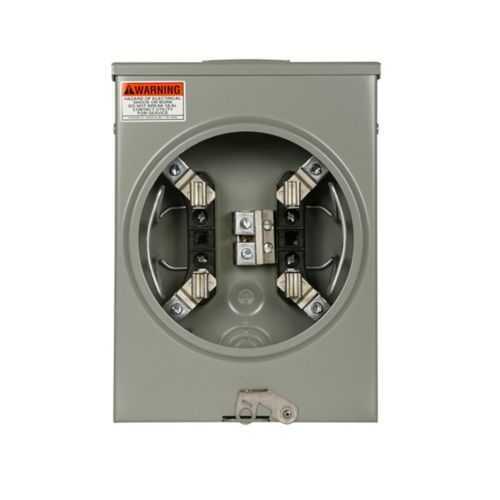

Eaton UTTRS101BCH Meter Socket - UL Listed, 125A 600V
Part Number: UTTRS101BCH
Quick Summary
Eaton meter socket UTTRS101BCH provides a reliable, single-position residential service connection for 125A electrical feeds. Field installations often suffer from misaligned terminations and cumbersome grounding, which this unit helps avoid with top/bottom feed and a four-jaw design. UL Listed safety certification ensures code compliance for residential metering, while Eaton’s warranty guards against installation concerns during the first year. Beyond safety, this meter socket supports efficient utility-grade metering with a compact footprint, helping installers meet space constraints while maintaining future expandability. Designed for a broad range of residential metering scenarios, it integrates with common service panels and simplifies wiring for contractors and facility managers.
Product Information
Extended Description
UTTRS101BCH Eaton: Eaton meter socket, 1-pos resi service, 125A, Over/under, Small hub open, #8-2/0 AWG, 4-jaw, 1-ph, #8-2/0 AWG, Two grounding conns (#14-#2 Cu), Quadplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTRS101BCH
UPC
782116063048
Product Length/Depth
3.5 in
Product Height
10.875 in
Product Width
8 in
Product Weight
12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Iowa, Ameren, Union Electric, Union Electric, Central Illinois Public
Type
Single-position residential service
Amperage Rating
125A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Line
#8-2/0 AWG
Load
#8-2/0 AWG
Number of wires
Three-wire
Hub type
Hub opening
Connection
Ground connection
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTTRS101BCH
Feature: 125A single-position residential service. Benefit: Aligns with standard utility connections and delivers reliable metering for homes and small facilities, reducing service interruptions and customization costs. Application: Ideal for new builds and retrofits in single-phase residential projects while maintaining code-compliant feeder connections. Feature: Four-jaw construction with hub opening and ringless ground. Benefit: Ensures secure mechanical and electrical contact with minimal maintenance and enhanced grounding reliability. Application: Suitable for compact meter bases where robust connections are essential for long-term service life. Feature: Top/bottom feed. Benefit: Installation flexibility reduces labor time and allows easy integration with existing service entries. Application: Retrofit projects and space-constrained installations in residential metering setups. Feature: Line and load conductors rated #8-2/0 AWG, three-wire, single-phase. Benefit: Broad conductor compatibility minimizes rework and enables reuse of existing feeders. Application: Residential feeders and small commercial metering scenarios. Feature: Ground connection, hub opening, and 600V rating. Benefit: Enhanced safety and versatility across typical metering environments, ensuring regulatory compliance. Application: Metering in locations with higher distribution voltage demands or mixed-use installations. Feature: Compact dimensions (8 in W × 10.875 in H × 3.5 in D) and 12 lb weight. Benefit: Space-efficient deployment and easier handling during installation. Application: Meter bases with limited clearance or retrofit projects in multi-unit buildings. Feature: UL Listed certification and standard warranty terms. Benefit: Regulatory confidence for procurement and predictable after-sales support. Application: Procurement for utilities, contractors, and facility managers seeking proven, certified metering equipment.
Get a Quick Quote for a Eaton UTTRS101BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTRS101BCH?
Enquire Now
FAQs
Installation begins with verifying clearance and shut-off, followed by mounting the 8" wide by 10.875" high unit in the meter base. Connect #8-2/0 AWG conductors to the top/bottom feed and secure the four jaws, ensuring a solid ground connection. Verify grounding continuity and test for 600V compatibility before commissioning.
Key specs include 125A amperage rating, single-position residential service type, four-jaw configuration, top/bottom feed, 1 socket, three-wire, hub opening, ground connection, ringless design, and a 600V voltage rating. The unit measures 8 in wide by 10.875 in high and 3.5 in deep, weighs 12 lb, and is UL Listed.
Yes. The UTTRS101BCH is designed for three-wire, single-phase residential metering with a 125A rating and a 600V maximum, making it appropriate for typical home service installations and light commercial applications that require a compact, compliant meter socket.
The UTTRS101BCH carries UL Listed certification, indicating safety and code compliance for residential metering installations. This certification supports acceptance by utilities and compliance with standard electrical safety practices.
The meter socket measures 8 inches in width, 10.875 inches in height, and 3.5 inches in depth, with a weight of 12 pounds. These dimensions facilitate space planning in standard meter bases and ease handling during installation.
