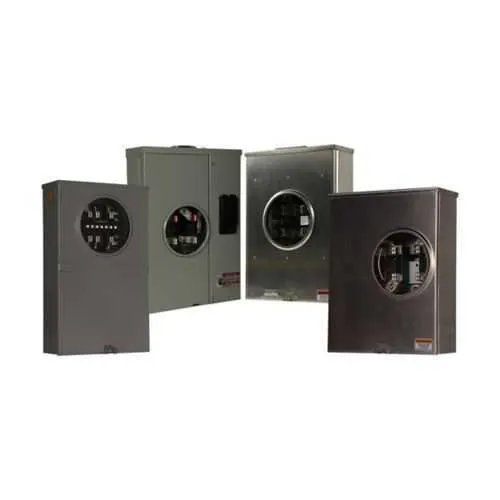

Eaton UTZ4R1121CFLCH Meter Socket - UL Listed
Part Number: UTZ4R1121CFLCH
Quick Summary
UTZ4R1121CFLCH meter socket provides reliable single-phase 100A service connections for residential and small commercial apps. Installers often battle space constraints and misaligned jaw configurations; this unit's four-jaw design and top/bottom feed options help keep wiring tidy and compliant. UL Listed for 600 V operation, it aligns with safety standards and long-term performance expectations. Designed to speed commissioning and reduce field adjustments, it supports reliability, standardization, and faster procurement for metering projects. With a ringless ground connection and a compact footprint, it minimizes panel intrusion and simplifies permit-ready installations for utilities and contractors. It also supports common metering configurations, including #6-250 kcmil line and #8-2/0 AWG load, streamlining procurement for residential service upgrades.
Product Information
Extended Description
UTZ4R1121CFLCH Eaton: Eaton meter socket, Multi position resi service, 100A, Over/under, Small hub closing plate mounted, #6-250 kcmil, 4-jaw, 1-ph, #8-2/0 AWG, 5/16 in hex head conn screw, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac, 1-Socket
Product Name
Eaton meter socket
Catalog Number
UTZ4R1121CFLCH
UPC
782116174669
Product Length/Depth
4.5 in
Product Height
14.13 in
Product Width
40.63 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position residential service
Amperage Rating
100A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
FL : Tallahassee City Electric
Line
#6-250 kcmil
Load
#8-2/0 AWG
Number of wires
Three-wire
Hub type
Small hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTZ4R1121CFLCH
Selling Policy 25-000 - Distribution and Control Products and Services
The UTZ4R1121CFLCH is a 100A, single-phase meter socket with four jaws and a three-wire configuration. This feature delivers a secure, code-compliant connection for residential feeders, reducing wiring errors and improving overall safety in field installations. The design supports residential service equipment expectations and meets metering product standards, delivering measurable installation efficiency and fewer callbacks. The top/bottom feed option provides flexible mounting in crowded panels and retrofit scenarios, enabling quick, clean runs and minimizing panel modifications for upgrades. This translates to reduced labor time, lower project risk, and faster site commissioning for utilities and contractors working on metering upgrades or new builds. A ringless ground connection further reduces wear on connectors, while a compact footprint minimizes space intrusion and simplifies permit-ready installations in tight electrical rooms. The small hub cover plate and four-jaw configuration support three-wire metering with secure, reliable connections, improving long-term reliability in residential and light commercial applications. Conductor sizing coverage includes #6-250 kcmil line and #8-2/0 AWG load, offering design flexibility for varied utility service requirements and simplifying procurement in standard residential service upgrades. This meter socket is UL Listed and designed to integrate with Eaton metering products and standard electrical distribution panels, helping to maintain consistent installation practices across projects and reducing long-term maintenance costs.
Get a Quick Quote for a Eaton UTZ4R1121CFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTZ4R1121CFLCH?
Enquire Now
FAQs
UTZ4R1121CFLCH supports top or bottom feed, allowing flexible mounting in limited spaces. For tight panels, plan conductor routing before enclosure access, ensure the four-jaw clamp is aligned with the feed path, and verify mounting clearances per local code. This reduces the risk of wiring interference and simplifies permit documentation during metering upgrades.
The unit accommodates line conductors from #6 to 250 kcmil and loads from #8 to 2/0 AWG in a three-wire configuration. This range supports common residential service upgrades and light commercial metering. The four-jaw design ensures a secure clamp on each conductor, minimizing resistance and improving voltage stability across the socket.
Yes. The 100A, single-phase, four-jaw meter socket is designed for residential and small commercial applications, including 3-wire service and triplex configurations. Its UL Listed rating and 600 V capacity make it appropriate for standard metering installations in homes and small businesses, while its wiring footprint supports compact project layouts.
The UTZ4R1121CFLCH is UL Listed, confirming adherence to safety and performance standards for electrical equipment. The 600 V rating further supports compliance for typical utility and building codes in residential metering. This certification streamlines inspection processes and reduces project risk for procurement teams and installers.
With a ringless grounding design and a compact footprint, the socket minimizes wear at grounding connections and reduces panel intrusion, lowering maintenance needs over time. Its standardized Eaton metering compatibility and quick-install features can shorten commissioning, lower labor costs, and improve project ROI for metering upgrades and new installations.
