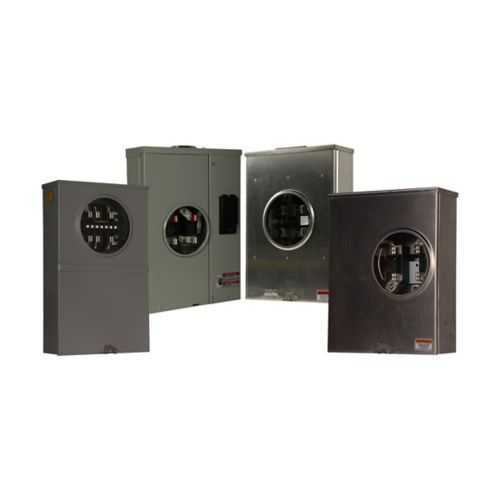

Eaton UTZ5R1121CFLCH Meter Socket - UL Listed
Part Number: UTZ5R1121CFLCH
Quick Summary
Eaton meter socket UTZ5R1121CFLCH provides a reliable 100A metering solution for residential and light commercial applications. During upgrades and retrofits, electricians often face miswired terminations and complex field wiring. UL Listed with utility approvals such as Tallahassee City Electric adds confidence for project coordination. Its ringless design, 3-wire configuration, and top/bottom feed deliver easier installations while improving safety and compliance. Aligned with Eaton’s metering portfolio, it supports standard enclosures, reduces procurement friction, and simplifies ongoing service. The unit’s dimensions and weight accommodate field handling, enabling smoother installation workflows and dependable long-term operation.
Product Information
Extended Description
UTZ5R1121CFLCH Eaton: Eaton meter socket, Multi position resi service, 100A, Over/under, Small hub closing plate mounted, #6-250 kcmil, 5-jaw, 1-ph, #8-2/0 AWG, 5/16 in hex head conn screw, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac, 1-Socket
Product Name
Eaton meter socket
Catalog Number
UTZ5R1121CFLCH
UPC
782116174676
Product Length/Depth
4.5 in
Product Height
14.13 in
Product Width
48.78 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position residential service
Amperage Rating
100A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
FL : Tallahassee City Electric
Line
#6-250 kcmil
Load
#8-2/0 AWG
Number of wires
Three-wire
Hub type
Small hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTZ5R1121CFLCH
Feature → Business Impact → Application: The 100 A amperage rating with a 600 V rating provides robust protection against overloads and voltage excursions, translating to reliable service for typical residential feeders and light commercial circuits. Application: use in new meter installations or upgrades in single-phase systems where a UL Listed, ringless meter socket is preferred. Feature → Business Impact → Application: Five-jaw, three-wire, multi-position residential service configuration simplifies field wiring and reduces misconnection risk, speeding up commissioning and reducing callbacks. Application: retrofit projects or new builds in single-phase networks seeking streamlined wiring. Feature → Business Impact → Application: Top/bottom feed and a small hub cover plate enable flexible mounting in tight spaces; impact includes easier conductor routing and neater installations. Application: residential meter enclosures with space constraints. Feature → Business Impact → Application: Conductor range supports #6-250 kcmil on the line side and #8-2/0 AWG on the load side, enabling a wide feeder configuration and easier stocking. Application: large-diameter feeders to the meter in both upgrades and new installs. Feature → Business Impact → Application: Ringless security coupled with UL Listed certification and Tallahassee City Electric approval improves safety, tamper resistance, and regulatory acceptance. Application: utility-coordinated metering projects and compliant installations. Feature → Business Impact → Application: Warranty coverage of one year from installation or eighteen months from shipment reduces procurement risk and supports maintenance planning. Application: project timelines and service life forecasting for residential and light commercial metering.
Get a Quick Quote for a Eaton UTZ5R1121CFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTZ5R1121CFLCH?
Enquire Now
FAQs
Yes. This meter socket is a 100A, 3‑wire, single‑phase device with top/bottom feed, five‑jaw connections, and ringless security. It accommodates #6-250 kcmil line conductors and #8-2/0 AWG on the load side while fitting typical residential meter enclosures. Verify enclosure width and mounting clearance for retrofit projects.
Key specifications include a 100A amperage rating, 600V voltage rating, three-wire configuration, single-phase operation, five-jaw connections, and top/bottom feed. It supports #6-250 kcmil conductors on the line side and #8-2/0 AWG on the load side, with a single meter socket per device.
Designed for residential service meters with potential use in light commercial settings, it carries UL Listed certification and utility approvals (including Tallahassee City Electric). Ringless security and a small hub cover plate support neat, code-compliant installations suitable for standardized metering projects.
The unit is UL Listed and carries utility approvals (such as Tallahassee City Electric). Eaton provides a warranty of one year from installation or eighteen months from shipment. These certifications and warranty terms help ensure safety, regulatory compliance, and long-term reliability in metering deployments.
The large yet manageable dimensions plus 30 lb weight simplify handling and mounting in the field. Ringless design minimizes corrosion risk, and the top/bottom feed reduces labor during service upgrades. Fewer on-site modifications, combined with UL/utility approvals, shorten installation cycles and improve overall return on investment.
