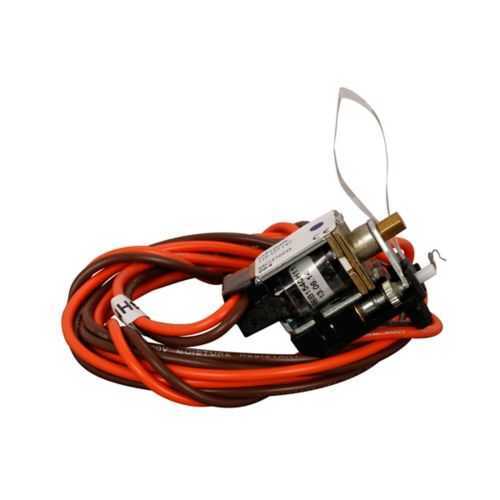

Eaton UVR125VDC Undervoltage Relay - IEC Rated
Part Number: UVR125VDC
Quick Summary
The UVR125VDC undervoltage relay from Eaton provides reliable DC undervoltage protection for W-VAC panels and control circuits. When the supply sags or fails, it opens the circuit breaker to prevent equipment damage and unplanned downtime. This IEC Rated device is designed to work with both DC and AC sources, and it pairs with W-VACiMB for streamlined control of mission-critical loads. For engineers, the result is consistent protection, fewer nuisance trips, and easier compliance with electrical protection standards. With its compact footprint and straightforward wiring, it supports fast installation, predictable maintenance planning, and a clear path to scalable service in industrial environments.
Product Information
Extended Description
UVR125VDC Eaton: Eaton W-VAC undervoltage relay, 110-125 Vdc, Used with W-VACiMB
Product Name
Eaton W-VAC undervoltage relay
Catalog Number
UVR125VDC
UPC
786685632575
Product Length/Depth
8 in
Product Height
3 in
Product Width
6 in
Product Weight
3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC Rated
Catalog Notes
This device opens the circuit breaker when there is notable lowering or loss of its power supply. It can operate with both direct and alternating current.
Used with
W-VACiMB
Type
Undervoltage relay
Voltage rating
110-125 Vdc
DC undervoltage detection within a 110-125 Vdc range protects critical loads before contact wear and fault cascades occur. The business impact is reduced unplanned downtime and longer life for starter motors and relays. In an automation panel, this means fewer trips and more stable process control for lines powered by W-VAC systems. Seamless W-VACiMB compatibility and dual AC/DC operation offer installation flexibility across legacy and new builds. The 8 in L × 6 in W × 3 in H enclosure weighs 3 lb, enabling straightforward panel mounting with minimal space impact. For field wiring, the catalog notes simplify wiring strategies by using direct connections and standard terminals. IEC Rated certification ensures conformity with international electrical protection standards, supporting regulatory compliance and safer maintenance. The device switches a circuit breaker on undervoltage, a precise control strategy especially valuable in critical production lines. The 110-125 Vdc rating makes it ideal for DC control circuits and for automation architectures that require robust protection without sacrificing performance. Reliability and service are supported by a 1-year Eaton warranty, with documented specs and a straightforward procurement path for W-VAC protection. In power distribution for manufacturing and process industries, undervoltage relays like UVR125VDC help meet uptime targets and energy efficiency goals.
Get a Quick Quote for a Eaton UVR125VDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UVR125VDC?
Enquire Now
FAQs
The UVR125VDC is designed to work with Eaton W-VACiMB panels and supports operation from 110-125 Vdc. It can operate with both DC and AC sources, enabling flexible integration into existing control architectures and new installations. This compatibility reduces wiring complexity and supports standardized protection across W-VAC systems.
By detecting undervoltage on DC control circuits and opening the circuit breaker, UVR125VDC prevents unpredictable equipment starts and protects sensitive loads. This results in fewer nuisance trips, longer component life, and improved process stability—especially valuable in high-demand manufacturing lines and critical process controls.
The device footprint (8 in L × 6 in W × 3 in H) and a 3 lb weight make it straightforward to mount in standard electrical panels with minimal space impact. Use the provided wiring terminal conventions and the W-VACiMB wiring strategy to simplify field connections and reduce commissioning time, supporting faster project timelines.
The UVR125VDC is IEC Rated, ensuring conformity with international electrical protection standards. This certification supports regulatory compliance in diverse markets and provides reassurance for system integrators and maintenance teams regarding safety and performance in DC control circuits.
Eaton offers a warranty per policy 25-000: one year from installation or 18 months from shipment, whichever occurs first. This coverage supports maintenance planning and total cost of ownership considerations, while Eaton's documentation and datasheets (including the UVR125VDC specification sheet) aid in sizing and ongoing support.
