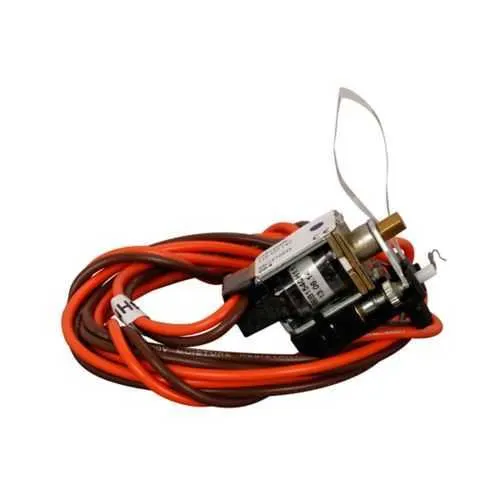

Eaton UVR48VDC Undervoltage Relay - IEC Rated
Part Number: UVR48VDC
Quick Summary
UVR48VDC undervoltage relay protects 48 Vdc control circuits in industrial protection systems. When a power dip or loss occurs, it can trigger unwanted circuit trips and downtime; this device helps prevent that by opening the circuit breaker on low supply. It carries IEC Rated certification to support reliable performance in industrial environments, and it supports both DC and AC inputs. By combining compact form with W-VACiMB compatibility, it delivers robust protection while helping engineers streamline installation and maintenance in a demanding manufacturing setting.
Product Information
Extended Description
UVR48VDC Eaton: Eaton W-VAC undervoltage relay, 48 Vdc, Used with W-VACiMB
Product Name
Eaton W-VAC undervoltage relay
Catalog Number
UVR48VDC
UPC
786685632568
Product Length/Depth
8 in
Product Height
3 in
Product Width
5.5 in
Product Weight
1.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC Rated
Catalog Notes
This device opens the circuit breaker when there is notable lowering or loss of its power supply. It can operate with both direct and alternating current.
Used with
W-VACiMB
Type
Undervoltage relay
Voltage rating
48 Vdc
Feature: Compact 8 in × 5.5 in × 3 in enclosure with a 1.2 lb weight. Business Impact: Eases retrofit and panel installation, reducing space concerns and labor time. Application: Ideal for space‑constrained control cabinets in automation lines. Feature: 48 Vdc voltage rating with AC/DC compatibility. Business Impact: Ensures stable undervoltage protection across diverse power supplies, lowering nuisance trips. Application: Suitable for DC control circuits and mixed DC/AC power environments. Feature: Undervoltage sensing that opens the circuit breaker on loss or drop. Business Impact: Prevents backfeed and equipment damage, extending component life and uptime. Application: Motor, valve, and safety circuits in industrial equipment. Feature: Compatibility with W-VACiMB protection architecture. Business Impact: Simplifies integration, reduces wiring changes, and accelerates commissioning. Application: Eaton W‑VAC system installations across control panels. Feature: IEC Rated certification and documented warranty. Business Impact: Supports regulatory compliance and predictable maintenance costs. Application: Industrial safety and protection deployments with service windows aligned to Eaton policies.
Get a Quick Quote for a Eaton UVR48VDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UVR48VDC?
Enquire Now
FAQs
UVR48VDC is designed for integration with Eaton’s W-VACiMB architecture and standard control panels. It offers a compact footprint (8 in L × 5.5 in W × 3 in H) and a weight of 1.2 lb, enabling straightforward mounting in typical electrical cabinets. Use conventional panel wiring practices and ensure secure connections to minimize resistance and aging. Always consult the latest Eaton datasheet for terminal specifications and wiring diagrams.
The UVR48VDC is rated for 48 Vdc operation and is capable of functioning with both direct current and alternating current inputs in practical applications. This dual compatibility supports flexible integration into mixed power architectures commonly found in industrial control circuits and protection schemes.
Yes. The UVR48VDC is specifically designed as an undervoltage protection relay for 48 Vdc control circuits and is intended for use within W-VAC protection setups. Its function is to open the circuit breaker if the 48 Vdc supply lowers or is lost, thereby safeguarding downstream equipment and maintaining system integrity.
The UVR48VDC carries IEC Rated certification, indicating compliance with IEC-based electrical safety and performance standards. While additional certifications (such as SIL, CE, or IP ratings) are not listed in the provided data, IEC Rated status provides a clear baseline for industrial reliability and safety expectations in centralized protection arrangements.
By preventing nuisance trips caused by voltage dips, UVR48VDC helps reduce unplanned downtime and wear on breakers, translating to lower maintenance costs and longer component life. The device also benefits from a defined warranty window (one year from installation or eighteen months from shipment), improving total cost of ownership and budgeting for replacements or service.
