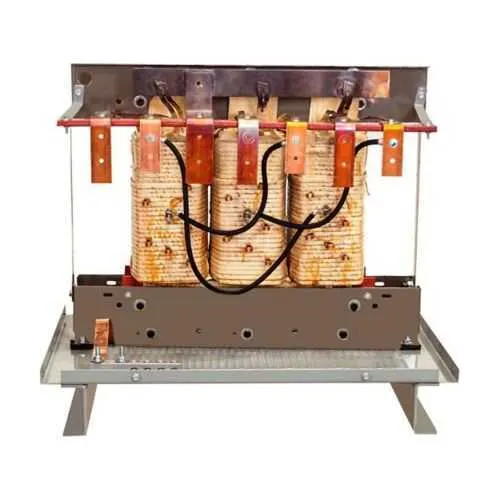

Eaton V48G31T09CUZZ Open Core-Coil Transformer - 9 KVA
Part Number: V48G31T09CUZZ
Quick Summary
Eaton Open core-coil ventilated transformer provides reliable 3-phase power for industrial control panels. In tight electrical rooms, overheating and uneven cooling can derail uptime, making heat management a top priority. Certifications: Contact Manufacturer; this unit features a 9 KVA rating with copper windings and a 150°C rise to handle demanding loads, though specific regulatory marks should be confirmed with Eaton for your region. This combination supports safer, compliant, and cost-efficient power distribution in automation and manufacturing environments.
Product Information
Extended Description
V48G31T09CUZZ Eaton: Eaton Open core-coil ventilated transformer 9 KVA CORE-COIL 3PH 480-220Y/127 150C RISE, COPPER
Product Name
Eaton Open core-coil ventilated transformer
Catalog Number
V48G31T09CUZZ
UPC
786680136924
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
1 lb
Certifications
Contact Manufacturer
Type
Ventilated transformer
Feature: 9 KVA, 3-phase core-coil rating with 480 V primary and 220Y/127 V secondary; Copper windings improve conductivity. Business Impact: Reduced voltage drop, enhanced efficiency, and better thermal performance under load. Application: Suitable for industrial automation panels, machine tools, and conveyors where stable power and heat management matter. Feature: Ventilated open core-coil design for superior heat dissipation. Business Impact: Maintains safe operating temperatures, extends transformer life, and lowers cooling energy costs. Application: Dense panel housings and retrofit installations in manufacturing environments. Feature: Copper windings and robust construction. Business Impact: Higher current capability with lower resistance losses, improving reliability for critical loads. Application: Robotics, CNC machinery, and process equipment in automation facilities. Feature: Documentation and compatibility with Eaton catalogs. Business Impact: Accelerates procurement, engineering reviews, and regulatory compliance. Application: Engineering workflows for control cabinets and distribution panels. Feature: Clear identification via catalog number and UPC. Business Impact: Streamlined ordering, inventory planning, and maintenance traceability. Application: Installation planning, spare parts management, and field service routines.
Get a Quick Quote for a Eaton V48G31T09CUZZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton V48G31T09CUZZ?
Enquire Now
FAQs
The unit is a 3-phase transformer with a 480 V primary and a 220Y/127 V secondary. It is rated at 9 KVA and uses copper windings to optimize efficiency and current handling in typical industrial control applications.
Yes. Its 3-phase, 480 V to 220Y/127 V configuration, combined with a ventilated core design and copper windings, makes it suitable for control panels, automation cabinets, and other industrial power distribution applications where reliable heat management and voltage stability are needed.
The catalog entry lists Certifications as 'Contact Manufacturer'. For CE, SIL, or IP ratings, confirm with Eaton or your regional distributor to obtain region-specific compliance documentation and third-party test reports.
The ventilated open core-coil design promotes better air flow around the windings, reducing hotspot formation and lowering winding temperature rise. This enhances overall efficiency, minimizes thermal stress, and can extend the transformer's service life in demanding industrial environments.
Key documents include the Eaton Specification Sheet for V48G31T09CUZZ and the Commercial Distribution Transformer catalog (Volume 2, Tab 2). These resources provide complete electrical ratings, installation guidelines, and ordering information.
