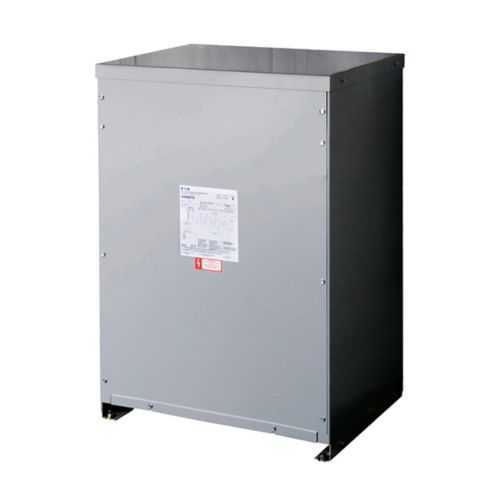

Eaton V48M28F15NV Dry Type Transformer - UL Listed
Part Number: V48M28F15NV
Quick Summary
V48M28F15NV transformer from Eaton provides reliable power distribution for industrial control panels and equipment. In demanding environments where space is at a premium and maintenance cycles are tight, this unit’s totally enclosed non-ventilated design minimizes dust ingress and simplifies servicing. UL Listed certification reinforces safety and reliability, while aluminum windings and the DT-3 construction deliver durability in 60 Hz operation. With a 15 kVA rating and 480 V to 208Y/120 V output, it scales to growing automation needs and supports efficient lifecycle costs for manufacturing lines, robotics, and machine enclosures.
Product Information
Extended Description
V48M28F15NV Eaton: General-Purpose Transformer, Dry Type Distribution, DT-3, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 115°C, 15 kVA, Al windings , Frame: 912BN
Product Name
Eaton Totally enclosed non-ventilated transformer
Catalog Number
V48M28F15NV
UPC
786680059933
Product Length/Depth
16.5 in
Product Height
30 in
Product Width
23 in
Product Weight
347 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Totally enclosed non-ventilated
Coil material
Aluminum
Design
DT-3
Frame
912BN
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
Dry Type Distribution Transformer
Frequency rating
60 Hz
Kva Rating
15 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Temperature rise
115 °C rise
Feature: Totally enclosed non-ventilated enclosure keeps dust and moisture out and reduces enclosure cooling needs → Business Impact: lower maintenance, fewer outages, and longer service life → Application: ideal for factory floors and machine rooms where harsh conditions are present. Feature: DT-3 dry-type distribution design with aluminum windings → Business Impact: robust performance with efficient heat transfer and corrosion resistance → Application: reliable in continuous operation for 60 Hz systems. Feature: 15 kVA, 3-phase, with primary 480 V and secondary 208Y/120 V; taps at +2.5% and -2.5% ensure voltage matching → Business Impact: tighter voltage regulation and compatibility with existing panels → Application: distribution to control panels and machinery. Feature: Frame 912BN and dimensions 16.5 in L × 23 in W × 30 in H; weight 347 lb → Business Impact: compact footprint and manageable installation in constrained spaces → Application: retrofit into compact switchgear and control enclosures. Feature: UL Listed certification and Eaton warranty policy → Business Impact: regulatory compliance and risk mitigation during deployment and retrofit → Application: quality assurance across plant modernization projects.
Get a Quick Quote for a Eaton V48M28F15NV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton V48M28F15NV?
Enquire Now
FAQs
Because this is a totally enclosed non-ventilated design with aluminum windings, ensure adequate clearance and mounting in a suitable indoor or protected space; dimensions are 16.5 in L × 23 in W × 30 in H, weight 347 lb, three-phase 480 V to 208Y/120 V output.
It is a 15 kVA, three-phase transformer with 60 Hz operation, primary 480 V, secondary 208Y/120 V, and taps at +2.5% FCAN and -2.5% FCBN for voltage matching.
Yes. The DT-3 dry-type distribution design with aluminum windings and UL Listed certification makes it appropriate for control panels, machine rooms, and distribution boards in manufacturing and process environments.
The unit carries UL Listed certification. Warranty is Eaton Selling Policy 25-000: one year from installation or 18 months from shipment, whichever occurs first.
Its 912BN frame and compact footprint support easy mounting within standard switchgear or enclosures; the taps facilitate voltage matching, and aluminum windings offer corrosion resistance and long life in 60 Hz operation.
