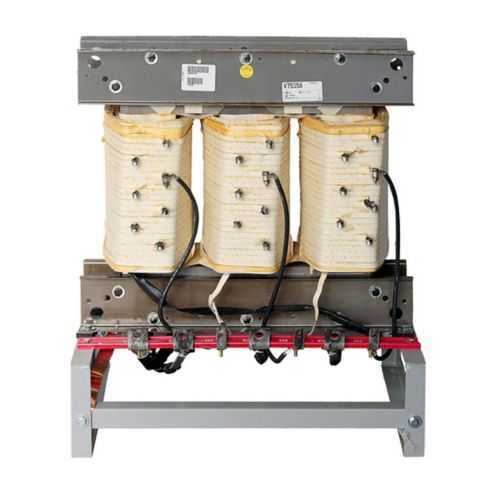

Eaton Open-coil V48M28T45ZZ - UL Recognized Transformer
Part Number: V48M28T45ZZ
Quick Summary
Eaton Open-coil ventilated transformer delivers reliable power distribution for industrial facilities. Engineers often struggle with voltage drift, tap mismatch, and bulky footprints when integrating legacy equipment into modern control systems. This unit carries UL Recognized safety certification and a robust DT-3 design with an open-type core and 912C frame, supporting dependable performance in demanding environments. For reliability, aluminum windings and a 150 °C rise rating handle continuous operation under heavy loads. Its voltage-tap options and compact form factor reduce on-site adjustments, helping you cut downtime and installation costs while preserving power quality for critical machinery.
Product Information
Extended Description
V48M28T45ZZ Eaton: Eaton General-Purpose Transformer, Dry Type Distribution, DT-3, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150°C, 45 kVA , Al windings , Frame: 912C
Product Name
Eaton Open core-coil ventilated transformer
Catalog Number
V48M28T45ZZ
UPC
786680003608
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
312 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Recognized
Catalog Notes
Open type core and coil assembly
Coil material
Aluminum
Design
DT-3
Frame
912C
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
Dry Type Distribution Transformer
Frequency rating
60 Hz
Kva Rating
45 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Temperature rise
150 °C rise
Open-core, ventilated design provides efficient cooling and easy inspection, enabling faster maintenance and reduced thermal limits under heavy loads. The DT-3 configuration with a 912C frame enhances mechanical compatibility with standard distribution panels, simplifying retrofit projects and field installations. Voltage regulation is achieved through selective taps, including two taps at +2.5% FCAN and four at -2.5% FCBN, enabling precise secondary voltage control and improved motor starting performance in fluctuating supply conditions. Aluminum windings offer robust thermal performance and corrosion resistance, extending service life in demanding environments while maintaining low weight for a unit of this size. The 60 Hz, three-phase layout ensures balanced loading and predictable vibration characteristics, supporting consistent power delivery to motors, drives, and control circuits. A 45 kVA rating aligns with typical plant feeder requirements, while the 912C frame and open-type core simplify installation and future servicing. UL Recognized certification provides safety assurance, and Eaton’s warranty policy adds financial protection against defects, delivering a compelling total-cost-of-ownership proposition for power-management projects.
Get a Quick Quote for a Eaton V48M28T45ZZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton V48M28T45ZZ?
Enquire Now
FAQs
Yes. The V48M28T45ZZ is designed for a 480 V primary and a 208Y/120 V secondary in three-phase, 60 Hz systems. It uses the DT-3 open-core design with a 912C frame and supports on-site voltage adjustments via taps, facilitating proper voltage delivery to downstream equipment in switchgear and control panels.
The transformer includes two taps at +2.5% FCAN and four taps at -2.5% FCBN. These taps let you fine-tune the secondary voltage to counteract line drop or load variation, maintaining stability for sensitive motors, drives, and controls without overhauling feeders or wiring.
This 45 kVA, three-phase transformer is ideal for general power distribution in manufacturing, processing, and machine-automation environments. It steps down 480 V feeders to 208Y/120 V for control panels, MCCs, and auxiliary equipment, while providing reliable duty and compact installation within standard switchgear footprints.
The V48M28T45ZZ carries UL Recognized certification, signaling compliance with established safety standards for electrical components. The open-core, dry-type design reduces oil-hazard risks, and the aluminum windings plus DT-3 construction support durable, maintenance-friendly operation in industrial facilities.
Eaton provides a warranty under policy 25-000: one year from installation or eighteen months from shipment, whichever comes first. For maintenance, the open-type core and coil assembly design facilitates inspection, filter-free cooling, and straightforward access for routine checks, reducing downtime and service costs.
