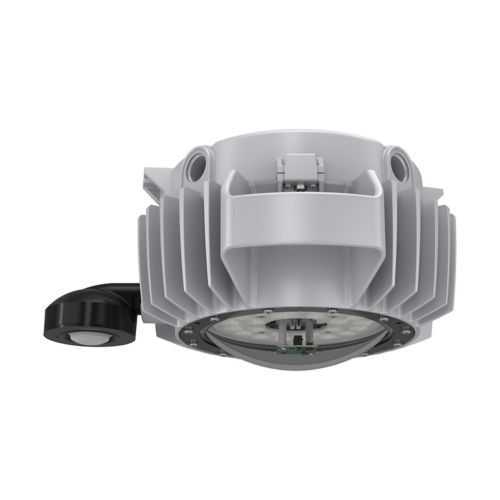

Eaton VMVL-3-A2-UNV1-SS12-M3 Intelligent LED Light Fixture - IP66

Part Number: VMVL-3-A2-UNV1-SS12-M3
VMVL-3-A2-UNV1-SS12-M3
Manufacturer
Eaton
Part number
VMVL-3-A2-UNV1-SS12-M3
Category

Quick Summary

VMVL-3-A2-UNV1-SS12-M3 is an intelligent LED light fixture delivering reliable illumination for hazardous-location environments. This solution addresses the common challenge of maintaining safe, compliant lighting in demanding industrial facilities where downtime is costly. With rugged construction and advanced optics, it minimizes maintenance cycles while improving operator visibility. Notable certifications include NEC/CEC IEC compliance for broad electrical compatibility, IP66 ingress protection for moisture and dust resistance, and NEMA 4X enclosures for corrosion resistance. Additional assurance comes from IECEx/ATEX Zone 21 ratings, ensuring suitability in hazardous zones. By combining a dimmable driver, sensor-ready features, and universal voltage, this fixture delivers predictable performance and energy efficiency for your safety-critical operations and long-term total cost of ownership.

Product Information

Extended Description

VMVL-3-A2-UNV1-SS12-M3 Eaton: Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, Pendant mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 21W
Product Name
Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture
Catalog Number
VMVL-3-A2-UNV1-SS12-M3
UPC
662277166935
Product Length/Depth
18.25 in
Product Height
6.5 in
Product Width
16 in
Product Weight
14.98 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Division 2 Class III Class I, Zone 2 Class II, Division 2
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
156
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
21W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
Special features
Sensor with barrier board
SP3D Design Package - Champ VMVL LED Intelligent Lighting Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ VMVL LED Intelligent lighting - catalog pages Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ Intelligent Lighting FAQs Crouse-Hinds series Champ VMVL LED Intelligent ies photometric files
Luminaire efficiency and output: The 21 W fixture delivers 3000 lumens at 156 lm/W with a cool white color temperature, reducing energy use while maintaining high-contrast visibility in challenging environments. Business impact: lower electricity costs and extended lamp life. Application: warehouses and production floors in hazardous locations benefit from consistent illumination and reduced maintenance intervals. Robust enclosure and optics: Die-cast aluminum housing with heat- and impact-resistant glass and a Type V distribution ensures uniform coverage, supporting safer material handling and process control. Business impact: improved safety metrics and lower operator fatigue, especially in large-area facilities. Environmental protection: IP66 and NEMA 4X ratings guard against dust, water ingress, and corrosion in marine and industrial settings. Application: offshore platforms, chemical plants, and outdoors. Compatibility: 100-277 VAC and 127-250 VDC with a dimmable driver, enabling daylight harvesting and reduced energy spend. Industry context: sensor-ready features and barrier-board integration align with modern smart-facility strategies.

Get a Quick Quote for a Eaton VMVL-3-A2-UNV1-SS12-M3

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton VMVL-3-A2-UNV1-SS12-M3? Enquire Now

FAQs

The VMVL-3-A2-UNV1-SS12-M3 uses pendant mounting for easy installation in high-ceiling industrial settings, with a 18.25 in length and 16 in width footprint for predictable alignment.
Yes. It carries NEC/CEC IEC compliance and hazardous-location ratings including Class I, Division 2 and Zone 2, plus IECEx/ATEX Zone 21, making it appropriate for classification and hazardous-area applications.
The fixture operates on 100-277 VAC and 127-250 VDC, drawing 21 W with a power factor > 0.90 and a 50/60 Hz frequency rating, and it is dimmable.
It provides 3000 lumens with a cool white color temperature, offering Type V optical distribution for uniform lighting across the target area.
Access SP3D design packages, brochures, quick-start guides, catalog pages, certification reports, and IES photometric files from Eaton's VMVL product downloads.
