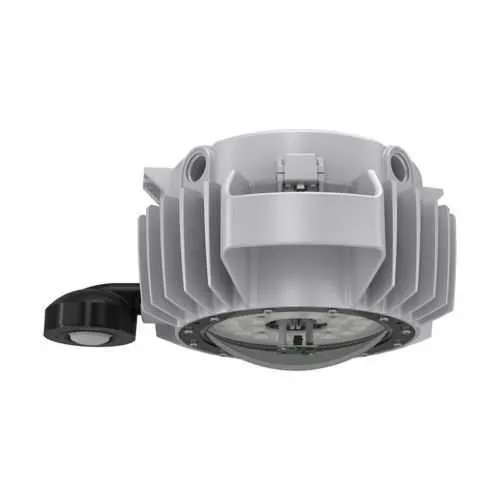

Eaton VMVL-3-UNV1-SS12-M3 LED Light Fixture - IP66, Hazardous

Part Number: VMVL-3-UNV1-SS12-M3
VMVL-3-UNV1-SS12-M3
Manufacturer
Eaton
Part number
VMVL-3-UNV1-SS12-M3
Category

Quick Summary

Eaton VMVL Intelligent LED light fixture provides reliable illumination for hazardous locations in industrial facilities. The design aims to eliminate common retrofit pain points where performance and safety are compromised by harsh environments. Recognized for IP66 ingress protection, NEMA 4X ruggedness, and IECEx/ATEX Zone 21 suitability, this luminaire meets NEC/IEC standards while delivering consistent light output. By combining dimmable control, high efficiency, and robust construction, it supports energy savings, reduced maintenance, and safer, code-compliant operations in demanding applications. This makes it a compelling choice for engineers seeking intelligent lighting that aligns with modern facility management and compliance goals.

Product Information

Extended Description

VMVL-3-UNV1-SS12-M3 Eaton: Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 21W
Product Name
Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture
Catalog Number
VMVL-3-UNV1-SS12-M3
UPC
662277166928
Product Length/Depth
18.25 in
Product Height
6.5 in
Product Width
16 in
Product Weight
14.98 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Division 2 Class III Class I, Zone 2 Class II, Division 2
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
156
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
21W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
Special features
Sensor with barrier board
SP3D Design Package - Champ VMVL LED Intelligent Lighting Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ VMVL LED Intelligent lighting - catalog pages Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ Intelligent Lighting FAQs Crouse-Hinds series Champ VMVL LED Intelligent ies photometric files
Feature: Dimmable 21W driver delivers 3000 lm with 156 lm/W efficiency, enabling precise light control and energy savings. Business Impact: Reduces utility costs while maintaining coverage in process areas and workcells. Application: Chemical plants and oil & gas facilities requiring adjustable lighting in hazardous zones. Feature: Sensor with barrier board integrated option supports smart sensing without extra enclosure costs. Business Impact: Facilitates occupancy or ambient sensing, improving safety and reducing energy waste in unmanned periods. Application: Remote storage, blast areas, and exterior perimeters around hazardous locations. Feature: Die cast aluminum housing with heat and impact resistant glass lens protects against harsh conditions. Business Impact: Extends product life, lowers maintenance cycles, and minimizes replacement parts. Application: Marine, industrial, and classified locations with vibration or impact exposure. Feature: Type V optical distribution and no mounting module requirement simplify installation and ensure consistent light throw. Business Impact: Faster commissioning and predictable coverage in retrofit or new builds. Application: Vessel interiors, warehouses, and plant floors where robust, uniform illumination is needed. Feature: Voltage versatility 100-277 Vac and 127-250 Vdc supports diverse power systems. Business Impact: Reduces stocking complexity and enables global deployments with a single SKU. Application: Multisite facilities with mixed power architectures. Feature: IP66, NEMA 4X, and Zone 21/ hazardous area certifications provide compliance assurance. Business Impact: Compliance-driven risk reduction and insurance alignment for hazardous environments. Application: Mining, petrochemical, and heavy industry where safety and regulatory adherence are critical. Feature: Cool white color temperature and Type V optics optimize visibility and color recognition. Business Impact: Improves operator accuracy and reduces error rates in high-risk tasks. Application: Control rooms, maintenance bays, and process monitoring stations. By weaving these features into a single luminaire, Eaton VMVL supports a turnkey, code-compliant lighting upgrade with measurable efficiency and safety benefits.

Get a Quick Quote for a Eaton VMVL-3-UNV1-SS12-M3

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton VMVL-3-UNV1-SS12-M3? Enquire Now

FAQs

The VMVL-3-UNV1-SS12-M3 supports universal voltage 100-277 Vac and 127-250 Vdc with a dimmable driver, enabling compatibility with a wide range of dimming controls. It ships without a mounting module, so installation typically requires a suitable mounting method suited to hazardous locations. The unit also features a sensor option with barrier board for smart control, simplifying integration into existing control architectures while maintaining compliance with NEC/IEC standards.
Key specs include 3000 lumens at an efficiency of 156 lm/W, a 21-watt power draw, and a power factor greater than 0.90. The luminaire operates at 50/60 Hz and supports 100-277 Vac or 127-250 Vdc, with Type V optics and a heat resistant glass lens. These figures translate to dependable, energy-efficient illumination with strong electrical performance in demanding environments.
Yes. VMVL is designed for Hazardous/Classified Locations with certifications including NEC/IEC compliance, IECEx/ATEX Zone 21, and Class I, Division 2, Class II, Division 2 ratings. Its IP66 and NEMA 4X ratings provide robust ingress protection and environmental sealing. The combination of dimmable control, sensor options, and Type V optics makes it well-suited for process areas, offshore facilities, and other high-risk industrial settings.
The VMVL series carries multiple certifications for hazardous environments, including Zone 21 (IECEx/ATEX), NEC/IEC compliance, and NEMA 4X with IP66. Marine and offshore suitability is supported by UL certification documentation and associated marine-related certifications referenced in Eaton’s literature, ensuring compliance with marine electrical standards and ruggedized construction for challenging environments.
Upgrade ROI comes from reduced energy use due to 21 W consumption driving 3000 lumens at 156 lm/W, plus long life and minimal maintenance due to rugged die-cast aluminum housing and glass lens. Dimmable operation and sensor integration further cut energy costs in unmanned or shift-based scenarios. The result is lower operating expenses, fewer maintenance events, and improved safety compliance in hazardous locations.
