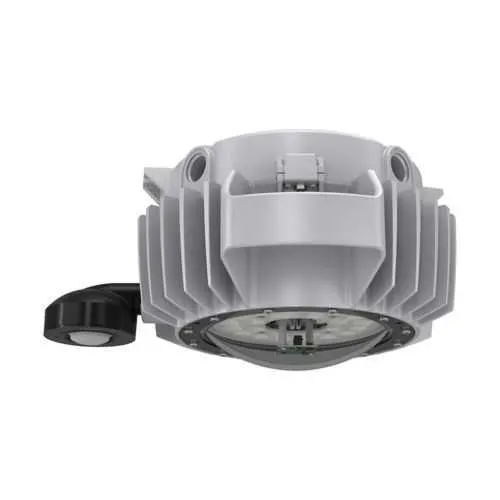

Eaton VMVL-7-C2-UNV1-SS12-M3 Intelligent LED Fixture - IP66

Part Number: VMVL-7-C2-UNV1-SS12-M3
VMVL-7-C2-UNV1-SS12-M3
Manufacturer
Eaton
Part number
VMVL-7-C2-UNV1-SS12-M3
Category

Quick Summary

VMVL-7-C2-UNV1-SS12-M3 Intelligent LED light fixture provides reliable, high-output illumination for hazardous and industrial spaces. Engineers seeking to minimize downtime and simplify maintenance often confront complex installations and varying regional voltages; this model addresses that with a wide voltage range and dimmable performance. This luminaire holds NEC/CEC IEC standards, IECEx/ATEX Zone 21 hazardous ratings, and IP66 with NEMA 4X protection, supporting tough environments. For procurement and operational value, the solution pairs sensor-enabled capability with a robust housing and Type V optics, delivering consistent coverage while reducing energy use and lifecycle costs.

Product Information

Extended Description

VMVL-7-C2-UNV1-SS12-M3 Eaton: Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 156 lm/W, Die cast alum, Ceiling mt, Type V optics, Sensor, 3/4", 100-277Vac, 127-250Vdc, 50W
Product Name
Eaton Crouse-Hinds series Champ VMVL Intelligent LED light fixture
Catalog Number
VMVL-7-C2-UNV1-SS12-M3
UPC
662277167000
Product Length/Depth
18.25 in
Product Height
6.5 in
Product Width
16 in
Product Weight
14.98 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Division 2 Class III Class I, Zone 2 Class II, Division 2
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
156
Color temperature
Cool white
Mounting Method
Ceiling
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
50W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
Special features
Sensor with barrier board
SP3D Design Package - Champ VMVL LED Intelligent Lighting Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Crouse-Hinds series Champ VMVL LED Intelligent lighting - brochure Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ VMVL LED Intelligent lighting - catalog pages Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ VMVL LED Intelligent lighting Canadian certification (Zone Classified) Champ Intelligent Lighting FAQs Crouse-Hinds series Champ VMVL LED Intelligent ies photometric files
Feature → Business Impact → Application: 7000 lumens at 156 lm/W delivers bright, uniform illumination with fewer fixtures needed, reducing capital expenditure and maintenance cycles in high-bay industrial spaces. Feature → Hazardous location ratings (NEC/CEC IEC; NEC Class I Division 2; Zone 21) → Compliance assurance and safer operation in classified environments, such as chemical plants and refineries. Feature → Dimmable driver and sensor-ready design → Energy savings through occupancy-based control, extending component life and lowering ongoing operating costs in factories and warehouses. Feature → Wide voltage range 100-277 Vac / 127-250 Vdc → Simplified procurement across global sites and easier stocking for multi-region projects. Feature → Die-cast aluminum enclosure with IP66 and 4X protection → Rugged reliability in dusty, wet, or corrosive environments, minimizing downtime. Feature → Type V optical distribution with heat and impact resistant glass lens → Improved area coverage and resilience, suitable for ceiling-mounted high-bay layouts and harsh conditions. Feature → Sensor with barrier board → Enhanced reliability in hazardous spaces, enabling proactive maintenance and safer occupancy sensing in control rooms and production lines.

Get a Quick Quote for a Eaton VMVL-7-C2-UNV1-SS12-M3

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton VMVL-7-C2-UNV1-SS12-M3? Enquire Now

FAQs

Installation in hazardous locations requires adherence to NEC/CEC IEC and IECEx/ATEX guidelines. Mount the fixture on a ceiling surface using standard hardware, connect to a compatible 100-277 Vac or 127-250 Vdc supply, and verify proper sealing and lens integrity. The unit’s sensor-ready design and 3/4 inch mounting provisions support straightforward integration into existing control schemes while maintaining Zone 21 compliance.
The VMVL fixture carries NEC/CEC IEC standards, NEC hazardous ratings including Class I Division 2 and Zone 2, Zone 21 IECEx/ATEX, NEMA 4X, and IP66 ingress protection. These certifications ensure suitability for hazardous/classified locations, outdoor-mentality exposure, and demanding industrial environments with reliable electrical safety and performance.
The luminare operates at 50 W with 7000 lumens and 156 lm/W efficacy. It supports a voltage range of 100-277 Vac and 127-250 Vdc, with a dimmable driver and 50/60 Hz frequency. The power factor is greater than 0.90, delivering efficient energy use and stable operation across global electrical standards.
Yes. VMVL is designed for hazardous locations and is certified for Class I Division 2, Class III, Zone 2, and Zone 21 per IECEx/ATEX. Its IP66/NEMA 4X housing, heat-resistant glass lens, and Type V optics provide robust protection against dust, water, and potential impact, making it suitable for demanding zone classifications.
With 7000 lumens at 50 W and sensor-ready dimming, the VMVL reduces the number of fixtures needed and lowers energy consumption. The durable die-cast aluminum enclosure and high ingress protection decrease replacement cycles, while sensor automation minimizes unnecessary lighting, delivering faster payback and lower lifecycle costs in harsh environments.
