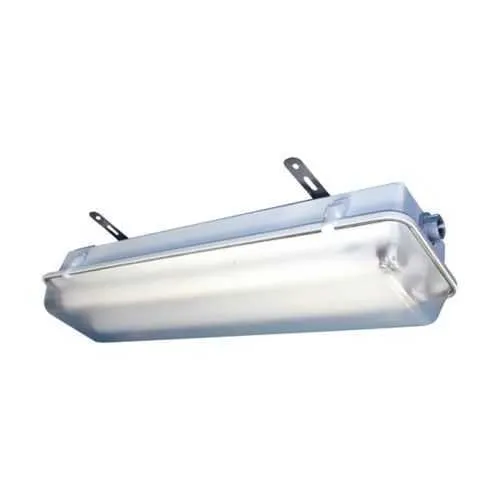

Eaton VP42170 VersaPro VP Linear Fluorescent Fixture - NEMA 3R
Part Number: VP42170
Quick Summary
VP42170 Eaton VersaPro linear fluorescent light fixture provides reliable industrial lighting for harsh environments. Maintenance challenges and inconsistent illumination can cripple production—this through-feed luminaire is designed for quick installation and consistent performance. It complies with NEC/CEC standards and carries a NEMA 3R rating, making it appropriate for ordinary/non-hazardous locations where rugged protection is needed. With a 4 ft, 2-lamp design at 32W and universal 120-277 Vac operation, it supports energy efficiency and long service life for industrial lighting and facility upgrades. The acrylic lens and fiberglass-reinforced housing further enhance durability, reducing replacement costs in demanding facilities and enabling quieter, cleaner maintenance cycles.
Product Information
Extended Description
VP42170 Eaton: Eaton Crouse-Hinds series Pauluhn VersaPro VP linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn VersaPro VP linear fluorescent light fixture
Catalog Number
VP42170
UPC
662276416147
Product Length/Depth
49.81 in
Product Height
5 in
Product Width
7 in
Product Weight
12.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Lamp type
Fluorescent
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
32W
Material
Fiberglass-reinforced polyester
Lens material
Acrylic
Crouse-Hinds series Pauluhn VersaPro Industrial Linear Fluorescent catalog page
IF LBL1376 - Pauluhn VersaPro Linear Fluorescent
Eaton Specification Sheet - VP42170
Feature → Business Impact → Application: The VP42170 uses a 4 ft, 2-lamp, 32W configuration with 120-277 Vac operation, enabling energy-efficient lighting for broad workspace coverage and compatible voltage across multiple facilities. This supports lower operating costs and simplified forecourt planning in manufacturing floors and assembly lines. Application: ideal for ordinary/non-hazardous locations requiring reliable illumination with minimal maintenance in industrial settings. Feature → Business Impact → Application: Through-feed design with 1/2" entry and (2) NPT hubs allows straightforward wiring and flexible mounting, reducing installation time and field modification costs. Application: retrofit projects and new builds where fast deployment and scalable electrical connectivity are priorities in warehouses and production zones. Feature → Business Impact → Application: Fiberglass-reinforced polyester housing and acrylic lens deliver corrosion resistance and impact-tolerant performance, extending service life in harsh industrial environments. Application: facilities with routine washdowns or exposure to dust and debris, including general manufacturing and process areas. Feature → Business Impact → Application: NEC/CEC compliance and NEMA 3R rating provide regulatory alignment and rugged protection, lowering compliance risk and enabling safer operation in non-hazardous locations. Application: maintenance planning, asset management, and facility upgrades in plants and distribution centers. Feature → Business Impact → Application: 4 ft, 50/60 Hz operation with 32W lamps enables reliable, long-lasting illumination for mid-size workspaces, improving workflow efficiency and reducing re-lamping frequency. Application: general lighting upgrades across industrial facilities seeking cost-effective, durable fluorescent solutions.
Get a Quick Quote for a Eaton VP42170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton VP42170?
Enquire Now
FAQs
VP42170 is designed for through-feed wiring with two NPT hubs and a 1/2 inch entry. For installation, route supply conductors through the hubs, maintain correct spacing for the 49.81 inch length, and connect to a single 120-277 Vac supply. The design supports quick field wiring, minimizes the need for additional junction boxes, and simplifies daisy-chaining across sections of a facility.
Yes. VP42170 is intended for ordinary/non-hazardous locations and complies with NEC/CEC standards. It also carries a NEMA 3R rating, providing rugged protection suitable for indoor and some outdoor-adjacent environments. These certifications help facilities meet regulatory requirements, simplify inspections, and reduce risk when upgrading general lighting across production floors and warehouses.
VP42170 operates at 120-277 Vac and 50/60 Hz, with a 32W rating and two 4 ft fluorescent lamps using T8 bi-pin bases. The unit is a 2-lamp, 4 ft fixture with an acrylic lens and a fiberglass-reinforced polyester housing, designed for durable, long-life operation in industrial settings while delivering consistent lumen output.
The VP42170 offers energy-efficient 32W performance, a rugged housing, and a through-feed wiring configuration that speeds installation. Its 4 ft, 2-lamp design provides broad illumination for work surfaces, while the acrylic lens resists impact and is easy to maintain. Combined with NEC/CEC compliance and NEMA 3R protection, it supports reliable uptime and a favorable ROI for facility upgrades.
To maximize ROI, schedule regular cleaning of the acrylic lens to maintain light output, monitor lamp life for timely replacements, and keep the through-feed connections secure to prevent voltage drop. The fixture’s rugged housing and long service life reduce replacement frequency, while the 120-277 Vac universal input simplifies stocking and maintenance across multi-site operations.
