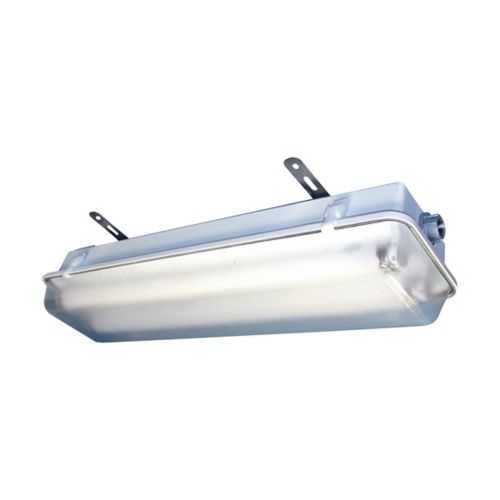

Eaton VPH22270L VersaPro Linear Fluorescent - Class I Div 2
Part Number: VPH22270L
Quick Summary
The Eaton VPH22270L VersaPro linear fluorescent fixture provides hazard-rated illumination for hazardous locations in industrial facilities. When downtime or noncompliant lighting stalls operations, reliable, compliant lighting is critical. It carries NEC/CEC compliance, Class I Division 2, Zone 2, plus Class II Division 2, Class III, and NEMA 3R protection for rugged environments. The fixture's through-feed design, 40-watt two-lamp configuration, and 120–277 VAC range simplify installation and maintenance planning in hazardous facilities. Lamps included reduce maintenance downtime and ensure you are start-to-finish ready after installation. The rugged fiberglass-reinforced polyester housing and vandal-resistant acrylic lens help protect optics and electronics in harsh environments. With two NPT hubs and a 1/2 in entry, through-feed wiring is streamlined, reducing install time and potential leakage paths.
Product Information
Extended Description
VPH22270L Eaton: Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture,1/2",(2) NPT hubs,50/60 Hz,2 ft lamp,Acrylic lens,CF 2G11,Fiberglass-reinforced polyester,2-lamp,Lamps included,Through feed,120-277 Vac,40W
Product Name
Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture
Catalog Number
VPH22270L
UPC
662276874510
Product Length/Depth
25.8 in
Product Height
5 in
Product Width
7 in
Product Weight
8.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
3R
Lamp type
Fluorescent
Lamp length
2 ft
Number of lamps
2-lamp
Light type
CF 2G11
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
40W
Material
Fiberglass-reinforced polyester
Lens material
Acrylic
Special features
Lamps included
Crouse-Hinds series Pauluhn VersaPro Hazardous Area Linear Fluorescent catalog page
IF LBL1376 - Pauluhn VersaPro Linear Fluorescent
Eaton Specification Sheet - VPH22270L
Feature: Hazardous-location certification and broad voltage range. Business Impact: Regulatory compliance and operational flexibility across multiple sites. Application: Chemical plants, oil and gas facilities, mining operations. The VersaPro VPH22270L is rated for Hazardous/Classified Locations with a wide 120-277 VAC, 50/60 Hz supply, supporting reliable operation where safety codes are stringent and power availability varies. Feature: Two-lamp 40W fluorescent configuration with CF 2G11 base and acrylic lens. Business Impact: High-quality, consistent illumination with predictable maintenance cycles and easy replacement, minimizing downtime and maximizing productivity. Application: Through-feed fixtures in process areas where lighting continuity matters. Feature: Fiberglass-reinforced polyester housing and vandal-resistant design. Business Impact: Durable, corrosion-resistant protection suitable for harsh environments, reducing replacement costs. Application: Outdoor shelters and indoor facilities with chemical exposure. Feature: Through-feed wiring with two NPT hubs and 1/2 inch entry. Business Impact: Faster, cleaner installation with minimized field modifications and leakage paths. Application: Retrofit projects and new installations in hazardous locations. Feature: NEMA 3R enclosure rating and NEC hazardous ratings (Class I Division 2, Zone 2; Class II Division 2; Class III). Business Impact: Weather and corrosion resistance plus broad regulatory compliance. Application: Sheltered outdoor installations and damp indoor environments where reliable lighting is essential.
Get a Quick Quote for a Eaton VPH22270L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton VPH22270L?
Enquire Now
FAQs
The VPH22270L is designed for hazardous classifications and offers through-feed wiring with two NPT hubs and a 1/2 inch entry. It operates at 120-277 VAC and supports a 50/60 Hz supply, making it suitable for Class I Division 2 and Zone 2 environments. Plan for proper enclosure protection and compliant mounting hardware to maintain NEC/CEC conformity.
Yes, the fixture uses CF 2G11 fluorescent lamps and arrives with lamps included. This reduces installation downtime and ensures immediate operation after startup. The two-lamp configuration provides balanced illumination across 2 ft lamp length, aligning with typical hazardous-location lighting requirements.
The VPH22270L carries NEC/CEC compliance and NEC hazardous ratings including Class I Division 2, Zone 2; Class II Division 2; and Class III. It also has a NEMA 3R enclosure rating, indicating suitability for weather-protected environments and rugged industrial installations.
The fixture measures 25.8 inches in length, 7 inches in width, and 5 inches in height, with a total weight of 8.5 pounds. These dimensions support standard mounting and alignment in industrial fixtures while providing a compact footprint for limited ceiling clearance.
This luminaire is intended for hazardous/classified locations in industrial settings such as chemical plants, refineries, mining operations, and bulk storage areas. Its rugged housing, acrylic lens, and NEMA 3R rating enable reliable operation in environments with dust, moisture, or chemical exposure while maintaining compliance with safety standards.
