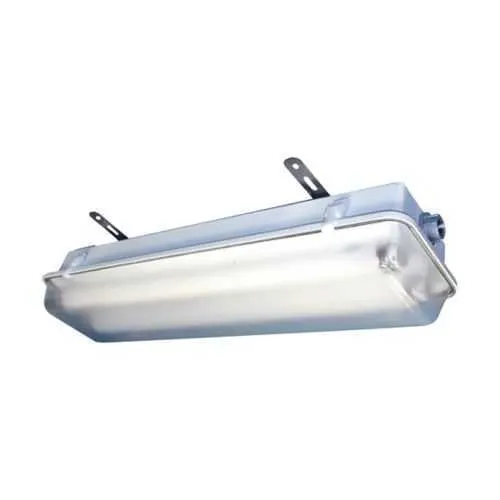

Eaton VPH42172 VersaPro Light Fixture - Hazardous Location
Part Number: VPH42172
Quick Summary
The Eaton VPH42172 VersaPro linear fluorescent light fixture is a rugged, high-performance solution for hazardous and classified locations. Engineers often struggle to find lighting that meets strict safety codes while delivering reliable uptime in harsh environments. This model carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2 and Zone 2, along with a rugged NEMA 3R enclosure for weather and impact resistance. With a 4 ft, 2-lamp design and 32 W total output at 120–277 VAC, it harmonizes energy efficiency with durable construction. Installation is streamlined thanks to a 1/2" entry and two NPT hubs, making retrofits and new builds straightforward in industrial spaces such as chemical plants and refineries.
Product Information
Extended Description
VPH42172 Eaton: Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture,1/2",(2) NPT hubs,50/60 Hz,4 ft lamp,Acrylic lens,T8 bi-pin,Fiberglass-reinforced polyester,Pendant mount,2-lamp,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture
Catalog Number
VPH42172
UPC
662276874534
Product Length/Depth
49.81 in
Product Height
5 in
Product Width
7 in
Product Weight
12 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
3R
Lamp type
Fluorescent
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
32W
Material
Fiberglass-reinforced polyester
Lens material
Acrylic
Crouse-Hinds series Pauluhn VersaPro Hazardous Area Linear Fluorescent catalog page
IF LBL1376 - Pauluhn VersaPro Linear Fluorescent
Feature → Business Impact → Application: The VersaPro VPH42172 uses a 4 ft, 2-lamp fluorescent configuration with T8 bi-pin lamps and a 32 W rating, delivering balanced illumination while minimizing energy use. This reduces operating costs and improves worker safety in process areas and maintenance corridors. Application: ideal for manufacturing floors, paint shops, and controlled industrial environments where lighting uptime and efficiency matter. Feature → Business Impact → Application: The housing is fiberglass-reinforced polyester with an acrylic lens, providing chemical resistance and impact durability that extend service life in corrosive spaces. Application: supports plants with aggressive atmospheres, such as chemical processing or waterfront facilities. Feature → Business Impact → Application: Two NPT hubs and a 1/2" entry enable flexible conduit routing and straightforward installation, cutting field labor time and wiring errors. Application: retrofits and new builds where fast, code-compliant mounting is essential. Feature → Business Impact → Application: 120–277 VAC operation with 50/60 Hz compatibility delivers universal compatibility with existing electrical systems, reducing inventory of drivers and adapters. Application: upgrades across varied power infrastructure. Feature → Business Impact → Application: Hazardous/Classified Locations and NEC/CEC compliance coupled with a NEMA 3R enclosure maximize safety and regulatory peace of mind, supporting long-term maintenance planning. Application: use in chemical plants, refineries, and other hazardous environments demanding compliant lighting that lasts.
Get a Quick Quote for a Eaton VPH42172
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton VPH42172?
Enquire Now
FAQs
The VPH42172 is designed for straightforward installation in hazardous environments, featuring a 1/2" entry and two NPT hubs that simplify conduit routing. Its rugged housing, acrylic lens, and compliant wiring methods reduce field complexity, while the 4 ft length and 2-lamp configuration minimize replacement intervals and downtime during retrofit projects.
This fixture supports NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2 and Zone 2, as well as Class II, Division 2 and Class III. It also carries a NEMA 3R enclosure rating, providing protection against rain, ice, and corrosion in outdoor or harsh indoor settings.
Yes. The VPH42172 operates across a broad 120–277 VAC range at 50/60 Hz, enabling seamless integration with diverse electrical infrastructures without requiring special drivers or transformers, which simplifies procurement and reduces installation time.
Maintenance benefits arise from its durable fiberglass-reinforced polyester housing and acrylic lens, reducing corrosion and impact damage. The 4 ft, 2-lamp design also allows straightforward lamp replacement and cleanability in dusty or oily environments. Regular inspections should verify seals around the entry points and mount integrity in high-traffic or vibrating areas.
ROI comes from improved safety compliance, reduced maintenance cycles, and lower energy consumption due to the 32 W, 4 ft, 2-lamp configuration. The durable construction minimizes replacement costs in harsh environments, while universal 120–277 VAC compatibility lowers inventory needs and accelerates project timelines.
