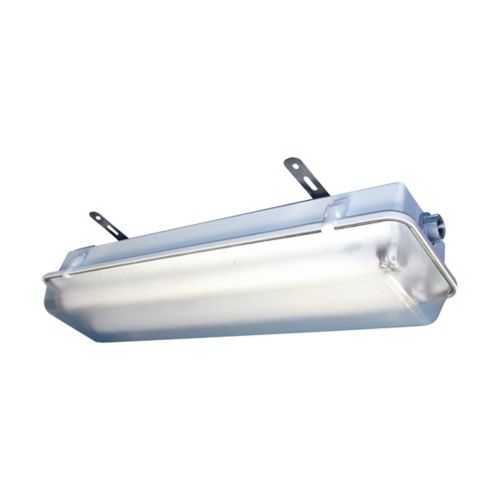

Eaton VPH84571 VersaPro Linear Light Fixture - Hazardous Locations
Part Number: VPH84571
Quick Summary
The Eaton VPH84571 VersaPro linear light fixture provides reliable illumination for hazardous-location environments. But in hazardous locations, traditional lighting can fail to meet safety standards or endure harsh environments, triggering costly downtime. This fixture carries NEC/CEC compliance with Class I Division 2 and Zone 2 ratings, plus NEMA 3R protection for outdoor or wet environments. Designed for through-feed installation, it supports long runs with minimal field wiring while offering flexible mounting options. By combining durable construction with energy-aware performance, it helps facilities reduce maintenance costs and extend uptime across hazardous-area operations.
Product Information
Extended Description
VPH84571 Eaton: Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture,3/4",(2) NPT hubs,50/60 Hz,8 ft lamp,Acrylic lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,4-lamp,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn VersaPro VPH linear fluorescent light fixture
Catalog Number
VPH84571
UPC
662276874558
Product Length/Depth
97.81 in
Product Height
5.4 in
Product Width
7 in
Product Weight
32 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
3R
Lamp type
Fluorescent
Lamp length
8 ft
Number of lamps
4-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) NPT hubs
Wattage
54W
Material
Fiberglass-reinforced polyester
Lens material
Acrylic
Crouse-Hinds series Pauluhn VersaPro Hazardous Area Linear Fluorescent catalog page
IF LBL1376 - Pauluhn VersaPro Linear Fluorescent
Eaton Specification Sheet - VPH84571
Long-arc 8 ft, 4-lamp fluorescent configuration provides high-intensity, uniform illumination. Business impact: improves worker visibility and process clarity, reducing error rates and rework. Application: ideal for long aisles, production lines, and hazardous-area work zones in plants. Through-feed wiring with two NPT hubs simplifies field installation and future expansions. Business impact: enables flexible electrical routing and faster retrofits. Application: installations in restricted spaces and evolving plant layouts. Fiberglass-reinforced polyester housing and acrylic lens offer chemical resistance and durable visibility. Business impact: extends service life in harsh environments and reduces lens fogging. Application: chemical plants, offshore platforms, mining sites. 120-277 VAC, 50/60 Hz operation provides regional compatibility. Business impact: lowers inventory needs across multi-site operations. Application: global facilities with mixed-power requirements. NEC/CEC compliance with Class I Division 2, Zone 2 ratings and NEMA 3R protection. Business impact: simplifies regulatory adherence and ensures weather/debris resilience. Application: hazardous/classified locations. Through-feed mounting, 3/4" entry, and (2) NPT hubs enable retrofit and new-install flexibility. Business impact: supports scalable lighting upgrades with minimal disruption. Application: retrofits and new plant installations in harsh environments.
Get a Quick Quote for a Eaton VPH84571
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton VPH84571?
Enquire Now
FAQs
The VPH84571 uses a through-feed design with a 3/4" entry and two NPT hubs, allowing flexible conduit routing. It operates on 120-277 VAC at 50/60 Hz and comes as an 8 ft, 4-lamp unit with an acrylic lens. Mounting patterns and hardware support secure installations in ceiling grids and hazardous-area enclosures, simplifying both new builds and retrofits.
Safety coverage includes NEC/CEC standards and NEC hazardous ratings for Class I Division 2, Zone 2, plus Class II Division 2 and Class III where applicable. The unit also carries NEMA 3R protection, ensuring weather and impact resistance. These certifications support compliance in chemical plants, refineries, and other classified locations.
Yes. The VPH84571 is designed for retrofit and new installs with standard 8 ft length, 3/4" entry, and (2) NPT hubs. Its 4-lamp, 54W configuration is compatible with common 8 ft fluorescent ballasts, reducing wiring changes and enabling quick upgrades in hazardous environments without major electrical remodels.
Maintenance planning centers on lamp replacement cycles for 54W T5HO mini bi-pin lamps and lens clarity. The acrylic lens maintains visibility under tough conditions, while the fiberglass-reinforced polyester housing resists chemicals and impacts. Routine checks focus on lamp replacement timing, ballast health, and ensuring seals remain intact for continued hazardous-location integrity.
ROI is driven by energy efficiency, with 54W per fixture reducing power draw versus older systems, and by lower maintenance downtime due to rugged construction. The through-feed design supports scalable layouts, minimizing retrofit complexity and labor. In hazardous environments, improved uptime and regulatory compliance translate to faster payback and lower total cost of ownership.
