Eaton WACD-C7-SP-L Wi-Fi Smart Dimmer - cULus Listed
Part Number: WACD-C7-SP-L
Quick Summary
Eaton Wi-Fi smart dimmer delivers wireless lighting control for multi-location circuits in commercial and residential spaces. Engineers and procurement teams frequently face dimmers that lack remote management or robust three-way wiring support, resulting in on-site adjustments and slower installs. This model is cULus Listed and NOM certified, supports single-pole and three-way operation, and is rated for 120 V with an operating range of 32 to 104 °F, ensuring dependable performance in typical indoor environments. By leveraging flush mounting, back- and side-wire wiring, and compatibility with the WFD30 accessory dimmer, it simplifies procurement, reduces field rework, and drives energy-management initiatives across projects.
Product Information
Extended Description

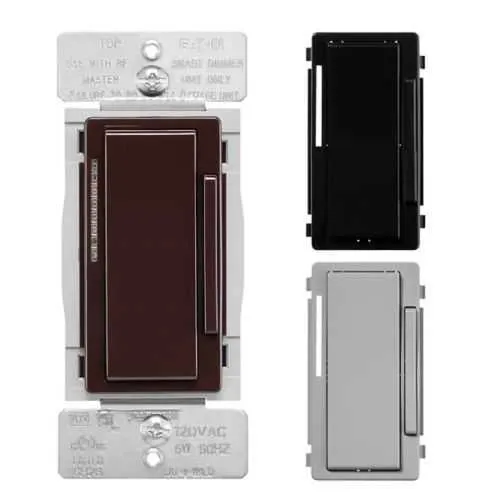

WACD-C7-SP-L Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, Black, Brown, and Gray, Single-pole, Three-way, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, PC/PBT, WFD30, WiFi
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
WACD-C7-SP-L
UPC
032664761065
Product Length/Depth
2.36 in
Product Height
7.43 in
Product Width
3.77 in
Product Weight
0.28 lb
Compliances
cULus Listed
Certifications
NOM
Number Of Poles
Single-pole
Operating temperature
32 to 104 °F (0 to 40 °C)
Torque rating
16 lbf-inch
Voltage rating
120 V
Mounting method
Flush
Number of ways
Three-way
Wiring method
Back and side wire
Color
Brown Gray Black
Material
PC/PBT
Phase
Single-phase
Switch type
Multi-location
Used with
WFD30
Wi-Fi smart devices brochure
WACD-Accessory dimmer instruction sheet
WACD-Accessory dimmer instruction sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Eaton Specification Sheet - WACD-C7-SP-L
Eaton Specification Sheet - WACD-C7-SP-L
Wi-Fi connectivity enables remote control and scheduling from compatible apps, turning every lighting scheme into an easily managed system. The business impact is clearer energy reporting, reduced field visits, and faster changeovers during tenant improvements or retrofits. This is ideal for commercial offices, education facilities, and hospitality environments that demand reliable, scalable lighting control across multiple rooms. Three-way and multi-location support gives you flexible control without rewiring: a single device can govern lighting from multiple locations, and the WFD30 accessory expands reach where it matters most. The application is retrofit projects or new builds in which zoning and occupancy-based dimming drive energy costs down. Back and side wiring plus flush mounting simplify installation in standard wall boxes, cutting install time and minimizing disruption. The device is rated for 120 V, single-phase circuits, with a torque rating of 16 lbf-in for secure terminals, and it uses PC/PBT construction for durability in indoor environments. Compatibility with multi-location dimming and a range of colors improves aesthetics and compatibility with existing faceplates; its cULus Listed and NOM certifications support compliance in regulated facilities. The compact form factor and robust feature set reduce lifecycle maintenance and support ongoing energy-efficiency initiatives.
Get a Quick Quote for a Eaton WACD-C7-SP-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WACD-C7-SP-L?
Enquire Now
FAQs
Begin by turning off power at the breaker. Identify the line and load conductors, then connect the back and side wiring per the installation sheet. Mount flush in a standard wall box, tighten to 16 lbf-in torque, and pair with the WFD30 accessory dimmer if multi-location control is required. Verify polarity and test functionality before finalizing.
Yes. The WACD-C7-SP-L is designed to work with Eaton’s WFD30 accessory dimmer for extended multi-location control. Install the WFD30 following the published instructions, ensure proper wiring with back and side connections, and test dimming levels across all locations to confirm synchronized operation.
The WACD-C7-SP-L is cULus Listed and NOM certified, meeting key safety and regulatory requirements for indoor lighting control in North America. These certifications support compliance in commercial spaces, multifamily buildings, and hospitality environments.
The dimmer operates at 120 V and is rated for an ambient temperature range of 32 to 104 °F (0 to 40 °C). This makes it suitable for typical indoor environments such as offices, retail areas, and classrooms without special enclosure needs.
Benefits include remote lighting control via Wi‑Fi, improved energy management and scheduling, and reduced field service time through simpler installation and multi-location capability with WFD30. These factors translate into lower operating costs, faster project turnarounds, and better alignment with enterprise energy-efficiency goals.
