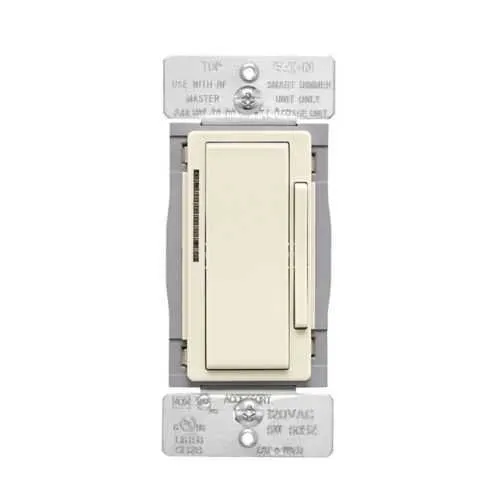

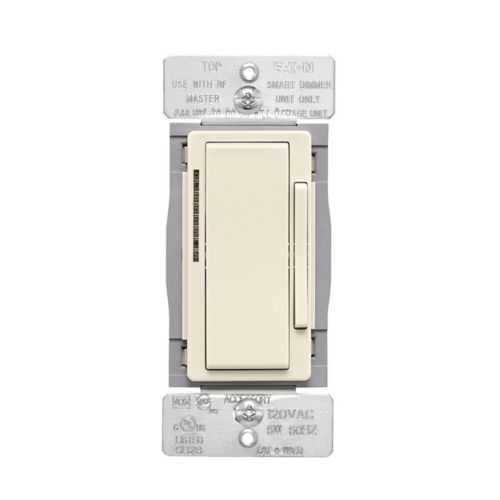

Eaton WACD-LA-SP-L Wi-Fi Dimmer - cULus Listed
Part Number: WACD-LA-SP-L
Quick Summary
The Eaton Wi-Fi smart dimmer provides wireless lighting control for residential and commercial spaces. Too often, traditional dimmers lack reliable remote access or fail to integrate smoothly with existing wiring, creating maintenance headaches and energy waste. It carries safety-focused certifications, including cULus Listed and NOM, to support compliant installations across North America and Latin America. With flush mounting, back and side wiring, and single‑pole or three‑way configurations, it scales from small offices to large facilities. For engineers and facility managers, this translates to faster commissioning, reduced installation costs, and a consistent user experience across sites while supporting scalable IoT-enabled lighting control.
Product Information
Extended Description
WACD-LA-SP-L Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, Light Almond, Single-pole, Three-way, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, PC/PBT, WFD30, WiFi
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
WACD-LA-SP-L
UPC
032664761089
Product Length/Depth
2.26 in
Product Height
6.41 in
Product Width
2.26 in
Product Weight
0.01 lb
Compliances
cULus Listed
Certifications
NOM
Number Of Poles
Single-pole
Operating temperature
32 to 104 °F (0 to 40 °C)
Torque rating
16 lbf-inch
Voltage rating
120 V
Mounting method
Flush
Number of ways
Three-way
Wiring method
Back and side wire
Color
Light almond
Material
PC/PBT
Phase
Single-phase
Switch type
Multi-location
Used with
WFD30
Wi-Fi smart devices brochure
WACD-Accessory dimmer instruction sheet
WACD-Accessory dimmer instruction sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Eaton Specification Sheet - WACD-LA-SP-L
Eaton Specification Sheet - WACD-LA-SP-L
Feature: Wireless Wi-Fi connectivity enables remote control and scheduling, reducing on-site visits and enabling centralized energy management. Business impact: lowers operating costs and improves uptime with proactive monitoring. Application: suitable for multi-location campuses, hospitality, and office environments seeking scalable lighting automation. Feature: Flush mounting and back-and-side wiring support simplifies retrofits and new installs, reducing wall depth and wiring complexity. Business impact: speeds up commissioning and lowers labor costs. Application: retrofit projects and new builds where space is at a premium. Feature: Single-pole and three-way capability with WFD30 compatibility enables flexible circuit design and future expansion. Business impact: minimizes device inventory and accelerates integration in diverse lighting schemes. Application: shared workspaces, classrooms, and retail spaces. Feature: Operating temperature range of 32 to 104 °F (0 to 40 °C) ensures reliable performance in varied environments. Business impact: enhances reliability in warehouses, mechanical rooms, and outdoor-adjacent spaces. Application: industrial facilities and service fleets. Feature: Torque rating of 16 lbf-in ensures secure mounting and lasting contact pressure. Business impact: reduces wobble and contact wear, extending device life. Application: high-traffic installations and long-term deployments. Feature: Material and color (PC/PBT, Light almond) provide durable aesthetics and compatibility with modern interiors. Business impact: maintains visual alignment with finishes while meeting tolerance requirements. Application: new construction and renovation projects requiring precise finish matching.
Get a Quick Quote for a Eaton WACD-LA-SP-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WACD-LA-SP-L?
Enquire Now
FAQs
For a safe installation, de-energize the circuit, verify line and load connections, and connect the dimmer using the back and side wiring terminals per the Eaton instructions. Mount flush in a standard wall box, secure the device, and restore power. Configure for single-pole or three-way use with the WFD30 accessory dimmer if multi-location control is required. Ensure compliance with local electrical codes and proper grounding.
Yes. The WACD-LA-SP-L is designed to work with Eaton's WFD30 accessory dimmer, enabling multi-location dimming in three-way configurations. This setup supports synchronized dimming scenes across multiple fixtures, reducing confusion for end users and enabling centralized control from compatible hubs or mobile apps. Verify wiring and phase alignment during installation to ensure reliable operation.
The device operates at 120 V with single-phase power and supports a single-pole or three-way setup. It tolerates an operating temperature range of 32 to 104 °F (0 to 40 °C). The torque rating is 16 lbf-in, which ensures secure terminal engagement. Use in standard indoor environments; avoid exposure to excessive moisture or explosive atmospheres to maintain performance.
The dimmer is cULus Listed and NOM certified, signaling compliance with recognized safety standards for North American and select Latin American markets. These certifications support safer installations, reduce regulatory risk, and facilitate procurement for facilities and engineers who must meet strict compliance requirements in multi-site deployments.
The dimmer provides remote and scheduled lighting control, enabling energy savings and reduced maintenance. Its compatibility with WFD30 supports scalable multi-location control, improving occupant comfort and consistency across sites. The flush-mount design and back-and-side wiring simplify retrofits, accelerating project timelines and lowering total cost of ownership for building operators.
