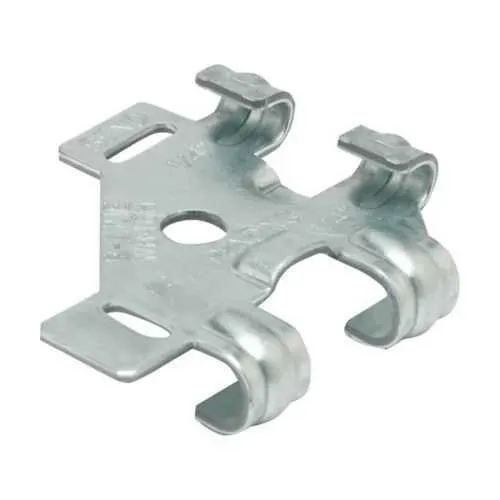

Eaton WB46HGLV Flextray attachment clip - UL Listed
Part Number: WB46HGLV
Quick Summary
The Eaton WB46HGLV Flextray attachment clip securely fastens Flextray components in cable tray systems. Designed for tight spaces and vibration-prone environments, it addresses loose fittings and corrosion risk that slow installs. UL Listed safety certification and the electro-plated zinc finish provide reliability in demanding industrial settings. Its compact footprint and compatibility with the B-Line Flextray family help speed installations. Together, these characteristics reduce maintenance needs while improving safety and wiring efficiency across large installations. This clip is compatible with Flextray wire basket catalogs and installation guides to streamline procurement and field assembly.
Product Information
Extended Description
WB46HGLV Eaton: Eaton B-Line series Flextray attachment clip, Flip Clip, Electroplated zinc galvanized
Product Name
Eaton B-Line series Flextray attachment clip
Catalog Number
WB46HGLV
UPC
782051439120
Product Length/Depth
0.375 in
Product Height
1 in
Product Width
1 in
Product Weight
0.104 lb
Certifications
UL Listed
Finish
Electro-plated
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - WB46HGLV
Eaton Specification Sheet - WB46HGLV
Feature: Compact Flip Clip design with a 1 x 1 x 0.375 inch footprint. Business Impact: Enables rapid, accurate alignment by a single technician, reducing installation time and minimizing handling errors. Application: Ideal for tight corridors and overhead runs in industrial facilities where space is limited. Feature: Electro-plated zinc galvanizing finish. Business Impact: Delivers enhanced corrosion resistance, extending service life in humid or harsh environments and lowering replacement costs. Application: Suitable for data centers, manufacturing floors, and outdoor-rated cable management applications. Feature: UL Listed certification. Business Impact: Provides safety assurance and procurement confidence, simplifying compliance during audits and inspections. Application: Required in electrical cable management projects adhering to safety standards. Feature: Compatibility with Eaton B-Line Flextray systems. Business Impact: Ensures a secure, vibration-resistant connection with minimal hardware, speeding field assembly. Application: Works across the Flextray wire basket section and related components. Feature: Lightweight, precise dimensions. Business Impact: Improves handling, reduces forklift or crane involvement, and lowers labor costs. Application: Fits standard 1 in by 1 in cable tray configurations. Feature: Availability of installation guides and datasheets. Business Impact: Lowers risk of misinstallation, supports correct torque and engagement, and streamlines training. Application: Used by installers and maintenance teams during onboarding and site upgrades.
Get a Quick Quote for a Eaton WB46HGLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WB46HGLV?
Enquire Now
FAQs
The WB46HGLV is designed to mate with Eaton B-Line Flextray components via the Flip Clip mechanism. Mount the clip to the Flextray section, align with the basket edge, and engage until it seats with a positive click. Use the installation guide to verify torque and seating depth, ensuring a secure, vibration-resistant connection suitable for overhead and floor-level runs.
Key specs include a 0.375 inch depth, 1 inch height, and 1 inch width, with a weight of 0.104 pounds. The catalog number WB46HGLV and UPC 782051439120 identify the exact clip. Finish is electro-plated zinc, and the part is UL Listed, confirming compliance for electrical installations.
Yes, the electro-plated zinc finish provides corrosion resistance suited for many industrial environments, including damp facilities. UL Listed status adds safety compliance for electrical cable management. For extreme or highly corrosive settings, verify system enclosure protection and consider additional protective measures in the Flextray assembly.
The WB46HGLV carries UL Listed certification, signaling safety conformity for electrical installations and compatibility with standard cable tray components. This certification simplifies auditing and procurement, helping ensure that Flextray assemblies meet industry safety requirements while maintaining performance in daily operation.
Using the WB46HGLV reduces installation time due to its compact footprint and Flip Clip design, cutting labor costs and potential rework. The corrosion-resistant finish lowers replacement frequency in challenging environments, and UL Listed compliance lowers compliance risk. Overall, expect lower lifecycle maintenance costs and faster, safer deployments in Flextray cable management projects.
