Eaton WCF100RN Fuse - Class CF 30 kA at 690 VAC
Part Number: WCF100RN
Quick Summary
The Eaton WCF100RN fuse protects industrial power circuits with fast-acting Class CF protection for control panels. Engineers often confront nuisance outages and component wear from under-protection or slow fault clearance; this cube fuse addresses that with precise current limiting and rapid fault interruption. It is CE marked and RoHS compliant, supporting regulatory alignment across European assemblies and global deployments. With compatibility across standard Bussmann series bases, it delivers reliable, scalable protection for motor drives, MCCs, and automation panels, delivering cost-effective reliability for long-term projects.
Product Information
Extended Description

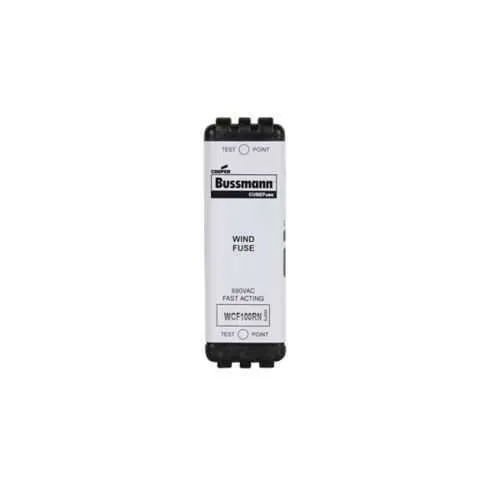

WCF100RN Eaton: Eaton Bussmann Series Class CF fuse, WCF, fast-acting, dual-element current limiting cube fuse, 100 A, finger safe, non-indicating fuse, interrupting rating of 30 kA at 690 Vac
Product Name
Eaton Bussmann series WCF fuse
Catalog Number
WCF100RN
UPC
051712395793
Product Length/Depth
3.01 in
Product Height
1.26 in
Product Width
1 in
Product Weight
1.74 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
100 A
Fuse type
CUBEFuse
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Fuse indicator
Non-indicating
Special features
Finger safe, non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Wind CUBEFuse data sheet no. 9009
The WCF100RN provides a high-current protection solution that aligns with common industrial loads. Feature: 100 A, 690 VAC rating; Business Impact: protects mid-to-high current control circuits from overcurrent events, reducing equipment damage and unplanned downtime; Application: motor feeders, PLC power rails, and control circuits in automation panels. Feature: Class CF fast-acting, dual-element design; Business Impact: quickly limits fault current, improving system stability and allowing faster recovery; Application: drives and equipment with short-circuit risk. Feature: 30 kA interrupting rating at 690 VAC; Business Impact: robust protection for faulted branches without upstream nuisance tripping; Application: power distribution in harsh manufacturing environments. Feature: Finger-safe, non-indicating cube body; Business Impact: safer maintenance and quicker replacements in crowded panels; Application: routine maintenance and stock management. Feature: Glass-filled PES material and standard packaging; Business Impact: durable performance in industrial conditions and easy procurement; Application: multi-site installations requiring dependable spares. Feature: CE and RoHS compliance; Business Impact: regulatory alignment and reduced risk in global supply chains; Application: global machine builds and panel assemblies.
