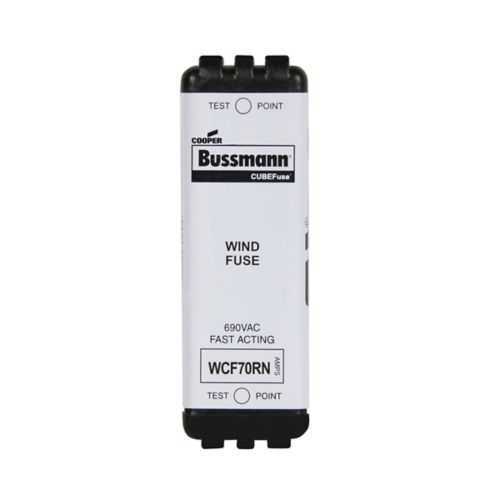

Eaton WCF70RN Fuse - Class CF, 70 A
Part Number: WCF70RN
Quick Summary
The Eaton WCF70RN fuse is a Class CF fast-acting current-limiting cube fuse designed for low-voltage protection in control panels, switchgear, and motor-drive applications. Engineers often contend with nuisance trips, space limits, and inconsistent protection across panels; this device helps mitigate those pain points with dual-element current limiting and a compact footprint. CE marking and RoHS compliance reflect alignment with critical safety and environmental standards, while its finger-safe design reduces handling risks during maintenance. In practice, the WCF70RN enables reliable circuit protection and streamlined procurement in LV distribution, supporting safer, more efficient industrial electrical protection across plant networks.
Product Information
Extended Description
WCF70RN Eaton: Eaton Bussmann Series Class CF fuse, WCF, fast-acting, dual-element current limiting cube fuse, 70 A, finger safe, non-indicating fuse, interrupting rating of 30 kA at 690 Vac
Product Name
Eaton Bussmann series WCF fuse
Catalog Number
WCF70RN
UPC
051712395762
Product Length/Depth
3.01 in
Product Height
1.26 in
Product Width
1 in
Product Weight
1.74 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
70 A
Fuse type
CUBEFuse
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Fuse indicator
Non-indicating
Special features
Finger safe, non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Wind CUBEFuse data sheet no. 9009
Feature: Fast-acting dual-element current-limiting CUBEFuse provides rapid interruption of short circuits. Business Impact: Minimizes fault energy and protects sensitive equipment, extending motor life and reducing downstream damage. Application: Suitable for LV branch circuits in control panels and motor drives, improving uptime and reducing maintenance costs. Feature: 70 A amperage rating. Business Impact: Delivers appropriate protection for moderate-load circuits while avoiding nuisance trips on normal startup. Application: Panel boards and motor control centers where regulated protection is critical. Feature: 30 kA interrupting rating at 690 VAC. Business Impact: Enables safe interruption of high-energy faults in demanding industrial environments, meeting performance specs for power distribution equipment. Application: Industrial switchgear and power distribution assemblies. Feature: Finger-safe, non-indicating design. Business Impact: Enhances operator safety and minimizes false maintenance indicators, simplifying inspections. Application: Routine servicing in live environments without compromising protection. Feature: Class CF, glass-filled PES construction. Business Impact: Combines reliability with robust insulation, reducing replacement frequency in harsh plant settings. Application: Harsh manufacturing floors and protective enclosures. Feature: Compliance and compatibility. Business Impact: CE Marked and RoHS compliant, ensuring regulatory alignment and easier supplier qualification. Application: Global deployments and audits for industrial facilities. Industry insight: As part of the Bussmann series, it integrates smoothly with existing WCF fuses, enabling scalable protection strategies and straightforward spares management.
Get a Quick Quote for a Eaton WCF70RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WCF70RN?
Enquire Now
FAQs
The WCF70RN is intended for low-voltage branch circuits in control panels, motor drives, and switchgear. Its 70 A rating and dual-element current-limiting design protect equipment from short circuits while maintaining high current-carrying capability in typical industrial loads.
The fuse is rated at 70 A with a 30 kA interrupting rating at 690 VAC. It is a dual-element current-limiting CUBEFuse, Class CF, with a 3.01 inch length, 1 inch width, and 1.26 inch height, making it suitable for standard LV protection schemes.
Yes. The WCF70RN is CE marked and RoHS compliant, aligning with essential regulatory and environmental requirements for modern industrial installations and facilitating smoother audit and procurement processes.
The WCF70RN uses the Bussmann WCF family form factor (CUBEFuse) and fits standard low-voltage branch fuse holders. Its dimensions and construction support straightforward replacement in existing panel boards, minimizing downtime during upgrades or maintenance.
By limiting fault energy and reducing nuisance trips, the WCF70RN lowers downtime, extends equipment life, and reduces maintenance costs. Its finger-safe design also minimizes handling risk, contributing to safer work environments and measurable cost savings over traditional fuses.
