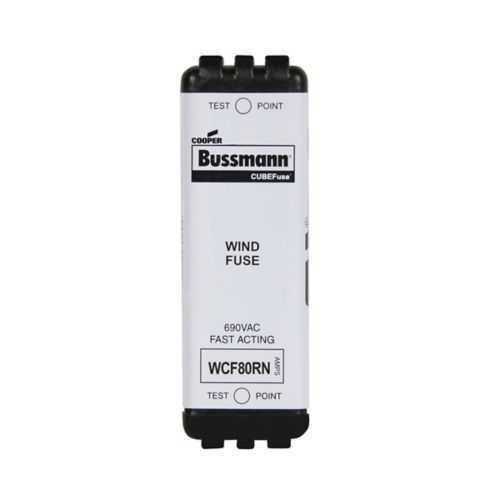

Eaton WCF80RN Fuse - Class CF, 30 kA @ 690 VAC
Part Number: WCF80RN
Quick Summary
Eaton WCF80RN fuse provides fast-acting protection for industrial power circuits in panels and machinery. OEMs often struggle with selecting fuses that meet short-circuit requirements while remaining maintenance-friendly and compliant. The device is CE marked and RoHS compliant and conforms to Class CF standards, delivering reliable protection without unnecessary nuisance trips. As part of the Bussmann series, it integrates with standard CUBEFuse enclosures and existing spare-parts strategies, supporting easy procurement and predictable lifecycle costs.
Product Information
Extended Description
WCF80RN Eaton: Eaton Bussmann Series Class CF fuse, WCF, fast-acting, dual-element current limiting cube fuse, 80 A, finger safe, non-indicating fuse, interrupting rating of 30 kA at 690 Vac
Product Name
Eaton Bussmann series WCF fuse
Catalog Number
WCF80RN
UPC
051712395779
Product Length/Depth
3.01 in
Product Height
1.26 in
Product Width
1 in
Product Weight
1.74 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
80 A
Fuse type
CUBEFuse
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Fuse indicator
Non-indicating
Special features
Finger safe, non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
The Power of Space
The Power of Space
Bussmann series Wind CUBEFuse data sheet no. 9009
Feature: Dual-element current-limiting CUBEFuse design. Business Impact: Provides fast fault isolation while minimizing let-through energy, reducing arc flash risk and equipment damage. Application: Control panels and machine safety circuits benefit from tighter short-circuit control without compromising uptime. Feature: 80 A amperage rating. Business Impact: Protects downstream equipment from overcurrent while enabling compact protection schemes, lowering upstream conductor sizing and improving overall system reliability. Application: feeders and motor control circuits in manufacturing lines. Feature: Interruption rating of 30 kA at 690 VAC. Business Impact: High fault-current events are cleared quickly, protecting busbars and cabinets and meeting stringent industrial protection requirements. Application: power distribution blocks in harsh industrial environments. Feature: Finger-safe, non-indicating design (Class CF). Business Impact: Safer handling during maintenance and replacement with reduced need for contact protection, while avoiding nuisance trips tied to indicator fuses. Application: OEM equipment and field-replaceable fuses in enclosed panels. Feature: Glass-filled PES body, 3.01 in L × 1.26 in H × 1 in W. Business Impact: Compact footprint simplifies installation in crowded panels and standard Bussmann series enclosures, reducing mounting space and improving serviceability. Application: space-constrained control cabinets and electrical housings. Feature: RoHS compliant and CE marked. Business Impact: Ensures global compliance for export and installation in regulated markets, easing procurement and integration across multinational facilities. Application: international manufacturing and distribution networks, cross-border projects.
