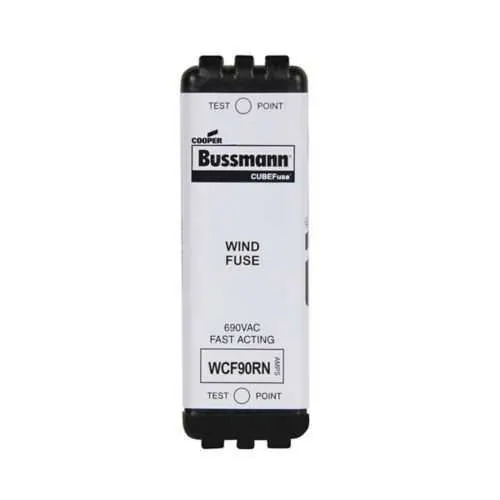

Eaton WCF90RN Fuse - Class CF, CE Marked RoHS Compliant
Part Number: WCF90RN
Quick Summary
The Eaton WCF90RN fuse protects power systems by quickly interrupting fault currents in 690 Vac panels and MCCs. This dual-element, fast-acting cube fuse reduces nuisance trips that derail productivity in demanding industrial environments. It is CE marked and RoHS compliant, with a 30 kA interrupting rating and Class CF construction to meet rigorous electrical codes. By leveraging finger-safe design and a compact form factor, it simplifies installation and lowers total cost of ownership for panel builders and maintenance teams. The Bussmann series lineage supports wide compatibility with existing fusing schemes and stocked parts, reducing procurement complexity for engineering and maintenance programs.
Product Information
Extended Description
WCF90RN Eaton: Eaton Bussmann Series Class CF fuse, WCF, fast-acting, dual-element current limiting cube fuse, 90 A, finger safe, non-indicating fuse, interrupting rating of 30 kA at 690 Vac
Product Name
Eaton Bussmann series WCF fuse
Catalog Number
WCF90RN
UPC
051712395786
Product Length/Depth
3.01 in
Product Height
1.26 in
Product Width
1 in
Product Weight
1.74 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
90 A
Fuse type
CUBEFuse
Material
Glass filled PES
Number of elements
Dual
Packaging type
Standard
Class
Class CF
Fuse indicator
Non-indicating
Special features
Finger safe, non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fuseology
Bussmann series Wind CUBEFuse data sheet no. 9009
Dual-element current-limiting CUBEFuse design features fast fault clearance, protecting downstream components and reducing arc energy. This translates into lower insulation stress, fewer damaged feeders, and shorter downtime in automated lines. Use it in motor control centers, panel feeders, and critical automation cabinets where reliable protection is essential. Class CF construction with fast-acting protection and a 30 kA interrupting rating at 690 Vac enables selective coordination with upstream breakers, improving safety and reducing replacement costs in high-energy environments. Finger-safe, non-indicating design simplifies maintenance in crowded panels, while the compact cube form factor (3.01 in L Ă— 1 in W Ă— 1.26 in H) aligns with standard Bussmann WCF enclosures for quick swaps and straightforward stocking. Compatibility with the Eaton Bussmann series reduces procurement time and ensures consistent performance across spares. Documentation, catalogs, and data sheets support fast engineering sign-off and compliant installations.
Get a Quick Quote for a Eaton WCF90RN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WCF90RN?
Enquire Now
FAQs
The WCF90RN is part of the Eaton Bussmann WCF cube fuse family and matches standard WCF enclosure footprints. This compatibility enables straightforward cross-referencing, easy stocking of spares, and minimal modifications to existing panel layouts, which reduces project time and training needs for maintenance personnel.
The WCF90RN is a 90 A, fast-acting, dual-element current-limiting fuse rated for 690 Vac with a 30 kA interrupting rating. It is Class CF and non-indicating, designed to protect motor feeders and branch circuits while allowing selective coordination with upstream protection devices.
Yes. The 30 kA interrupting rating at 690 Vac and Class CF designation make the WCF90RN well-suited for high-energy environments such as motor control centers and machine feeders, where fast fault clearance reduces damage and downtime while maintaining system safety.
The WCF90RN is CE marked and RoHS compliant, ensuring regulatory alignment for global deployments. This supports compliance in European and other markets that require standard electrical protection components with minimal hazardous substances.
With its finger-safe design, compact footprint, and compatibility with the Bussmann WCF family, the WCF90RN reduces handling risk and installation time. Availability through catalogs, data sheets, and a consistent part family minimizes inventory complexity and supports faster project sign-off and ongoing maintenance.
