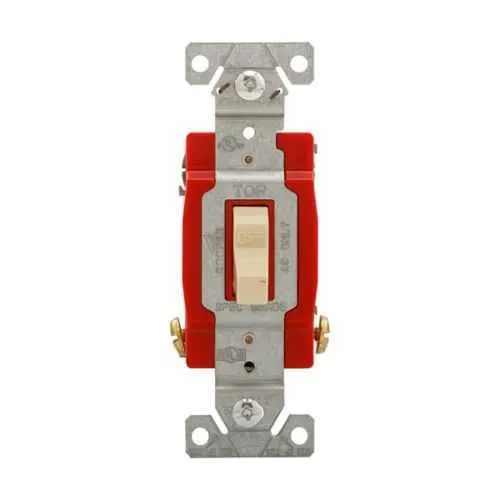

Eaton WD1222V Toggle Switch - cULus Listed NOM
Part Number: WD1222V
Quick Summary
Eaton toggle switch WD1222V is a rugged two-pole control device designed for 120/277 V panels, ideal for industrial machinery and control enclosures. Engineers often confront back- and side-wiring constraints, limited space, and the need for secure, vibration-resistant connections; WD1222V's screw terminals provide a reliable, field-installable solution. The design is supported by cULus Listed NOM certification, signaling compliance with critical North American safety standards, while the ivory polycarbonate body offers visible operation and durable resistance in harsh environments. With flush mounting and a brass terminal enclosure for durable terminations, this switch supports #14-10 AWG conductors and a 14 lbf-in torque rating, helping reduce maintenance time and improve panel integration.
Product Information
Extended Description
WD1222V Eaton: Toggle Switch, Ivory, Screw, Polycarbonate, Flush, Two-pole, Dual Pole, Brass, 120/277 Vac, #14 to 10 AWG, Back and side
Product Name
Eaton toggle switch
Catalog Number
WD1222V
UPC
032664735752
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
cULus Listed NOM
Voltage rating
120/277 V
Number Of Poles
Two-pole
Wiring method
Back and side
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Color
Ivory
Feature: The WD1222V operates at 120/277 V, enabling it to control standard control circuits without multiple device variants. Business Impact: This dual-voltage capability reduces inventory complexity and enables faster commissioning across mixed supply environments. Application: Ideal for industrial panels, machine controls, and hoist systems that rely on common control hardware across 120 and 277 V domains. Feature: Two-pole configuration with back- and side-wiring and screw terminals. Business Impact: Simplifies wiring topology, saves panel depth, and improves termination reliability in tight spaces. Application: Control panels and equipment enclosures where fast field wiring and secure connections are essential. Feature: Flush mounting. Business Impact: Reduces panel protrusion, improves safety by minimizing snag hazards, and simplifies front accessibility. Application: Front-of-panel switches in compact control panels. Feature: Polycarbonate housing with brass terminal enclosure. Business Impact: Durable, impact-resistant body and corrosion-resistant terminations extend service life in harsh environments. Application: Industrial settings, machinery cabinets, and production lines needing rugged interfaces. Feature: 14 lbf-in torque rating and #14-10 AWG compatibility. Business Impact: Ensures reliable clamp force, reduces loosening from vibration, and improves electrical reliability. Application: Secure, code-compliant connections in control circuits across noisy plant environments. Feature: Ivory color for visibility and cULus Listed NOM certification. Business Impact: Improves operator recognition and regulatory compliance in busy panels. Application: Color-coded control interfaces and standardized panel branding in industrial applications. Overall, WD1222V delivers a compact, durable switching solution that accelerates installation, reduces commissioning risk, and aligns with common North American electrical standards for protection and circuit control.
Get a Quick Quote for a Eaton WD1222V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WD1222V?
Enquire Now
FAQs
WD1222V supports back- and side-wiring using screw terminals and accepts conductors in the #14 to #10 AWG range. This configuration provides secure, vibration-resistant connections suitable for industrial panels. The terminal torque should be tightened to 14 lbf-in to maintain consistent electrical contact and prevent loosening under machinery vibration. This wiring flexibility simplifies panel layout and reduces installation time while maintaining compliance with standard electrical practices.
WD1222V is a two-pole toggle switch rated for 120/277 V, allowing control of dual circuits from a single device. This arrangement supports common control tasks in North American machinery and panels without needing separate components. For optimal performance, ensure correct wiring polarity and torque (14 lbf-in) on all terminals, and verify compatibility with your control circuit's voltage requirements.
Yes, WD1222V is designed for flush mounting, delivering a clean, low-profile interface that minimizes panel protrusion and snag hazards. This makes it ideal for front-access control stations and compact enclosures where space is at a premium. The ivory polycarbonate body enhances visibility of the switch position, aiding quick recognition and reducing operator errors in high-traffic industrial areas.
WD1222V carries cULus Listed NOM certification, indicating compliance with key North American electrical safety standards. This certification is important for risk management, regulatory acceptance, and broader market adoption in facilities that mandate certified electrical components. Relying on certified products helps ensure safer installation, consistent performance, and easier inspection by maintenance teams and authorities.
The WD1222V offers reliable, vibration-resistant screw-term connections, dual-voltage capability, and durable polycarbonate construction, all of which reduce unscheduled maintenance and replacement costs. Its flush mounting and straightforward wiring shorten commissioning time, while the brass terminal enclosure supports long-term durability. In practice, users see lower panel rework, fewer loose connections, and improved uptime in production environments.
