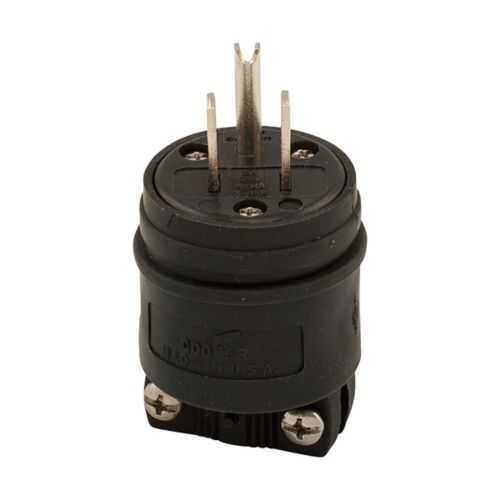

Eaton WD1447BK Severe Duty Plug - 125V 15A, cULus Listed
Part Number: WD1447BK
Quick Summary
WD1447BK is a severe-duty straight blade plug designed for industrial connections in harsh environments. When field installations face corrosion, back-wire termination challenges, or frequent maintenance downtime, this plug helps reduce wiring errors and rework. It carries cULus Listed certification and conforms to essential industrial safety standards, supporting reliable operation in demanding processes. Designed for industrial controls, process equipment, and manufacturing lines, it delivers durable performance with a nylon body, corrosion resistance, and a robust contact system, delivering value through longer service life and lower maintenance costs.
Product Information
Extended Description
WD1447BK Eaton: Eaton Arrow Hart severe duty straight blade plug, #14-8 AWG, 15A, Industrial, 125V, Back wire, Black, Nickel-plated brass, Corrosion Resistant, Nylon, 5-15R, Two pole, three wire, grounding, Screw, 0.38-1" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart severe duty straight blade plug
Catalog Number
WD1447BK
UPC
032664709722
Product Length/Depth
7.25 in
Product Height
2.78 in
Product Width
1.69 in
Product Weight
0.175 lb
Certifications
cULus Listed
Device type
Plug
Type
Complex environment
Amperage Rating
15A
Voltage rating
125V
Contact material
Nickel plated brass
Application
Industrial
Device grade
Severe duty
Wiring method
Back wire
Environmental conditions
Corrosive
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.38-1" in diameter
Material
Nylon
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Black
Connection type
Screw
Allowable wire size
#14-8 AWG
NEMA configuration
5-15R
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Complex environment devices brochure
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - WD1447BK
Feature → Business Impact → Application: Severe-duty straight blade design supports high-visibility, secure connections in demanding equipment, reducing miswiring and connection failures in automated lines. Benefit: Improved reliability and reduced downtime in manufacturing and packaging lines. Application: Industrial equipment control panels and process instrumentation. Feature → Business Impact → Application: Nickel-plated brass contacts resist corrosion in corrosive environments, extending life in washdown areas and outdoor installations. Benefit: Lower replacement frequency and maintenance costs. Application: Food & beverage processing, chemical handling, and outdoor control cabinets. Feature → Business Impact → Application: Nylon body with back-wire termination and a 0.38-1 inch cord range accommodates common #14-8 AWG wires, speeding installation. Benefit: Faster wiring and standardized terminations, reducing field labor time. Application: Electrical enclosures, machine wiring, and control panels. Feature → Business Impact → Application: NEMA 5-15R compatibility and two-pole, three-wire grounding configuration enable straightforward plug-receptacle integration. Benefit: Seamless system expansion and simplified procurement. Application: Replacement plugs in existing 5-15R setups and modular panel assemblies. Feature → Business Impact → Application: Core-pack packaging and compact footprint streamline inventory management and shipping. Benefit: Lower stock costs and easier logistics for distributors and OEMs. Application: Warehouse, distribution centers, and OEM assembly lines.
Get a Quick Quote for a Eaton WD1447BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WD1447BK?
Enquire Now
FAQs
To install the WD1447BK, first ensure power is disconnected. Prepare conductors to the appropriate length, strip to the correct gauge, and insert into the back-wire clamps as indicated by the device markings. Tighten screws to the recommended torque, verify the grounding path, and test continuity after installation. This method simplifies field terminations while maintaining a secure, code-compliant connection.
The WD1447BK is rated for 15A at 125V and uses a NEMA 5-15R configuration for compatibility with common receptacles. It features two-pole, three-wire with grounding and is designed for industrial environments. When selecting compatible receptacles, verify the polarity, wire gauge, and mounting arrangement to ensure reliable mating and safe operation.
Yes. The plug features corrosion-resistant nickel-plated brass contacts and a nylon body designed for harsh industrial environments. This combination reduces corrosion wear, extends service life, and lowers maintenance downtime in washdown zones, chemical handling areas, and outdoor installations typical of manufacturing and processing facilities.
WD1447BK carries cULus Listed certification, indicating compliance with recognized safety standards for electrical products in North America. This certification supports compliance during audits, minimizes risk for installation in regulated facilities, and provides assurance that the device meets rigorous safety criteria for industrial wiring devices.
The combination of corrosion-resistant contacts, rugged nylon construction, and a back-wire termination reduces maintenance frequency and labor costs. Its robust design minimizes downtime during replacements and field servicing, delivering a faster return on investment through fewer part changes, longer intervals between service, and improved system reliability in demanding environments.
