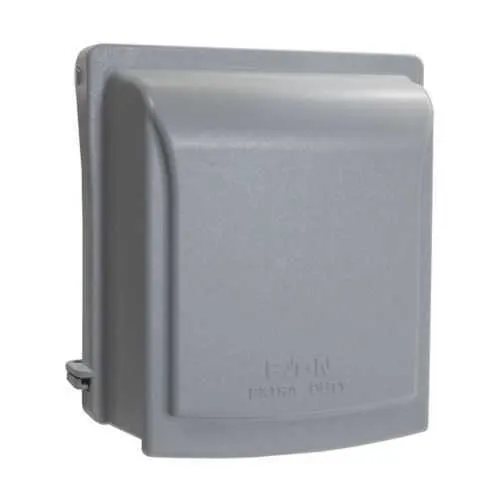

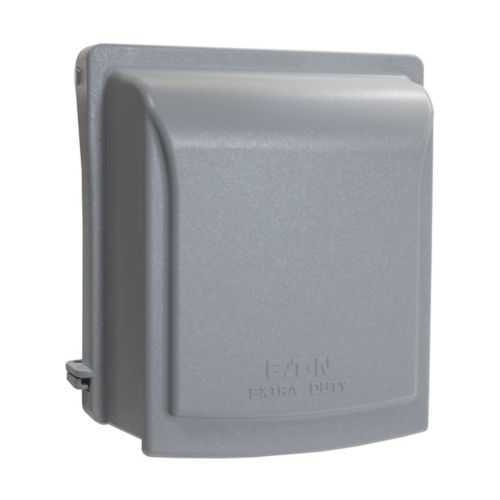

Eaton WIU2DB1 Two-Gang WUI Cover - Extra Duty NEMA 3R
Part Number: WIU2DB1
Quick Summary
Eaton WIU2DB1 two-gang extra-duty while-in-use cover provides robust enclosure protection for vertical installations of outlets and switches in industrial settings. When maintenance cycles depend on quick access without compromising safety, this cover helps minimize downtime and risk. It carries NEC/CEC compliance and a NEMA 3R rating, supporting standard non-hazardous environments with reliable protection. The bronze polycarbonate housing combines durability with a professional appearance, while the 6.1 in depth, 3.5 in height, and 5.63 in width ensure a compact yet capable footprint. For buyers seeking long-term protection, simple installation, and compatibility with the Crouse-Hinds series, WIU2DB1 delivers clear value and peace of mind.
Product Information
Extended Description
WIU2DB1 Eaton: Eaton Crouse-Hinds series extra duty while-in-use cover, Bronze, 3.125" deep, Polycarbonate, Vertical, 55:1 configuration, Two-gang
Product Name
Eaton Crouse-Hinds series extra duty while-in-use cover
Catalog Number
WIU2DB1
UPC
662276947344
Product Length/Depth
6.1 in
Product Height
3.5 in
Product Width
5.63 in
Product Weight
0.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Two-gang
Mounting direction
Vertical
Number of configurations using inserts and movable hinges
55:1
Color
Bronze
Depth
3.125"
Material
Polycarbonate
Crouse-Hinds series Extra Duty While-in-use Covers and Kits brochure
WIU2DB1 SLDDRW drawing
WIU2DB1 SLDDRW drawing
Eaton Specification Sheet - WIU2DB1
Feature → Business Impact → Application: Two-gang capability enables simultaneous protection for multiple circuits, reducing the number of separate enclosures and simplifying panel layouts on commercial and light industrial installations. This translates to lower assembly time and improved space efficiency for control panels in machine rooms and service areas. Feature → Business Impact → Application: Bronze color and polycarbonate construction deliver durable aesthetics and impact resistance in demanding environments, extending service life and minimizing replacement costs in maintenance-heavy facilities. Feature → Business Impact → Application: Vertical mounting with a 55:1 inserts/movable hinges configuration supports flexible door positioning and easy access for ongoing maintenance, stocking, and field modifications across varied enclosure layouts. Feature → Business Impact → Application: NEMA 3R rating and NEC/CEC compliance provide reliable protection against moisture and dust in ordinary/non-hazardous locations, enabling compliant installations in offices, labs, and light manufacturing. Feature → Business Impact → Application: Generous size specifications (6.1 in L, 3.5 in H, 5.63 in W) accommodate standard devices while preserving a compact footprint, facilitating straightforward retrofits and compatibility with Eaton Crouse-Hinds series components. Feature → Business Impact → Application: Bronze/Polycarbonate material choice reduces thermal expansion and offers resistance to impact, supporting longer intervals between maintenance and improved uptime in industrial environments. Feature → Business Impact → Application: Two-gang utility and insert/move hinges option supports quick field configuration changes without specialized tools, reducing downtime during upgrades and expansions in evolving control systems.
Get a Quick Quote for a Eaton WIU2DB1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WIU2DB1?
Enquire Now
FAQs
WIU2DB1 is designed for Eaton Crouse-Hinds series two-gang, vertical-mount, extra-duty while-in-use covers. It fits standard two-gang enclosures and supports inserts and movable hinges (55:1 configuration). Ideal for non-hazardous environments, it simplifies panel layouts while preserving compliance and durability in commercial and light industrial applications.
Key specs include two-gang configuration, vertical mounting, bronze color, polycarbonate material, depth 3.125 inches (with a 6.1 inch overall depth), height 3.5 inches, width 5.63 inches, weight 0.48 pounds, and a NEMA 3R rating. It also carries NEC/CEC standards and is intended for ordinary/non-hazardous locations with a 55:1 inserts/movable hinges configuration.
Yes. The WIU2DB1 is designed for ordinary/non-hazardous locations and carries NEC/CEC standards with a NEMA 3R rating, delivering reliable protection against dust and moisture in non-hazardous environments such as offices, labs, and light manufacturing facilities while maintaining compliance with relevant electrical codes.
The 55:1 configuration refers to the insert and movable hinge arrangement that enables a wide range of door positions and modular configurations. This flexibility supports field customization without sacrificing enclosure integrity, making it easier to adapt the cover to varied wiring and device layouts during installation or upgrades.
Install WIU2DB1 by aligning with standard two-gang backboxes, choosing vertical mounting, and using the inserts/movable hinges to set the desired door configuration. For maintenance, inspect for cracks or wear, clean with non-abrasive cleaners, and replace if impact damage occurs. Its durable bronze polycarbonate shell supports long service life with minimal upkeep.
