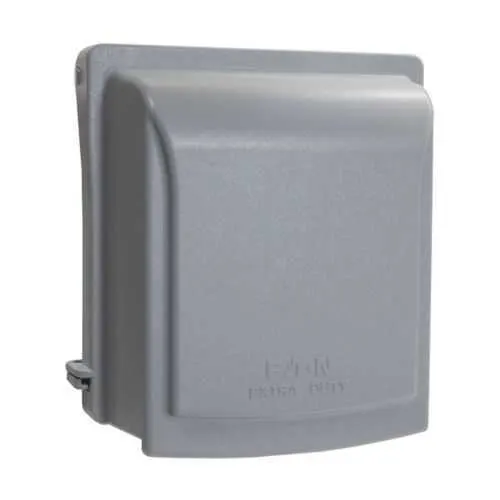

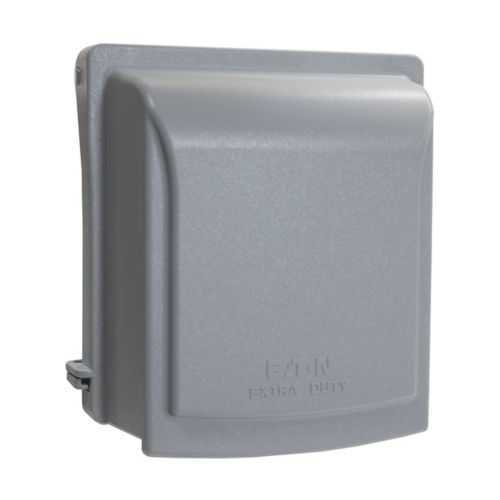

Eaton WIU2DG1 While-In-Use Cover - 3R, Two-Gang Vertical
Part Number: WIU2DG1
Quick Summary
The Eaton WIU2DG1 is a heavy-duty while-in-use cover for two-gang enclosures in non-hazardous locations. When access is needed for wiring or maintenance, this design minimizes downtime and protects circuits from exposure. It carries NEC/CEC compliance, a NEMA 3R rating, and is suitable for ordinary/non-hazardous locations, ensuring safe, code-compliant installations. This solution integrates with the Eaton Crouse-Hinds line, delivering reliable durability, lightweight handling, and faster installation—reducing lifecycle costs while improving maintenance workflows. This gray polycarbonate construction resists impact while maintaining a light profile for easier field handling. Vertical mounting and two-gang configuration support versatile layouts in control cabinets and wall-mounted installations.
Product Information
Extended Description
WIU2DG1 Eaton: Eaton Crouse-Hinds series extra duty while-in-use cover, Gray, 3.125" deep, Polycarbonate, Vertical, 55:1 configuration, Two-gang
Product Name
Eaton Crouse-Hinds series extra duty while-in-use cover
Catalog Number
WIU2DG1
UPC
662276947962
Product Length/Depth
6.1 in
Product Height
3.5 in
Product Width
5.63 in
Product Weight
0.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Two-gang
Mounting direction
Vertical
Number of configurations using inserts and movable hinges
55:1
Color
Gray
Depth
3.125"
Material
Polycarbonate
Crouse-Hinds series Extra Duty While-in-use Covers and Kits brochure
WIU2DG1 SLDDRW drawing
WIU2DG1 SLDDRW drawing
Eaton Specification Sheet - WIU2DG1
Polycarbonate gray housing provides impact resistance and weather durability, translating to longer service life and lower replacement costs in industrial environments. The two-gang, vertical mounting footprint fits standard switchgear and conduit setups, reducing panel intrusion and simplifying retrofits. The 3.125 in depth and 5.63 in width offer a compact, yet protective footprint that minimizes enclosure footprint while preserving full access for maintenance. The 0.48 lb weight makes field handling easier, accelerating installation and reducing labor fatigue. With inserts and movable hinges supporting a 55:1 configuration, WIU2DG1 delivers unmatched adaptability for evolving wiring layouts and retrofit projects. This compatibility with Crouse-Hinds extra-duty covers keeps job sites consistent, lowers part counts, and speeds commissioning. The NEC/CEC compliance and NEMA 3R rating provide assurance of regulatory alignment and outdoor-capable protection for ordinary locations, enabling safer, code-compliant deployments. Overall, the cover reduces downtime, improves maintenance workflows, and supports cost-effective asset protection in challenging industrial environments.
Get a Quick Quote for a Eaton WIU2DG1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WIU2DG1?
Enquire Now
FAQs
WIU2DG1 is designed for vertical mounting in two-gang enclosures using the included inserts and movable hinges, enabling up to a 55:1 configuration. This flexibility reduces part numbers and lets maintenance teams tailor access points to evolving wiring layouts. It is compatible with Eaton's Crouse-Hinds accessories for streamlined installation.
WIU2DG1 is built to NEC/CEC standards, offering NEC/CEC compliance and ordinary/non-hazardous area suitability, while its NEMA 3R rating provides rain- and ice-resistant enclosure protection for outdoor or damp environments. This combination aligns with industrial code requirements and minimizes retrofits during upgrades, while the gray polycarbonate housing maintains visibility and durability.
Yes. WIU2DG1 is designed to integrate with the Crouse-Hinds series extra-duty covers and kits, supporting your existing conduit management and wiring protection ecosystem. The two-gang vertical cover accepts standard inserts and movable hinges (55:1 configuration), enabling seamless compatibility with current field installations and reducing the need for new hardware purchases.
This two-gang, vertical-cover measures 6.1 in deep, 5.63 in wide, and 3.5 in high, with a total weight of 0.48 lb. These compact dimensions help minimize panel intrusion and simplify mounting in tight spaces, while the gray polycarbonate housing remains impact resistant. Mounting orientation is vertical for compatibility with standard enclosures.
WIU2DG1 reduces downtime by providing quick, secure access to wiring while maintaining protection against dust, moisture, and accidental contact. Its lightweight polycarbonate body lowers worker fatigue during field service, while the 55:1 inserts/hinges configuration reduces stocking and simplifies installation. Coupled with NEC/CEC and NEMA 3R compliance, it helps ensure regulatory readiness and minimizes rework during equipment upgrades.
