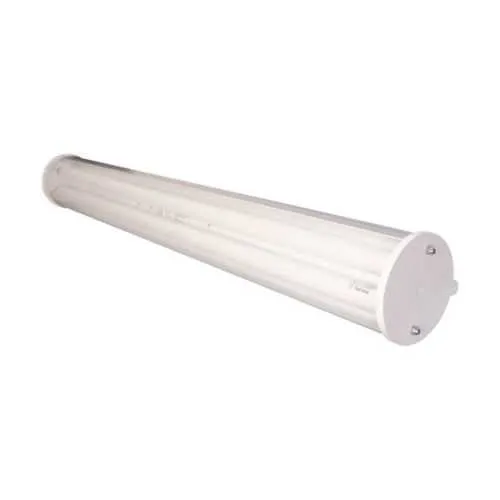

Eaton WP22170 Linear Fluorescent Light Fixture - NEC/CEC
Part Number: WP22170
Quick Summary
Eaton WP22170 Linear Fluorescent Light Fixture delivers reliable illumination for industrial washdown and general areas. Maintenance downtime and retrofit challenges often derail production schedules when lighting upgrades require non-compatible fixtures. This WP22170 complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, supporting 120–277 Vac at 50/60 Hz. With a robust 2-lamp, 25 inch length and an acrylic lens, it offers straightforward installation and durable performance in harsh environments. Designed for energy efficiency and easy integration with standard end caps and strain-relief connections, it helps facilities reduce cost and downtime while meeting safety and reliability goals.
Product Information
Extended Description
WP22170 Eaton: Eaton Crouse-Hinds series Pauluhn WashPro WP linear fluorescent light fixture,1/2" entry ,50/60 Hz,2 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,Non-metallic end caps,Standard end cap with one strain relief connector ,2-lamp,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn WashPro WP linear fluorescent light fixture
Catalog Number
WP22170
UPC
662276416369
Product Length/Depth
25 in
Product Height
7.03 in
Product Width
6.4 in
Product Weight
12.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Material
Non-metallic end caps
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard end cap with one strain relief connector
Wattage
17W
Entry size
1/2"
Lens material
Acrylic
Crouse-Hinds series Pauluhn WashPro Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn WashPro Industrial Linear Fluorescent catalog page
IF LBL1351 - Pauluhn WashPro Industrial Linear Fluorescent
Eaton Specification Sheet - WP22170
The WP22170 uses a 2-lamp configuration to maximize lumen output without increasing fixture count, reducing ceiling clutter and simplifying maintenance in high-traffic areas. The fluorescent T8 bi-pin lamps paired with an acrylic lens deliver clear, durable illumination that resists impact and chemical exposure common in industrial spaces. Its 120-277 Vac, 50/60 Hz input provides flexible power sourcing, which lowers inventory and wiring complexity across multiple sites. A standard end cap with one strain relief connector simplifies installation and vibration resistance during operation in noisy manufacturing environments. Non-metallic end caps prevent corrosion in damp or washdown prone areas, extending fixture life and lowering replacement costs. Compliance with NEC/CEC and Ordinary/Non-Hazardous Location classifications mitigates regulatory risk while enabling broader deployment. The 25 in length, 12.4 lb weight, and 1/2 inch entry support straightforward mounting on standard supports, with a total wattage of 17W, delivering energy efficiency and fast ROI.
Get a Quick Quote for a Eaton WP22170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WP22170?
Enquire Now
FAQs
Plan for a 1/2" entry and use the standard end cap with one strain-relief connector. Confirm 120–277 Vac supply within 50/60 Hz and verify the 25 in length fits your ceiling grid. The fixture uses non-metallic end caps and an acrylic lens, simplifying cleaning and reducing corrosion risk in washdown areas.
The WP22170 is certified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, providing regulatory compliance for general industrial spaces. This reduces documentation workload for audits and ensures safe operation within typical plant environments.
Yes, WP22170 supports a 2-lamp configuration with T8 bi-pin lamps. It operates on 120-277 Vac at 50/60 Hz. Installation uses a standard end cap with strain-relief, and the 1/2" entry simplifies conduit connections while maintaining a clean, vibration-resistant setup.
The fixture measures 25 inches in length, 6.4 inches in width, and 7.03 inches in height, with a weight of 12.4 pounds. These dimensions fit common mounting channels and allow predictable alignment across multiple fixtures in a row or grid layout.
Access Eaton’s brochure, catalog page, installation instruction IF LBL1351, and the specification sheet WP22170 for detailed mounting, wiring, and compliance guidance. These resources support accurate field installation and resale comparisons during procurement.
