Eaton WPS43572Q WashPro WP Light Fixture - NEC/CEC
Part Number: WPS43572Q
Quick Summary

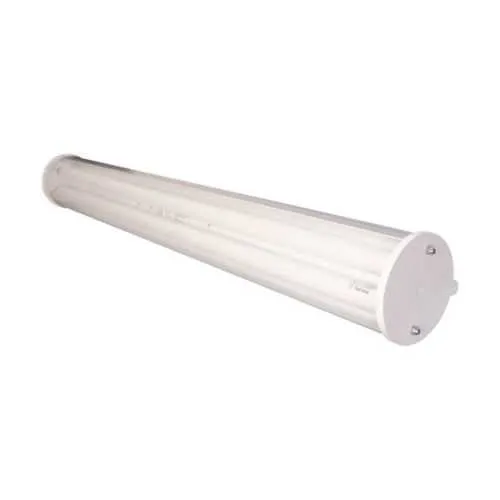

Eaton WPS43572Q Pauluhn WashPro WP linear fluorescent light fixture provides rugged illumination for industrial washdown environments. Operators often face maintenance downtime and lens wear in harsh locations. This design is compliant with NEC/CEC standards and classified for Ordinary/Non-Hazardous Locations, featuring stainless steel end caps and an acrylic lens. With 120–277 VAC input, 54 W power, and a 4 ft, 3-lamp configuration, it delivers reliable, energy-efficient lighting ideal for warehouses, manufacturing floors, and process areas.
Product Information
Extended Description
WPS43572Q Eaton: Eaton Crouse-Hinds series Pauluhn WashPro WP linear fluor,1/2" entry,4 ft,Acrylic lens,T5HO mini bi-pin,Stainless steel end caps,Center stud end cap,1 strain relief connector,hanger brackets,3-lamp,Quick disconnect recept,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn WashPro WP linear fluorescent light fixture
Catalog Number
WPS43572Q
UPC
662276417250
Product Length/Depth
49 in
Product Height
7.03 in
Product Width
6.4 in
Product Weight
20.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Material
Stainless steel end caps
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ctr stud, 1 strain relief and hanger brackets
Wattage
54W
Entry size
1/2"
Lens material
Acrylic
Special features
Quick disconnect receptacle
Crouse-Hinds series Pauluhn WashPro Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn WashPro Industrial Linear Fluorescent catalog page
IF LBL1351 - Pauluhn WashPro Industrial Linear Fluorescent
Eaton Specification Sheet - WPS43572Q
The WPS43572Q uses a 4 ft, 3-lamp configuration powered at 54W to deliver bright, uniform illumination while minimizing energy use—helping facilities reduce operating costs and heat load. The acrylic lens and stainless steel end caps provide corrosion resistance and durable protection in washdown environments, lowering replacement cycles and maintenance費. Its broad 120–277 VAC, 50/60 Hz input allows easy integration with existing power systems, simplifying retrofits and new installations alike. Center stud mounting, a strain relief, and hanger brackets enable flexible overhead installation for varying ceiling heights and space constraints, accelerating projects and minimizing downtime. A quick disconnect receptacle further streamlines field wiring, enabling faster service and lamp replacement without complex rewiring, which translates into lower labor costs and improved uptime. These design elements collectively support compliant, reliable operation in warehouses, manufacturing lines, and sanitary process areas, while enabling teams to meet stricter safety and performance targets.
Get a Quick Quote for a Eaton WPS43572Q
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WPS43572Q?
Enquire Now
FAQs
The WPS43572Q is designed for center stud mounting with 1 strain relief and included hanger brackets, offering flexible overhead installation. It also features a 1/2 inch entry and quick disconnect receptacle, simplifying initial wiring and future service without major disassembly.
This fixture operates at 54W with a voltage range of 120–277 VAC and a 50/60 Hz frequency. It uses a 4 ft, 3-lamp configuration with T5HO mini bi-pin lamps, making it compatible with common industrial power systems and easy to integrate into existing layouts.
Yes. It is classified for Ordinary/Non-Hazardous Locations and features stainless steel end caps with an acrylic lens, offering corrosion resistance and durable protection in washdown and general manufacturing settings, while meeting NEC/CEC standards for reliable operation.
Ideal for warehouses, production floors, and process areas requiring robust, energy-efficient lighting with easy maintenance. Its 4 ft length and 3-lamp configuration provide strong illumination over wide areas, and the quick disconnect receptacle minimizes installation and service time in high-demand environments.
Maintenance benefits include faster wiring with the quick disconnect receptacle and straightforward lamp replacement due to the 4 ft, 3-lamp design. The durable materials and glassless acrylic lens reduce replacement costs, while energy efficiency from 54W loads lowers operating expenses over the fixture’s lifespan.
