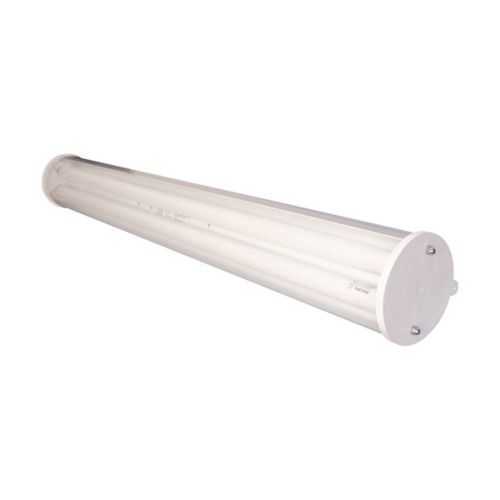

Eaton WPSH43170LW12 Linear fluorescent light fixture - IP66
Part Number: WPSH43170LW12
Quick Summary
Eaton WPSH43170LW12 delivers rugged, high-performance linear fluorescent lighting for hazardous locations in industrial facilities. Engineers often face unreliable lighting in Class I Division 2 areas, where outages disrupt production and safety. This luminaire meets NEC/CEC requirements and is IP66 rated with a NEMA 4 enclosure, ensuring dependable operation in tough environments. Coupled with a 4 ft, 3-lamp design and universal 120-277 Vac input, it reduces maintenance costs and simplifies procurement while delivering compliant, safe illumination for demanding industrial settings.
Product Information
Extended Description
WPSH43170LW12 Eaton: Eaton Crouse-Hinds series Pauluhn WashPro WPH linear fluorescent,1/2" entry,4 ft,Acrylic lens,T8 bi-pin,Stainless steel end caps,Standard end cap with one strain relief connector ,3-lamp,Lamps included,12 ft 16/3 cord,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn WashPro WPH linear fluorescent light fixture
Catalog Number
WPSH43170LW12
UPC
662276417472
Product Length/Depth
49 in
Product Height
7.03 in
Product Width
6.4 in
Product Weight
20.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Stainless steel end caps
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard end cap with one strain relief connector
Entry size
1/2"
Wattage
32W
Lens material
Acrylic
Special features
Lamps included, 12 ft 16/3 cord
Crouse-Hinds series Pauluhn WashPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn WashPro Hazardous Area Linear Fluorescent catalog page
IF LBL1351 - Pauluhn WashPro Linear Fluorescent
Eaton Specification Sheet - WPSH43170LW12
The 4 ft, 3-lamp WPSH43170LW12 provides high lumen output within a compact footprint, delivering improved task visibility that translates to faster throughput and reduced error rates in industrial processes. The design supports energy-efficient operation at 32W, helping facilities lower operating costs while maintaining consistent light levels across long aisles and workstations. In hazardous locations, the IP66 enclosure and stainless steel end caps offer durable resistance against dust, water, and corrosive environments, ensuring longer service life and reduced replacement intervals. With a T8 bi-pin lamp configuration and included lamps, installation is straightforward, minimizing downtime during retrofits or new builds. The standard end cap with a strain-relief connector simplifies wiring and reduces field modification time, delivering a faster, compliant installation for 120-277 Vac power systems and 50/60 Hz operation. These features collectively support reliable compliance with NEC/CEC requirements and enable safer, more productive facilities in chemical, oil & gas, and manufacturing sectors.
Get a Quick Quote for a Eaton WPSH43170LW12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WPSH43170LW12?
Enquire Now
FAQs
installation requires using the standard end cap with one strain-relief connector for simple wiring, a 1/2 inch entry, and a 12 ft 16/3 power cord to reach 120-277 VAC power sources. The unit supports straightforward mounting on compatible housings, minimizing field modifications while maintaining compliance with NEC/CEC and hazardous-location codes.
The fixture is a 4 ft, 3-lamp luminaire that runs at 32 watts total. It uses T8 bi-pin lamps, which are included with the fixture to reduce installation downtime and ensure immediate operation after wiring. The 50/60 Hz compatibility supports global industrial applications.
Yes. The IP66 rating coupled with stainless steel end caps and an acrylic lens provides robust protection against dust, water jets, and corrosion, making it ideal for washdown zones, chemical plants, and other harsh environments where reliable light is critical.
This Eaton model is designed for hazardous locations with NEC/CEC compliance and an area classification of Hazardous/Classified Locations. It carries a Class I, Division 2 rating, along with a NEMA 4 enclosure and IP66 ingress protection, ensuring it meets stringent industrial safety and performance requirements.
Lamps are included for immediate startup, reducing downtime during retrofits. The 12 ft cord and universal 120-277 VAC input simplify installation across varied facilities, while the robust IP66/NEMA 4 construction lowers replacement and repair costs in harsh environments. Over time, energy efficiency plus longer service life contribute to a favorable return on investment.
