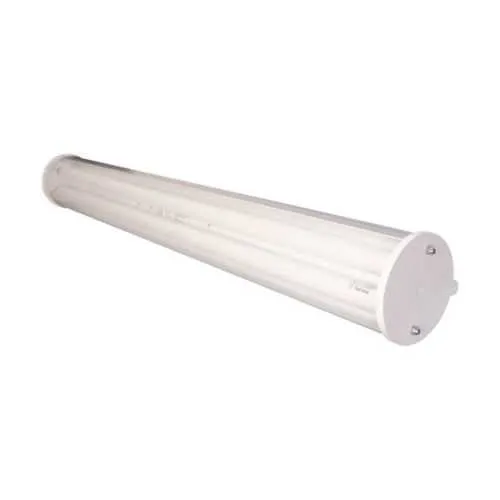

Eaton WPSH86576LW12 - WashPro Linear Fluorescent IP66
Part Number: WPSH86576LW12
Quick Summary
The Eaton WashPro WPH linear fluorescent light fixture delivers reliable illumination for hazardous-area applications. In harsh environments where corrosion, dust, and maintenance downtime erode productivity, dependable lighting is essential; this fixture is designed with stainless steel end caps, an acrylic lens, and a robust 6-lamp, 54W configuration to withstand washdowns and vibrations. It carries critical certifications and classifications that matter in the field, including IP66 ingress protection, NEMA 4 enclosure, and NEC/CEC compliance for Hazardous/Classified Locations. These credentials help you meet regulatory requirements while reducing risk. Beyond protection, its 120–277 VAC operation, 8 ft length, and included lamps streamline installation and long-term operating costs, supporting uptime and energy efficiency in industrial facilities.
Product Information
Extended Description
WPSH86576LW12 Eaton: Eaton Crouse-Hinds series Pauluhn WashPro WPH linear fluor,1/2" entry,8 ft,Acrylic lens,T5HO mini bi-pin,SS end caps,Center stud end cap,1 strain relief connector,hanger brackets,WP1050MTK straps,6-lamp,Lamps,12 ft 16/3 cord,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn WashPro WPH linear fluorescent light fixture
Catalog Number
WPSH86576LW12
UPC
662276373747
Product Length/Depth
97 in
Product Height
7.03 in
Product Width
6.4 in
Product Weight
36.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Stainless steel end caps
Lamp length
8 ft
Number of lamps
6-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ctr stud, 1 strain relief, hanger brackets, straps
Entry size
1/2"
Wattage
54W
Lens material
Acrylic
Special features
Lamps included, 12 ft 16/3 cord
Crouse-Hinds series Pauluhn WashPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn WashPro Hazardous Area Linear Fluorescent catalog page
IF LBL1351 - Pauluhn WashPro Linear Fluorescent
Eaton Specification Sheet - WPSH86576LW12
Feature → Business Impact → Application: The 6-lamp, 54W configuration delivers high lumen output across large work areas, reducing the number of fixtures needed and lowering installed cost while maintaining consistent brightness for critical processes in warehouses and production lines. In hazardous environments, the IP66 ingress protection and NEMA 4 enclosure provide perimeter resilience against dust, water, and washdown cycles, reducing maintenance intervals and extending service life. Stainless steel end caps and an acrylic lens resist corrosion and impact, delivering durable performance in chemically aggressive or moist settings such as oil and gas, chemical processing, and food-and-beverage facilities. The mounting versatility—Ctr stud, 1 strain relief, hanger brackets, and straps—simplifies installation in tight spaces and irregular ceilings, minimizing downtime during retrofit projects. Operating at 120–277 VAC with 50/60 Hz, the fixture supports flexible power distribution and simplifies spare-part management, improving total cost of ownership. Lamps included and a 12 ft 16/3 cord reduce field wiring and startup time, accelerating deployment in new builds and refurbishments. This WashPro unit is purpose-built for hazardous/classified locations, helping facilities meet NEC/CEC requirements while delivering predictable maintenance costs and uptime.
Get a Quick Quote for a Eaton WPSH86576LW12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WPSH86576LW12?
Enquire Now
FAQs
The WPSH86576LW12 supports ctr stud mounting, a single 1/2-inch strain-relief entry, plus hanger brackets and adjustable straps. This combination provides flexible alignment for long runs or tight ceilings, minimizing installation time and reducing the need for custom brackets. Durable mounting hardware also helps maintain seal integrity in washdown environments.
This 6-lamp fixture uses T5HO mini bi-pin lamps with a total wattage of 54W. It operates on 120–277 VAC and supports 50/60 Hz, enabling a single electrical feed across most plants. Its 8 ft length and center-mounted design simplify wiring layouts in large industrial spaces while delivering uniform illumination.
Yes. It is rated for Hazardous/Classified Locations with IP66 ingress protection and a NEMA 4 enclosure. It also aligns with NEC/CEC standards for hazardous environments, ensuring compliance for installations in areas with potential exposure to dust, moisture, or corrosive substances.
Lamps are included with the fixture, and it features a 12 ft 16/3 cord for ready connection. It also provides 1/2 entry, center stud end caps, and stainless steel end caps, reducing field assembly time and ensuring a complete solution for immediate commissioning in demanding industrial spaces.
The WashPro WPH unit combines rugged construction with long life and low maintenance needs, reducing downtime and replacement costs in harsh environments. Its durable lens and end caps resist corrosion, IP66/NEMA 4 protection minimize nuisance maintenance, and 120–277 VAC compatibility simplifies electrical distribution, contributing to lower total cost of ownership across multiple facilities.
