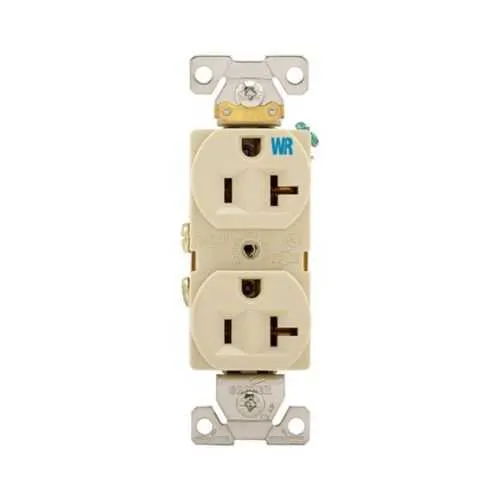

Eaton WRBR20V Receptacle - 20A 125V Commercial
Part Number: WRBR20V
Quick Summary
WRBR20V duplex receptacle delivers reliable 20A, 125V power for commercial outlets in damp environments. Facility managers often grapple with devices that fail under humidity or heavy use, causing downtime. It carries cULus Listed and NOM certifications, providing code-compliant performance in many regions, while weather-resistant nylon and back-and-side wiring simplify installation. Designed for flush mounting in commercial panels, it supports 14 lbf-in torque and a durable brass contact system, helping projects stay on schedule. As a core-pack solution, it improves stocking efficiency and reduces field rework, delivering measurable value for contractors and facility managers.
Product Information
Extended Description
WRBR20V Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Ivory, Brass, Weather resistant, Impact-resistant nylon face, Glass-filled nylon base, 5-20R, Duplex, Screw, Nylon, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
WRBR20V
UPC
032664673542
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
1.09 in
Product Weight
0.001 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Weather resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Environmental conditions
Damp/wet
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
Nylon
Packaging type
Core pack
Environmental resistance
Weather resistant
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face Glass-filled nylon base
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - WRBR20V
Eaton Specification Sheet - WRBR20V
Feature: Weather resistant nylon face and glass-filled nylon base. Business impact: Extends component life in high-traffic commercial environments, reducing replacement costs and downtime. Application: Office lobbies, retail spaces, and corridors where frequent plug-in activity occurs. Feature: Back and side wiring with slam-free, screw-terminal connections. Business impact: Speeds up installation and simplifies future wiring faults troubleshooting. Application: New construction and retrofit projects in busy facilities. Feature: NEMA configuration 5-20R, 20A at 125V, brass contact material. Business impact: Supports common high-draw equipment with reliable contact and minimal arcing, improving electrical safety and performance. Application: Break rooms, computer labs, and point-of-sale areas. Feature: Flush mounting and core-pack packaging. Business impact: Provides neat installations while reducing on-site waste and stocking costs. Application: Commercial fixtures and retrofit programs in hotels, schools, and hospitals. Feature: Environmental resilience and weather resistance. Business impact: Protects against moisture ingress in damp/wet areas, lowering service intervals. Application: Restrooms, hallways, and outdoor-adjacent spaces in commercial facilities.
Get a Quick Quote for a Eaton WRBR20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WRBR20V?
Enquire Now
FAQs
Power must be off before wiring. Use #14-10 AWG conductors and connect to the brass terminals as indicated for back and side wiring. Tighten to the specified torque of 14 lbf-in to ensure a secure, code-compliant connection. Mount flush in the wall box and verify NEMA 5-20R compatibility for proper plug insertion.
Yes. The WRBR20V is designed for damp/wet environments and features weather-resistant nylon components to protect against moisture ingress. This makes it suitable for commercial spaces like restrooms, kitchens, and outdoor-adjacent areas where exposure to humidity is common.
The WRBR20V carries cULus Listed and NOM certifications, providing broad regulatory compliance across multiple regions for commercial electrical installations and ensuring safe, code-compliant performance.
The unit is rated for 20A at 125V and uses a NEMA 5-20R configuration with brass contact material. It supports back and side wiring for #14-10 AWG conductors and has a torque specification of 14 lbf-in for secure terminations.
Its durable, weather-resistant construction reduces maintenance and downtime in busy facilities. Back-and-side wiring speeds up installations, core-pack packaging lowers stocking costs, and the standard NEMA configuration simplifies part compatibility across projects.
