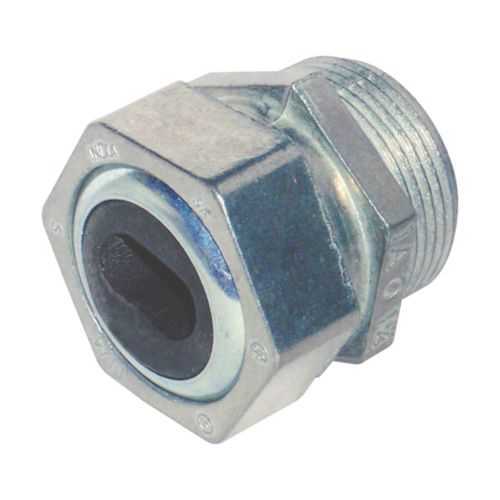

Eaton WTC1253 Service Entrance Cable Connector - Watertight
Part Number: WTC1253
Quick Summary
Eaton WTC1253 Service Entrance Cable Connector provides a watertight seal for service entrance cables in enclosures. Unsealed terminations at field joints can admit water, cause downtime, and complicate inspections. UL certification for watertight service entrance connectors, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations support reliable installations. This rugged zinc die-cast connector delivers durable protection, compatibility with standard conduit systems, and straightforward procurement. In practice, it meets common field challenges while reducing rework and maintenance costs, making it a sound choice for panel builders, integrators, and maintenance teams seeking robust connectivity in demanding environments. Its compatibility with widely used conduit fittings simplifies upgrades across facilities.
Product Information
Extended Description
WTC1253 Eaton: Eaton Crouse-Hinds series service entrance cable connector, 0.510-0.850" cable opening, Zinc die cast, Watertight, 1-1/4"
Product Name
Eaton Crouse-Hinds series service entrance cable connector
Catalog Number
WTC1253
UPC
662277036290
Product Weight
0.37 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable opening (min/max)
0.510-0.850 in
Trade size
1-1/4"
Material
Zinc die cast
Special features
Watertight
Crouse-Hinds series Service Entrance Connectors, Elbows and Straps catalog page
Service Entrance Connectors, Elbows and Straps UL certification (Watertight Service Entrance Cable Connectors - Zinc Die Cast)
Eaton Specification Sheet - WTC1253
Feature: Watertight construction with a 0.510-0.850 in cable opening. Business Impact: Prevents moisture intrusion and corrosion, reducing field failures and warranty calls. Application: Ideal for outdoor panels and damp environments in manufacturing plants. Feature: 1-1/4 in trade size. Business Impact: Simplifies cable routing and reduces need for adapters, accelerating installation. Application: Fits standard service entrances in control panels across industrial facilities. Feature: Zinc die-cast body. Business Impact: Provides robust mechanical protection and long-term durability in harsh environments. Application: Enclosures in industrial settings where physical resilience matters. Feature: NEC/CEC compliance and UL certification. Business Impact: Ensures code-compliant installations and inspector acceptance. Application: Projects requiring rigorous electrical codes and certifications. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Clear guidance for safe use in general facilities, reducing compliance risk. Application: Data centers, warehouses, and manufacturing floors. Feature: Procurement data (UPC, weight). Business Impact: Improves sourcing accuracy and inventory control. Application: BOMs and purchase orders for electrical distributors and integrators.
Get a Quick Quote for a Eaton WTC1253
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton WTC1253?
Enquire Now
FAQs
When installing the WTC1253, verify that the panel knockout accommodates the 1-1/4 in trade size and that the cable opening range of 0.510–0.850 in can accept the service conductors without forcing the enclosure. Use proper conduit fittings to maintain the watertight seal, ensure the seal seats correctly, and confirm NEC/CEC compliance and UL certification for the installation in ordinary/non-hazardous locations.
The WTC1253 uses a zinc die-cast housing with a dedicated watertight seal to prevent moisture ingress. It carries UL certification for watertight service entrance connectors and complies with NEC/CEC standards, making it suitable for ordinary/non-hazardous locations. This combination supports reliable operation in damp environments and simplifies inspector acceptance for compliant installations.
The WTC1253 is ideal for service entrances in electrical panels, outdoor enclosures, and damp plant rooms found in manufacturing facilities, data centers, warehouses, and other general facilities. Its 1-1/4 in trade size and 0.510–0.850 in cable opening provide a versatile, code-compliant solution for typical service conductor entries in these environments.
The connector is constructed from zinc die cast for durability and strength. It weighs about 0.37 lb, which supports manageable handling during installation and light inventory loading. The catalog number is WTC1253 and the UPC is 662277036290, facilitating accurate procurement and BOM updates.
You can access the Eaton Crouse-Hinds WTC1253 specification sheet at Eaton’s site, along with the Crouse-Hinds catalog page for service entrance connectors, elbows, and straps. UL certification data is available through UL’s database, and the product’s catalog reference is included in the official Eaton documentation for fast reference during sourcing and design reviews.
