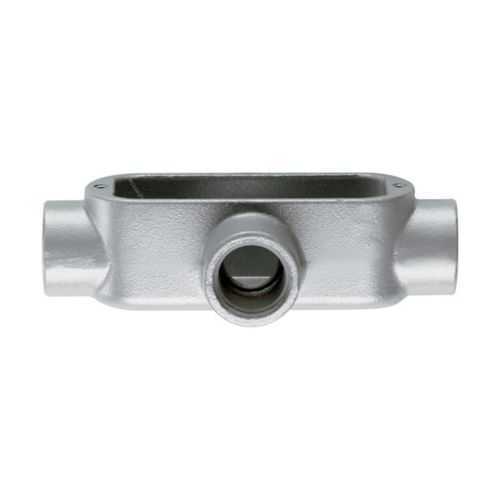

Eaton X125M Condulet Outlet Body - Form 5, 1-1/4" Malleable Iron
Part Number: X125M
Quick Summary
Eaton X125M Condulet outlet body provides rugged Form 5 conduit housing for 1-1/4 in wiring in industrial enclosures. Many projects struggle with reliable enclosure sealing and quick, mistake-free installation in harsh environments. UL-listed for US and Canada, NEC/CEC compliant, and suitable for Ordinary/Non-Hazardous Locations, this conduit body helps ensure safety and code conformity. Its malleable iron construction and Form 5 design deliver robust protection while reducing field rework; this translates to lower maintenance costs and faster panel assembly. In practice, it supports efficient wiring in wiring & connectivity projects, with trusted Eaton quality for industrial automation applications.
Product Information
Extended Description
X125M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, X shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
X125M
UPC
784564003034
Product Length/Depth
9.1 in
Product Height
4.43 in
Product Width
2.55 in
Product Weight
4.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
X
Trade size
1-1/4"
Material
Malleable iron
Eaton Crouse-Hinds X125M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - X125M
Feature: Form 5 conduit outlet body provides a robust termination path for conduit; Business Impact: Ensures secure, code-compliant enclosure entries with reduced risk of exposure to dust and moisture; Application: Ideal for control panels in harsh industrial environments. Feature: Malleable iron construction delivers impact resistance and longevity; Business Impact: Extends service life and lowers replacement costs in high-traffic installations; Application: Suitable for harsh manufacturing floors. Feature: 1-1/4" trade size and X-shaped form enable straightforward integration with standard conduit systems; Business Impact: Speeds up installation, reduces field adapters, and minimizes downtime; Application: Wiring & connectivity in tough industrial spaces. Feature: NEC/CEC compliance and UL listings (US/Canada); Business Impact: Simplifies regulatory approval and reduces audit risk; Application: Preferred for regulated facilities. Feature: Dimensions and weight (9.1 in L, 4.43 in H, 2.55 in W, 4.16 lb); Business Impact: Predictable envelope for panel design and quick handling; Application: Compatible with standard enclosure footprints and mounting schemes.
Get a Quick Quote for a Eaton X125M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X125M?
Enquire Now
FAQs
The X125M is specifically designed for 1-1/4" trade-size conduit and Form 5 installations, ensuring a precise fit with standard conduits and outlet bodies. It features bolt-on mounting compatibility, sealed interfaces, and durable malleable iron construction to withstand panel entries in typical industrial environments, reducing field rework and installation time.
Form 5 Condulet X125M is intended for Ordinary/Non-Hazardous locations, making it a cost-effective choice where corrosion risk is manageable. It provides clean wiring access, easy alignment, and straightforward mounting, enabling faster panel assembly with minimal tools. The rugged body resists impact and supports reliable long-term performance in everyday industrial settings.
The X125M is NEC/CEC compliant and UL-listed for US and Canada, with area classification Ordinary/Non-Hazardous. These certifications ensure code compliance, safety, and reliable performance in regulated environments, reducing audit risk and enabling use in controlled industrial facilities.
Key specs include length 9.1 in, height 4.43 in, width 2.55 in, weight 4.16 lb, and trade size 1-1/4". The X-shaped form and malleable iron material contribute to rugged protection, while the UPC 784564003034 aids in inventory control and parts matching in procurement workflows.
By combining Form 5 protection with durable malleable iron and a precise 1-1/4" fit, the X125M minimizes maintenance, reduces field rework, and speeds installation. UL/NEC compliance lowers risk of non-conformance; straightforward mounting reduces technician training time, delivering lower lifecycle costs and improved uptime for critical electrical systems.
