Eaton X150M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: X150M
Quick Summary
Condulet Form 5 conduit outlet body is a rugged, protected termination solution for industrial enclosures. In harsh environments, installers need reliable fittings that resist impact, moisture, and dust ingress without sacrificing serviceability. This Eaton Crouse-Hinds design meets NEC/CEC standards and is suitable for ordinary/non-hazardous locations, providing a dependable path for conduit terminations. With a 1-1/2" trade size and malleable iron construction, it supports fast, compliant installations, reduces field rework, and improves maintenance efficiency for panel builders and contractors alike.
Product Information
Extended Description

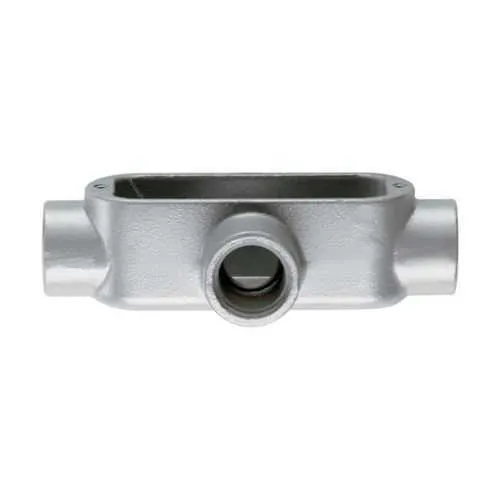

X150M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, X shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
X150M
UPC
784564003041
Product Length/Depth
9.1 in
Product Height
4.43 in
Product Width
2.75 in
Product Weight
4.63 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
X
Trade size
1-1/2"
Material
Malleable iron
Eaton Crouse-Hinds X150M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - X150M
Rugged malleable iron construction delivers durable protection for conduit terminations in demanding environments, reducing risk of damage and downtime and enabling longer service life in industrial facilities. The Form 5 X-shaped design standardizes fittings across installations, simplifying sourcing and field repairs while ensuring consistent electrical performance in 1-1/2 inch conduit runs. With dimensions of 9.1 inches in length, 4.43 inches in height, and 2.75 inches in width, and a weight of 4.63 pounds, the X150M balances robust protection with manageable handling during installation and maintenance. NEC/CEC compliance and ordinary/non-hazardous location classification ensure code-conformant installations, supporting safer, audit-ready electrical work. Availability of 3D CAD drawings, catalogs, and specification sheets accelerates design validation and rapid deployment in control panels and equipment rooms. These resources reduce engineering time and enable precise planning for conduit networks and enclosure integration.
Get a Quick Quote for a Eaton X150M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X150M?
Enquire Now
FAQs
The X150M Condulet Form 5 outlet body is a heavy-duty malleable iron conduit outlet accessory designed for Form 5 installations with a 1-1/2" trade size. It provides a secure, protected entry point for conduit runs into panels or enclosures, suitable for rugged environments where protection against dust, moisture, and mechanical impact is required. It supports standard Condulet Form 5 configurations and ensures compliant terminations in ordinary locations.
Key specifications include a 1-1/2" trade size, Form 5 configuration, X-shaped body, and malleable iron material. The product measures 9.1 inches in length, 4.43 inches in height, and 2.75 inches in width, with an approximate weight of 4.63 pounds. Catalog number is X150M and UPC is 784564003041, aligning with standard Eaton Crouse-Hinds Form 5 fittings.
The Form 5 design provides a standardized, easily replacable conduit outlet body that integrates smoothly with Form 5 systems, reducing installation time and training needs. Its ordinary/non-hazardous location classification aligns with NEC/CEC requirements, helping ensure code compliance during panel wiring and field installations while delivering reliable protection against environmental factors.
This conduit outlet body supports NEC/CEC standards, ensuring compliance with recognized electrical codes for non-hazardous environments. Downloads also reference Canadian certification information for Condulet Form 5 components, aiding cross-border compliance. The combination of these certifications helps installers meet regulatory requirements, support project approvals, and reduce risk during inspections and audits.
Eaton provides a range of resources for X150M, including a 3D CAD drawing package, Form 5 catalog page, and the Eaton specification sheet. These assets enable accurate fit checks, compatibility verification with other Form 5 components, and efficient design validation for enclosure terminations. Access to UPC, catalog data, and dimension details supports precise planning and faster deployment in control panels and field installations.
