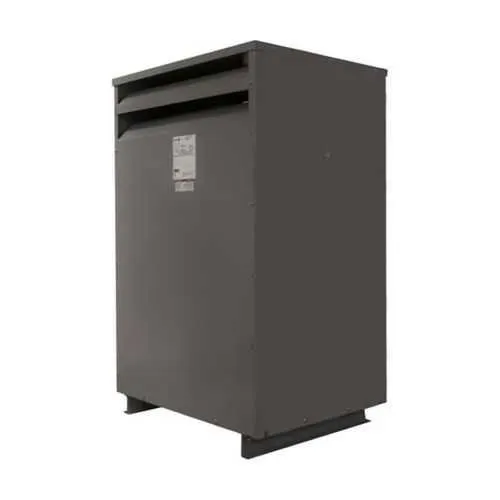

Eaton X29M28T22CUEENON Harmonic Transformer - 225 kVA
Part Number: X29M28T22CUEENON
Quick Summary
The Eaton Harmonic mitigating transformer delivers clean power for demanding PV and commercial loads, helping to stabilize nonlinear currents and protect sensitive equipment. Engineers often struggle to manage harmonic currents, tap versatility, and installation footprint while keeping costs predictable. Certification status for this model is listed as Contact Manufacturer; regional compliance details can be provided by Eaton and documented in its datasheets. With a 225 kVA rating and 208Y/120V secondary, it integrates with modern power management architectures to improve reliability, efficiency, and ease of commissioning in industrial environments. Copper windings, 225 kVA capability, and elevated insulation allow sustained operation in demanding environments, while two taps at +2.5% and four at -2.5% support load balancing across stages.
Product Information
Extended Description
X29M28T22CUEENON Eaton: Eaton Harmonic mitigating transformer, PV 208V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 150°C rise w/ 200°C insulation systeam, 225 kVA, Copper windings, EE, NON
Product Name
Eaton Harmonic mitigating transformer
Catalog Number
X29M28T22CUEENON
UPC
786680144929
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Certifications
Contact Manufacturer
Primary voltage
208 V
Secondary Voltage
208 Y/120 V
Volt ampere rating
225 kVA
Feature: Harmonic mitigation capability reduces harmonic distortion in nonlinear loads. Business Impact: Improves power quality, protects sensitive equipment, and lowers stray losses across the facility. Application: Particularly advantageous for PV inverters, switchgear ensembles, and close-coupled manufacturing lines where clean mains are essential for uptime and compliance with utility requirements. Feature: Copper windings and robust insulation deliver thermal resilience and long life. Business Impact: Higher temperature tolerance reduces derating and extends service life in hot industrial environments, lowering replacement costs. Application: Suitable for climate-controlled and harsh factory floors where ambient temperatures and duty cycles vary. Feature: Tap changer providing two taps at +2.5% and four taps at -2.5%. Business Impact: Ensures voltage stability under load fluctuations, reducing the risk of undervoltage or overvoltage events. Application: Critical in data centers, PV feeders, and manufacturing lines where voltage tolerance is tight. Feature: 225 kVA rating supports significant loads. Business Impact: Enables efficient distribution and fewer transformers in multi-load plants, improving overall footprint and maintenance costs. Application: Large commercial buildings, industrial facilities, and PV-driven sites. Feature: Compatibility with power management networks and EE core design. Business Impact: Robust performance with reliable operation and compatibility with SCADA/BMS interfaces, reducing installation risks. Application: Indoor industrial spaces and retrofit projects needing dependable power quality and straightforward wiring.
Get a Quick Quote for a Eaton X29M28T22CUEENON
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X29M28T22CUEENON?
Enquire Now
FAQs
The X29M28T22CUEENON is engineered for 208V primary systems with a 208Y/120V secondary, delivering clean, balanced power to sensitive equipment. It supports standard installation practices for Eaton power management products, including copper windings and copper-core design that tolerate typical industrial temps. Ensure proper clearance, venting, and correct tap selection: two taps at +2.5% and four at -2.5% help compensate voltage swings under load.
This unit is designed as a harmonic mitigating transformer, reducing non-linear harmonic currents in PV and commercial circuits; it preserves voltage stability, decreases stray losses, and extends equipment life. With 225 kVA rating and copper windings, it maintains consistent performance under peak loads. Installation in power management networks supports smoother energy delivery and lower maintenance costs.
Yes, the X29M28T22CUEENON is suitable for data centers, manufacturing floors, and PV-driven facilities where power quality and reliability are critical. With 208 V primary and 208Y/120 V secondary, it integrates with common electrical architectures, supports tight voltage control via taps, and aligns with power management strategies to minimize downtime and improve uptime across critical loads.
This model lists certifications as Contact Manufacturer in the datasheet; regional approvals may vary. To verify CE, UL, or other certifications applicable to your site, contact Eaton or your distributor for the latest documentation and test reports. They can provide certificates, conformity declarations, and installation guidance to ensure regulatory compliance.
Investing in this harmonic mitigating transformer can reduce energy losses from harmonic currents, improve equipment life, and lower maintenance costs by stabilizing voltage. Its robust copper windings and elevated insulation support long service intervals in industrial settings. While initial costs are higher than standard transformers, the measurable gains in reliability and power quality translate to lower downtime and faster project payback.
