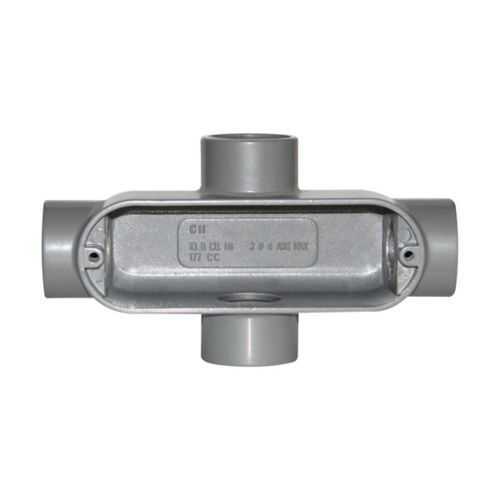

Eaton X35 Condulet Outlet Body - Rigid/IMC 1 in NEC/CEC
Part Number: X35
Quick Summary
The Eaton X35 Condulet Outlet Body is a rugged conduit outlet solution for rigid/IMC installations in industrial control panels and machine enclosures. It addresses field challenges such as sealing integrity, wiring access, and weight constraints that slow upgrades and increase labor costs. Certified for Ordinary/Non-Hazardous Locations and NEC/CEC standards, it provides dependable, code-compliant performance across typical manufacturing environments. Copper-free aluminum and a compact 1 inch trade-size design reduce installation complexity, boost handling, and lower total cost of ownership over the equipment lifecycle.
Product Information
Extended Description
X35 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, X shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
X35
UPC
662277008587
Product Length/Depth
6.47 in
Product Height
1.88 in
Product Width
1.74 in
Product Weight
0.62 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
X
Conduit type
Rigid/IMC
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - X35
Feature: Rigid/IMC compatibility. Business Impact: Enhances durability under vibration and physical stress, reducing maintenance and unexpected downtime. Application: Ideal for control panels and equipment housings in manufacturing and process environments. Feature: Copper-free aluminum construction. Business Impact: Lower weight and improved corrosion resistance translate to easier handling, faster installs, and reduced freight costs. Application: Suitable for damp or corrosive environs found in industrial facilities. Feature: X-shaped body with 1" trade size. Business Impact: Standardized mounting and streamlined conduit routing minimize part variety and installation steps. Application: Supports consistent panel layouts in high-mpeed assembly lines. Feature: Series 5 family compatibility. Business Impact: Simplifies stocking and cross-compatibility across the Condulet lineup, speeding project onboarding. Application: Useful for upgrades or retrofits within existing Series 5 installations. Feature: NEC/CEC alignment and Ordinary Location rating. Business Impact: Ensures regulatory compliance and reduces risk during audits, lowering project risk and rework. Application: Suitable for everyday plant environments where non-hazardous ratings apply.
Get a Quick Quote for a Eaton X35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X35?
Enquire Now
FAQs
To install the X35, align the conduit with the 1 inch trade opening, secure with the appropriate IMC mounting hardware, and verify a tight seal with gasket material suitable for ordinary location service. Ensure the enclosure interior is clean and routed conduits follow the Series 5 pattern for consistent fit and seal integrity. This reduces rework and speeds panel assembly.
The X35 combines a copper-free aluminum body with Series 5 geometry, delivering lightweight strength and corrosion resistance appropriate for ordinary location environments. Its NEC/CEC compliance ensures code-conformant installation, while the material choice lowers total cost of ownership through reduced maintenance and longer service life in typical factory settings.
The X35 is specified for Ordinary/Non-Hazardous Locations, making it well-suited for indoor panels, equipment enclosures, and machine housings in controlled environments. For outdoor use, verify enclosure protection ratings and consider additional sealing or weatherproof accessories where exposure conditions demand extra protection.
X35 conforms to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. Related Canadian certifications are referenced in Eaton literature. For formal documentation, consult the UL certification reports and Eaton specification sheets to confirm applicability to your regional compliance requirements.
The copper-free aluminum body offers corrosion resistance with reduced weight, improving handling and installation speed. Faster installs cut labor costs, while lower maintenance needs extend service intervals. In addition, Series 5 compatibility simplifies stocking and future upgrades, contributing to lower total cost of ownership across plant lifecycle projects.
