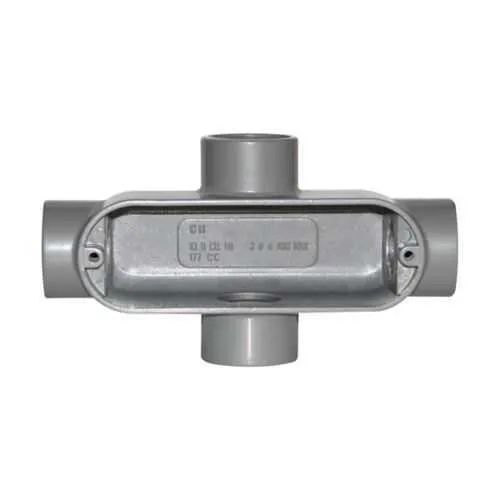

Eaton X45 Conduit Outlet Body - Series 5, Copper-free Al
Part Number: X45
Quick Summary
The Eaton X45 Conduit Outlet Body provides a rugged outlet solution for rigid/IMC conduits used in industrial enclosures. Facilities teams often grapple with corrosion resistance, mounting complexity, and ensuring NEC/CEC compliance in harsh environments. Key certifications include NEC/CEC compliance, Ordinary/Non-Hazardous Area classification, and UL certification for Canada, which help simplify audits and reduce rework. Coupled with its copper-free aluminum construction and 1-1/4 inch trade size, it enables lighter, faster installations and safer terminations across panel builds. Designed for compatibility with Eaton's Condulet Series 5 catalog, the X45 supports scalable deployments while delivering dependable long-term performance.
Product Information
Extended Description
X45 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, X shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
X45
UPC
662277008594
Product Length/Depth
8.25 in
Product Height
2.51 in
Product Width
2.49 in
Product Weight
1.18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
X
Conduit type
Rigid/IMC
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - X45
Copper-free aluminum construction reduces weight and resists corrosion, cutting handling time and enabling faster field installs. This translates to lower total installed cost and easier compliance with weight limits on overhead runs. The X45’s X-shaped Series 5 design aligns with a 1-1/4 inch trade size, simplifying assembly and reducing misalignment risk, which minimizes rework in busy wiring floors. Rigid/IMC conduit compatibility ensures robust mechanical protection in demanding environments, supporting safer terminations and longer service life. Its compact dimensions—8.25 in length, 2.49 in width, 2.51 in height—and a weight of 1.18 lb facilitate efficient panel packing and service accessibility, reducing labor hours during installation and maintenance. Certifications and NEC/CEC compliance help with audits and compliance in ordinary locations, speeding approvals on job sites.
Get a Quick Quote for a Eaton X45
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X45?
Enquire Now
FAQs
The X45 is designed for 1-1/4 inch trade size conduits and is compatible with rigid/IMC conduit systems. This makes it ideal for standard industrial installations where a reliable, medium-sized outlet body is required.
The X45 adheres to NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. It also has UL-related certification coverage for Canada, simplifying regulatory compliance and vendor audits on cross-border projects.
No. The X45 is specified for Ordinary/Non-Hazardous locations and is not rated for hazardous (Classified) environments. For hazardous locations, select products with appropriate explosion-proof or intrinsic safety certifications.
The copper-free aluminum construction reduces weight and corrosion risk, easing handling and installation. Its Series 5 X-shaped design simplifies alignment for 1-1/4 inch conduits, supporting faster assembly and safer terminations in compact control panels and equipment housings.
Official materials are available from Eaton, including the Crouse-Hinds Series 5 brochure, catalog pages, Canadian certification listings, and the X45 specification sheet. Direct links provide downloadable PDFs for quick engineering reference and job-site validation.
