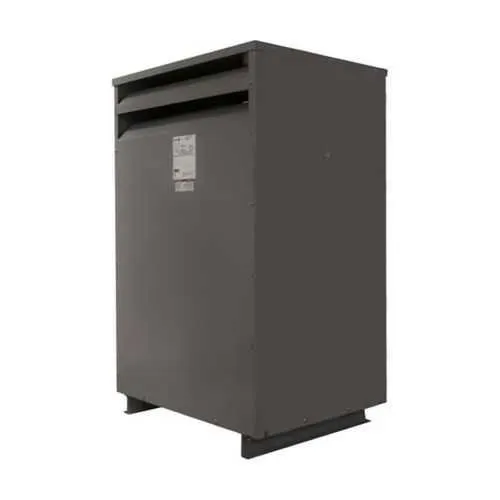

Eaton X48M28F49CUEENONLS52 Harmonic transformer - 150 kVA
Part Number: X48M28F49CUEENONLS52
Quick Summary
Eaton Harmonic mitigating transformer delivers clean, balanced power for 480 V distribution in PV facilities and industrial plants. Engineers often confront harmonic distortion, voltage fluctuations, and unexpected equipment wear that drive downtime and higher energy costs. This unit delivers 150 kVA with a 480 V primary and 208Y/120 V secondary, copper windings, and a 115°C rise, with taps at +2.5% and -2.5% to tune voltage under varying loads. By integrating with power management and distribution systems, it supports reliability, efficiency, and regulatory compliance for modern facilities. It’s a robust choice for engineers seeking long-term value, scalable installation, and trusted Eaton support in industrial automation environments.
Product Information
Extended Description
X48M28F49CUEENONLS52 Eaton: Eaton Harmonic mitigating transformer, PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 115°C rise, 150 kVA, Copper windings, EE, NONLS52
Product Name
Eaton Harmonic mitigating transformer
Catalog Number
X48M28F49CUEENONLS52
UPC
786680139536
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Certifications
Contact Manufacturer
Primary voltage
480 V
Secondary Voltage
208 Y/120 V
Volt ampere rating
150 kVA
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton Specification Sheet - X48M28F49CUEENONLS52
Tap-enabled voltage regulation provides precise voltage compensation with 2 taps at +2.5% and 4 taps at -2.5%, reducing downstream voltage stress and extending equipment life in demanding manufacturing environments. Copper windings deliver lower resistance and improved thermal performance, boosting efficiency and reducing cooling energy costs in hot plants. The 115°C rise rating supports reliable operation in elevated ambient conditions, minimizing derating and maintenance needs in data centers or automated facilities. An EE core design reduces core losses and improves overall efficiency, translating to measurable energy savings over time. Compatibility with standard low-voltage distribution panels and Eaton’s support network simplifies installation, reduces total project time, and enhances ongoing maintenance. Addressing common objections, this transformer also offers robust durability and easy integration with PV systems, manufacturing lines, and commercial buildings to protect capital investments.
Get a Quick Quote for a Eaton X48M28F49CUEENONLS52
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton X48M28F49CUEENONLS52?
Enquire Now
FAQs
Plan for proper enclosure, adequate clearance for cooling, and compliant grounding. Ensure the 480 V supply and 208Y/120 V secondary wiring are correctly terminated and protected. Verify tap settings (+2.5% and -2.5%) are chosen to maintain stable voltage under expected load variations and integrate with existing power management and distribution panels.
Primary voltage is 480 V, secondary voltage is 208Y/120 V, and the volt-ampere rating is 150 kVA. The unit uses copper windings and an EE core, with taps available to adjust voltage by +2.5% or -2.5% to match loading conditions.
Yes. It is designed to mitigate harmonics in 480 V distribution networks, making it well-suited for PV integration, manufacturing floors, and other industrial automation environments. The 150 kVA rating supports medium-scale power needs, while copper windings and robust construction support reliability in demanding facilities.
Current certifications are listed as 'Contact Manufacturer' for this model. To verify CE, SIL, IP, or UL certifications, contact Eaton directly or consult the official datasheets. Confirm compliance with local electrical codes and project requirements before procurement or installation.
Harmonic mitigation lowers losses and reduces stress on downstream equipment, contributing to improved efficiency and longer asset life. ROI depends on harmonic levels, energy costs, and application uptime. Maintenance is typically routine, focusing on thermal performance and connection integrity; Eaton’s support network can assist with commissioning and ongoing service.
