Eaton X75M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: X75M
Quick Summary
Eaton X75M conduit outlet body provides Form 5 termination for 3/4\" conduit in industrial electrical enclosures. This rugged malleable-iron fitting is designed to streamline enclosure wiring while meeting code requirements. Manufacturers and maintenance teams often struggle with moisture ingress, misaligned fittings, and inconsistent terminologies when selecting conduit bodies, which can drive downtime and rework. The X75M version supports NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, with UL Canada certification resources available for traceability. By leveraging the Form 5 geometry and standard catalog references, engineers can speed design reviews, simplify stocking, and achieve predictable installation times. In practice, this translates to safer assemblies, lower total cost of ownership, and faster project delivery.
Product Information
Extended Description

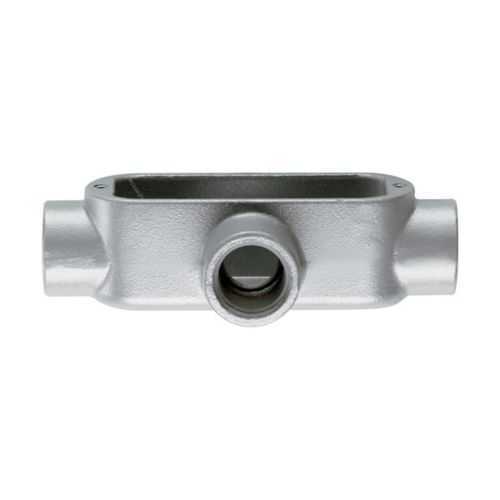

X75M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, X shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
X75M
UPC
784564003010
Product Length/Depth
6.08 in
Product Height
2.93 in
Product Width
1.97 in
Product Weight
1.72 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
X
Trade size
3/4"
Material
Malleable iron
Eaton Crouse-Hinds X75M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - X75M
Malleable iron construction provides superior durability and vibration resistance, translating to longer service life in demanding industrial environments. This reduces maintenance intervals and part-replacement costs, improving overall equipment uptime. The X75M's Form 5 geometry for a 3/4\" trade size streamlines wiring by delivering a clear, right-angle termination that minimizes field adjustments and miswiring risk. In practice, teams experience faster installations and lower apprenticeship time on site, with reduced risk of conduit misalignment during panel assembly. The Form 5 Condulet family compatibility ensures interchangeability across standard catalogs, simplifying spare-part stocking and procurement across multiple projects. Compliance with NEC/CEC and Ordinary/Non-Hazardous Location ratings gives engineers confidence in regulatory alignment and safe operation in non-hazardous settings. The compact 6.08 in length, 2.93 in height, and 1.97 in width, weighing 1.72 lb, helps with enclosure space planning and shipment efficiency, enabling more predictable project timelines. Availability of CAD drawings and catalog pages accelerates design validation, vendor reviews, and BIM workflows, reducing design-to-fabrication time and enabling smoother handoffs to installation teams.
