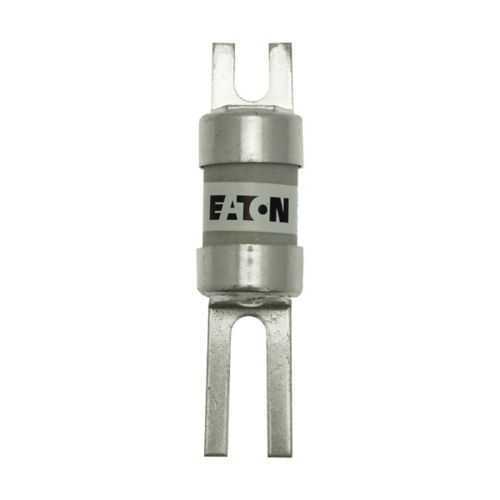

Eaton XF5 Fuse - CE
Part Number: XF5
Quick Summary
Eaton XF5 fuse is a low-voltage British-standard fuse designed to protect control panels and distribution circuits. Engineers often struggle to select a time-delay fuse that balances nuisance trips with reliable fault protection, leading to unnecessary downtime. This product carries CE certification and aligns with British-standard form factors to simplify compliance in European and UK panels. By leveraging the XF5's compact 56 mm depth and 15x15 mm body along with a 5 A rating, you gain space efficiency, faster installation, and predictable protection for critical loads. This Bussmann series low voltage fuse supports standardization, reduces spare parts variety, and minimizes maintenance overhead in modern automation environments. It speaks to the needs of procurement and engineering teams alike.
Product Information
Extended Description
XF5 Eaton: Eaton Bussmann series low voltage british standard fuse, 5A, 15 x 58 mm, ESI 12-6
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
XF5
Model Code
5A TIME FUSE LINKS
UPC
051712534048
EAN
5027590514910
Product Length/Depth
56 mm
Product Height
15 mm
Product Width
15 mm
Product Weight
14.2 g
Certifications
CE
Feature: 5 A time-delay fuse rating provides selective protection for inductive loads and motors. Business Impact: Reduces nuisance trips while safeguarding equipment, cutting unplanned downtime and extending panel life. Application: Ideal for control panels in automation lines and distribution schemes where load profiles include motor starts. Feature: Compact 56 mm depth with a 15x15 mm cross-section fits tight enclosures and standard fuse holders. Business Impact: Maximizes panel space and simplifies retrofits, speeding installation and maintenance. Application: Preferred in compact automation cabinets and retrofit projects. Feature: 15x58 mm form factor aligns with British Standard fuse dimensions. Business Impact: Streamlines procurement and spare-part stocking, lowering total cost of ownership. Application: European and UK panel builds requiring standardization. Feature: CE certification and Bussmann series branding assure regulatory compliance and traceability. Business Impact: Improves audit readiness and supplier reliability, reducing compliance risk. Application: Automotive, packaging, and process industries seeking certified protection. Feature: Lightweight design at 14.2 g facilitates handling and reduces shipping costs. Business Impact: Lower logistics costs and easier field replacements. Application: On-site maintenance and field service where weight matters.
Get a Quick Quote for a Eaton XF5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton XF5?
Enquire Now
FAQs
The XF5 is a 5A time-delay fuse designed for 15x58 mm holders with a 56 mm depth and 15x15 mm footprint. It fits standard British-standard fuse bases, enabling straightforward replacement in active panels. Use compatible holders, ensure correct orientation (non-polarized), and verify the panel cavity can accommodate the 56 mm depth to avoid contact with adjacent components.
XF5 is a 5A time-delay fuse within Eaton’s Bussmann series for low-voltage circuits. It features a 15x58 mm body, 56 mm length, 15 mm width and height, and weighs 14.2 g. It carries CE certification and uses catalog XF5 with model code 5A TIME FUSE LINKS, making traceability straightforward for panels and spares.
Yes. The XF5 is designed as a British-standard low-voltage fuse with a 5A rating and time-delay characteristic, ideal for protecting control panels and small distribution circuits in European machinery. Its compact form factor and CE certification support compliant, reliable protection while minimizing nuisance trips during motor starts and inductive load events.
XF5 lists CE certification, indicating conformity with EU safety requirements. The fuse also adheres to British-standard form factors, simplifying physical compatibility in UK and European panels. While other certifications aren’t listed in the data, CE and the British-standard sizing help streamline regulatory reviews, audits, and supplier qualification for standard low-voltage protection devices.
You can access the XF5 catalog in the CA134002EN Eaton Bussmann low-voltage fuses collection at Eaton’s site, which provides the official product documentation. For visual guidance on fuse links, view the Eaton Bussmann Red Spot fuse links video available through Eaton’s multimedia resources. These assets support proper selection, installation, and maintenance decisions.
