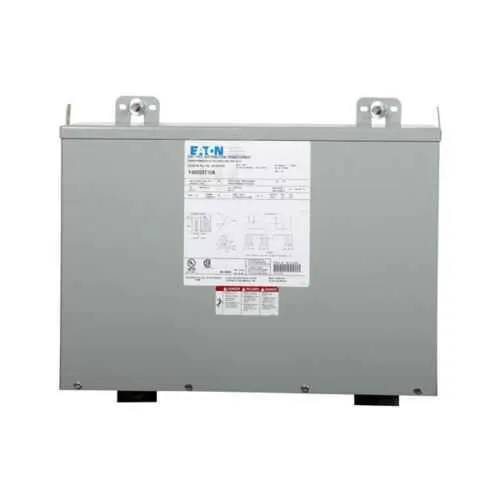

Eaton Y60G28T09N Encapsulated Transformer - UL Listed
Part Number: Y60G28T09N
Quick Summary
Eaton general purpose encapsulated transformer is designed to reliably convert 600 V primary power to 208Y/120 V for industrial controls and distribution panels. This solves a common pain point by ensuring consistent voltage to PLCs, drives, and sensors in environments with moisture or dust. UL Listed and a rugged NEMA 3R enclosure support indoor-outdoor installations, while 60 Hz three-phase operation matches most plant power systems. The aluminum windings reduce weight and improve heat dissipation, contributing to easier handling and lower installation costs. A -5% FCBN tap option enables voltage tailoring on site, reducing commissioning time and field rework risk. This model aligns with Eaton warranties and service support for dependable power where you need it most.
Product Information
Extended Description
Y60G28T09N Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 103, 60 Hz, three-phase, 600 V, 208Y/120 V, 2 at -5% FCBN, 115 °C rise, 9 KVA, indoor-outdoor, 70B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y60G28T09N
UPC
786680111952
Product Length/Depth
10.01 in
Product Height
15.9 in
Product Width
16.93 in
Product Weight
184 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
103
Tap size
2 at -5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
70B
Frequency rating
60 Hz
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Temperature rise
115 °C rise
Volt ampere rating
9 kVA
Weathershield
Indoor-Outdoor
Robust enclosure and environmental resilience: The NEMA 3R rating combined with the indoor-outdoor capability provides dependable operation in both controlled environments and harsher plant areas, reducing the need for multiple enclosures and simplifying site planning. This translates to lower total installed cost and fewer installation constraints for control panels and distribution boards. Three-phase 60 Hz operation and a 9 kVA rating ensure compatibility with common industrial loads, enabling straightforward panel upgrades and scalable motor control or PLC power supply without over- or under-sizing. Aluminum windings reduce transformer weight, aiding handling during installation and on-site service while improving thermal performance for sustained loads in hot facilities. The 70B wiring connection and 2 at -5% FCBN taps offer flexible field wiring and voltage tailoring, speeding commissioning and improving system coordination. UL Listed certification supports regulatory compliance and streamlined audits, delivering tangible life-cycle cost savings.
Get a Quick Quote for a Eaton Y60G28T09N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y60G28T09N?
Enquire Now
FAQs
The transformer uses a NEMA 3R enclosure and an indoor-outdoor rating, enabling installation in outdoor panels and damp or dusty environments as well as clean indoor spaces. With UL Listed certification and aluminum windings, it resists corrosion and moisture while maintaining electrical performance. Compatible with 60 Hz, three-phase systems and loads from 600 V to 208Y/120 V.
Key specs include 9 kVA, three-phase configuration, 60 Hz operation, 600 V primary, 208Y/120 V secondary, 115 °C rise, and a tap option of 2 at -5% FCBN. Enclosure is NEMA 3R, with aluminum coil construction and a 70B wiring connection. Warranty follows Eaton policy, with UL Listed safety certification.
Yes. The NEMA 3R enclosure and indoor-outdoor rating make it suitable for outdoor panels, weather-exposed locations, and unheated spaces. UL Listed certification supports compliance in many jurisdictions, while the transformer’s rugged construction helps maintain performance under environmental stressors such as moisture and dust ingress.
UL Listed certification verifies safety compliance for electrical equipment, which simplifies regulatory approvals and audits. The NEMA 3R enclosure further confirms weather-resistant protection suitable for outdoor or semi-exposed installations. Together, these certifications support risk mitigation, ensure safer operation of control panels and distribution boards, and align with industry standards for reliability in industrial environments.
Maintenance requirements are minimal due to a sealed, encapsulated design and robust enclosure, contributing to longer service intervals. The 9 kVA rating provides scalable headroom for PLCs, drives, and sensors, helping avoid premature replacements. The -5% FCBN taps ease commissioning and reduce field rework, while UL Listed compliance supports smoother audits and potentially lower total cost of ownership over the asset life.
