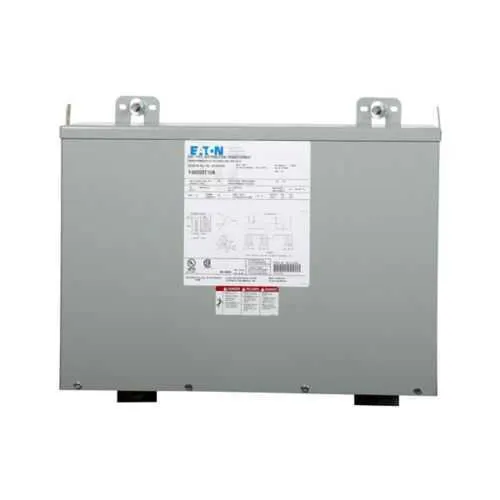

Eaton Y60G28T15N General-purpose Encapsulated Transformer - UL Listed
Part Number: Y60G28T15N
Quick Summary
Eaton General-purpose encapsulated transformer delivers reliable power isolation for industrial control panels and distribution in harsh environments. For engineers juggling space constraints, harsh conditions, and downtime, this model offers a robust solution with a compact footprint and standard 70B wiring. Critical compliance includes UL Listed safety certification and a NEMA 3R enclosure for indoor-outdoor service, ensuring rugged performance across demanding environments. With a 15 kVA rating, three-phase 60 Hz operation, and a primary 600 V with a secondary 208Y/120 V, it supports scalable power distribution while helping to reduce installation complexity and lifecycle costs.
Product Information
Extended Description
Y60G28T15N Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 95, 60 Hz, three-phase, 600 V, 208Y/120 V, 2 at -5% FCBN, 115 °C rise, 15 KVA, indoor-outdoor, 70B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y60G28T15N
UPC
786680111969
Product Length/Depth
10.52 in
Product Height
17.38 in
Product Width
20 in
Product Weight
254 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
95
Tap size
2 at -5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
70B
Frequency rating
60 Hz
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Weathershield
Indoor-Outdoor
Feature → Three-phase, 60 Hz, 15 kVA rating; Business Impact → Handles mid-size loads efficiently, enabling fewer transformers in a bank and reducing total system footprint; Application → Ideal for control panels and machine integrations with consistent performance. Feature → NEMA 3R outdoor-indoor enclosure with aluminum coil; Business Impact → Provides rugged, weather-resistant reliability and long-term durability, lowering maintenance costs; Application → Suitable for indoor-outdoor installations in varied environments. Feature → Tap size of 2 at -5% FCBN; Business Impact → Flexible voltage matching to compensate for supply variations, reducing voltage-related issues; Application → Useful where line conditions fluctuate. Feature → 70B wiring connection; Business Impact → Standardized, easy-to-field connections that speed up installation and service, minimizing commissioning time; Application → Supports common wiring practices in industrial settings. Feature → UL Listed safety certification; Business Impact → Ensures compliance with safety standards and procurement confidence; Application → Preferred choice for regulated facilities and new-build projects.
Get a Quick Quote for a Eaton Y60G28T15N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y60G28T15N?
Enquire Now
FAQs
Install the Y60G28T15N using a sturdy, vibration-free mounting surface compatible with its 254 lb weight. Mount in a location suitable for indoor-outdoor use per the NEMA 3R rating, ensure proper clearance for cooling, and wire using the 70B connection with the two -5% FCBN taps as needed to match supply voltage. Follow the manufacturer’s datasheet and Eaton’s installation notes to meet UL requirements.
The transformer is a three-phase unit rated for 60 Hz operation with a 600 V primary and 208Y/120 V secondary. It delivers 15 kVA and uses aluminum coil material. It features a 115 °C rise, 70B wiring, and two taps at -5% FCBN, with a NEMA 3R enclosure for indoor-outdoor environments.
Yes. The unit uses a NEMA 3R enclosure designed for indoor-outdoor service and features aluminum coil construction for durability, making it suitable for areas with exposure to dust, moisture, or variable conditions while maintaining electrical safety and reliability.
This transformer is UL Listed, indicating compliance with recognized safety standards for electrical equipment. In addition, the NEMA 3R enclosure design supports safe operation in mixed environments. These certifications matter for regulatory compliance, safety procurement, and reducing risk in critical power distribution applications.
Eaton provides a warranty per policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. For service, replacement parts, and technical guidance, contact Eaton support or your procurement channel to maximize uptime and ensure ongoing performance.
