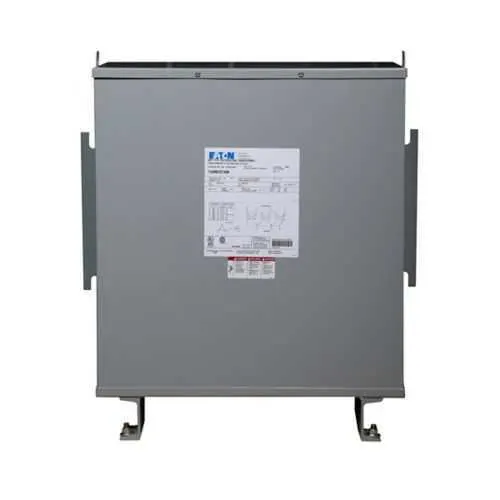

Eaton Y60M28T45N General-purpose encapsulated transformer - UL Listed
Part Number: Y60M28T45N
Quick Summary
Eaton Y60M28T45N general-purpose encapsulated transformer delivers reliable power for industrial control panels and distribution systems. Engineers face challenges with space, durability, and weather exposure in harsh facilities. This model is UL Listed and designed to meet indoor-outdoor NEMA 3R requirements, with aluminum windings and a 45 kVA rating. By combining rugged construction with precise voltage regulation (208Y/120 V) and a three-phase 60 Hz profile, it supports efficient, code-compliant power distribution for industrial automation. The unit’s compact footprint, accessible tap settings, and robust enclosure reduce field wiring complexity and downtime, delivering measurable ROI through improved uptime and easier maintenance.
Product Information
Extended Description
Y60M28T45N Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 244, 60 Hz, three-phase, 600 V, 208Y/120 V, 2 at +2.5% FCAN, 4 at -2.5% FCBN, 115 °C rise, 45 KVA, indoor-outdoor, 84B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y60M28T45N
UPC
786680131400
Product Length/Depth
14.66 in
Product Height
28.15 in
Product Width
26.58 in
Product Weight
660 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
244
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
84B
Frequency rating
60 Hz
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Temperature rise
115 °C rise
Volt ampere rating
45 kVA
Weathershield
Indoor-Outdoor
NEMA 3R enclosure and corrosion-resistant aluminum coil: The rugged housing protects critical windings in mixed indoor-outdoor environments, reducing field service calls and extending service life. This is essential for panel-mounted transformers in production lines and outdoor substations. Three-phase, 60 Hz operation with 600 V primary and 208Y/120 V secondary: Enables seamless integration with standard industrial power systems and existing switchgear, lowering the need for custom solutions and speeding up install times. Tap settings: 2 at +2.5% FCAN, 4 at -2.5% FCBN provide voltage regulation to accommodate minor supply fluctuations without load rebalancing, improving panel stability and equipment performance. Aluminum windings and 115 °C rise: Improve thermal efficiency and enable higher continuous loading with predictable heat management, boosting overall efficiency. UL Listed certification and Weathershield indoor-outdoor capability: Simplify procurement while ensuring compliance with safety standards and audits, reducing risk during inspections. Wiring compatibility: 84B connections and a 244 frame design align with common panel layouts, minimizing field rework and accelerating installation.
Get a Quick Quote for a Eaton Y60M28T45N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y60M28T45N?
Enquire Now
FAQs
Plan for a mounting footprint compatible with the 244 frame and 28.15 inch height. Use standard panel wiring with 84B connections and observe the indoor-outdoor NEMA 3R enclosure. Configure taps as needed: 2 at +2.5% FCAN and 4 at -2.5% FCBN, then verify voltage balance at 208Y/120 V secondary.
Key specs: 45 kVA rating, 60 Hz, three-phase, 600 V primary, 208Y/120 V secondary. Aluminum windings and 115 °C rise. Indoor-outdoor service with a 244 frame and 84B wiring. UL Listed compliance adds assurance for safety and performance in industrial panels.
Yes. It features a NEMA 3R enclosure with indoor-outdoor compatibility and Weathershield design, enabling reliable operation on factory floors, outdoors near equipment hubs, or in service bays while protecting against rain, dust, and corrosion.
The transformer is UL Listed, confirming safety and performance compliance. Warranty follows Eaton policy 25-000, offering one year from installation or eighteen months from shipment, whichever comes first, covering manufacturing defects and standard service support.
Voltage regulation via taps reduces flicker from supply swings, extending motor life and reducing trips. The robust NEMA 3R enclosure, aluminum windings, and 115 °C rise support sustained loads with minimal derating, improving panel reliability and lowering maintenance costs over the life of the installation.
