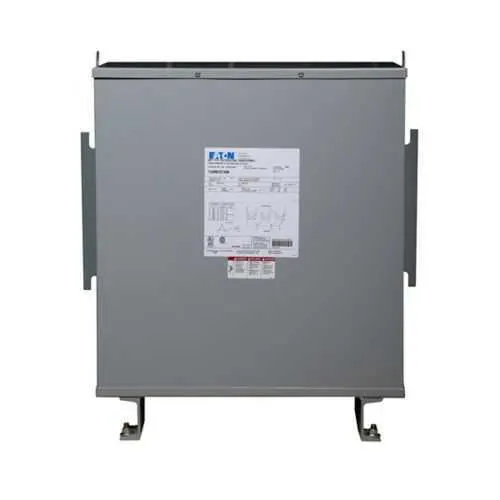

Eaton Y60M34T30A Transformer - UL Listed, 30 kVA
Part Number: Y60M34T30A
Quick Summary
Eaton Y60M34T30A is a general purpose encapsulated transformer designed for indoor-outdoor industrial power distribution. This solution helps engineers simplify installations and reduce cabinet clutter while maintaining strict regulatory compliance. UL Listed, NEMA 3R enclosure, and 115 °C rise ratings provide rugged reliability in harsh environments. Three-phase operation at 60 Hz with a 600 V primary and 400Y/231 V secondary supports modern control panels, motor drives, and distribution centers. The design also emphasizes serviceability and long-term performance, with aluminum windings and rugged encapsulation to withstand vibration and heat. This combination delivers measurable efficiency gains, easier maintenance, and a clear path to scalable power infrastructure.
Product Information
Extended Description
Y60M34T30A Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 243, 60 Hz, three-phase, 600 V, 400Y/231 V, 2 at +2.5% FCAN, 4 at -2.5% FCBN, 115 °C rise, 30 KVA, indoor-outdoor, 84N
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y60M34T30A
UPC
786680099557
Product Length/Depth
10.52 in
Product Height
17.38 in
Product Width
20 in
Product Weight
508 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model A
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
243
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
84N
Frequency rating
60 Hz
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
400Y/231 V
Temperature rise
115 °C rise
Volt ampere rating
30 kVA
Weathershield
Indoor-Outdoor
Feature: General specifications include three-phase operation, 60 Hz frequency, primary 600 V and secondary 400Y/231 V, with a 30 kVA rating. Business Impact: Enables compact, dependable power transfer for mid-sized industrial loads while supporting standardized voltage conversion and system harmonization. Application: Suitable for control panels, machine tools, and distribution boards where consistent voltage regulation is required. Feature: NEMA 3R enclosure and aluminum coil construction. Business Impact: Provides outdoor durability and corrosion resistance with reduced weight for easier handling and installation. Application: Ideal for indoor-outdoor installations in harsh environments like manufacturing floors and outdoor equipment rooms. Feature: Tap settings 2 at +2.5% FCAN and 4 at -2.5% FCBN. Business Impact: Improves voltage regulation and load balancing across fluctuating supply conditions, lowering risk of equipment nuisance tripping. Application: Critical when powering sensitive PLCs and motor drives in varied supply environments. Feature: 10.52 in length, 17.38 in height, 20 in width, 508 lb weight. Business Impact: Clear footprint and weight specifications enable precise planning for panel layouts and crane-accessible installs. Application: Factory floors and switchgear rooms with limited mounting space. Feature: Weathershield indoor-outdoor capability, 115 °C rise, UL Listed, and 30 kVA rating. Business Impact: Aligns with regulatory requirements while delivering robust performance under continuous loading. Application: Essential for rugged control architectures in industrial facilities. Industry context: Aluminum windings and encapsulated design reflect current best practices for reliability and energy efficiency in modern automation systems, supporting faster commissioning and reduced maintenance.
Get a Quick Quote for a Eaton Y60M34T30A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y60M34T30A?
Enquire Now
FAQs
Plan the panel layout to accommodate the 20x17.38x10.52 in footprint and 508 lb weight. Use 84N wiring, tap connections of 2 at +2.5% FCAN and 4 at -2.5% FCBN for voltage regulation, and ensure the enclosure meets NEMA 3R requirements for indoor-outdoor placement.
The transformer provides a 600 V primary and a 400Y/231 V secondary across a three-phase, 60 Hz system, enabling direct interface with common industrial equipment while maintaining suitable voltage regulation for sensitive loads.
Yes. It features an NEMA 3R enclosure and Weathershield capabilities, designed for reliable operation in both indoor and outdoor industrial settings, with a 115 °C rise rating for robust continuous service.
The Y60M34T30A is UL Listed, ensuring compliance with safety standards for electrical equipment. This certification supports regulatory acceptance in many regions and simplifies maintenance contracts and audits.
Eaton provides a one-year warranty from installation or 18 months from shipment, whichever occurs first, under policy 25-000. Routine maintenance and support services are available through Eaton's authorized service channels to maximize uptime.
