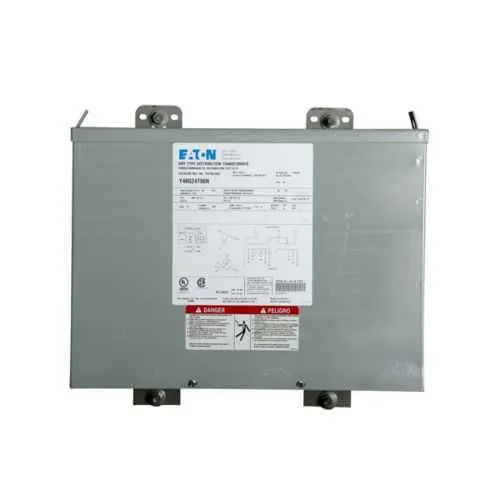

Eaton Y85N22F06XES General-Purpose Transformer UL Listed
Part Number: Y85N22F06XES
Quick Summary
The Eaton general purpose encapsulated transformer powers controls in industrial facilities, delivering reliable voltage conversion for three-phase systems. Many plants struggle with space, heat, and maintenance costs, making dependable transformer performance a critical line item. This model features a rugged NEMA 3R enclosure and aluminum windings that resist harsh indoor-outdoor environments, reducing service calls and downtime. UL Listed certification supports safety compliance across regulated installations, while its indoor-outdoor design suits both control rooms and exposed panels. By aligning with common voltage rails and a compact footprint, this transformer helps optimize panel density and energy efficiency, supporting streamlined procurement and faster project commissioning in automation and power distribution applications.
Product Information
Extended Description
Y85N22F06XES Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 96, 50-60 Hz, three-phase, 380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 240 V, 120 V, NONE, 115 °C rise, 6 KVA, indoor-outdoor, S452N2
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y85N22F06XES
UPC
786685199092
Product Length/Depth
9.42 in
Product Height
16.19 in
Product Width
29.68 in
Product Weight
318 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
96
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
S452N2
Frequency rating
50-60 Hz
Phase
Three-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
240 V, 120 V
Temperature rise
115 °C rise
Volt ampere rating
6 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
Feature: 6 kVA power rating combined with a 50–60 Hz, three-phase design provides ample headroom for typical control panels. Business impact: reduces the need for multiple smaller transformers, cuts wiring complexity, and improves system efficiency. Application: ideal for machine tools, automation controllers, and distributed power rails in industrial panels. Feature: Aluminum coil material with electrostatically shielded construction enhances dielectric strength and EMI suppression. Business impact: lowers soft faults from noise, improves PLC and drive performance, and extends mean time between maintenance. Application: suitable for servo drives, CNCs, and intelligent sensors within harsh factory environments. Feature: NEMA 3R enclosure and indoor-outdoor ratings deliver robust protection against dust, moisture, and temperature swings. Business impact: reduces enclosure breaches, minimizes downtime, and enables reliable outdoor installations. Application: panel cabinets on shop floors, exterior switchgear, and control rooms exposed to variable conditions. Feature: Wiring connection defined as S452N2 with no taps, plus 380–480 V primary and 120/240 V secondary. Business impact: simplifies wiring, reduces installation errors, accelerates commissioning, and improves consistency across installations. Application: straightforward integration in new builds and retrofit projects with standard control panels. Feature: UL Listed certification and Eaton’s warranty provide safety confidence and predictable support. Business impact: lowers procurement risk, simplifies vendor management, and supports compliant maintenance programs. Application: procurement in regulated facilities prioritizing safety, traceability, and long-term ROI in power distribution.
Get a Quick Quote for a Eaton Y85N22F06XES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y85N22F06XES?
Enquire Now
FAQs
Install the Y85N22F06XES on a stable surface with adequate clearance for service and airflow. Use the S452N2 wiring connection to link 380–480 V primary and 120/240 V secondary loads. Mount it within a compliant NEMA 3R location and ensure proper grounding and UL Listed safety requirements are observed for safe panel integration.
The transformer operates at 50–60 Hz with a three-phase design. Primary voltages available are 380, 400, 415, 440, 460, and 480 V, while the secondary outputs are 120 V and 240 V. It is a 6 kVA unit with aluminum windings and electrostatic shielding to reduce EMI.
Yes. It utilizes a NEMA 3R enclosure and is rated for indoor-outdoor use, with an electrostatically shielded aluminum winding design. This combination supports reliable operation in exposed panel locations, reduces weather-related risk, and helps maintain control system performance in varying factory conditions.
The transformer is UL Listed, confirming compliance with safety standards for electrical equipment. It features an indoor-outdoor (NEMA 3R) enclosure and is designed for 50–60 Hz, three-phase operation. While CE and IP ratings are not specified in the data, UL Listing and NEMA 3R protection provide robust regulatory and environmental assurances.
The 6 kVA unit with a rugged NEMA 3R enclosure minimizes weather-related maintenance and enclosure breaches, reducing downtime. Aluminum windings and electrostatic shielding improve reliability by limiting EMI disturbances. A UL Listed status and a one-year warranty (18 months from shipment) simplify procurement and risk management, delivering predictable long-term ROI in power distribution for automation projects.
